Oracle Sun Fire X3-2L / X4270 M3 Server

REQUEST A PRICE QUOTE:

Brand:	Oracle / Sun Microsystems
Condition:	Refurbished and new (limited availability)
Availability:	Contact
Shipping Area:	Worldwide to most countries
Shipping Method:	Fedex (most orders), UPS, DHL, Freight Courier
Price:	Please use the quote form above for quick pricing
Payment:	Credit Card, Check, Net Terms (oac), Wire Transfer (required for international orders)
Guarantee:	All items are tested by Oracle trained technicians & backed by a 100% warranty
Questions?	Don’t hesitate to contact us with any questions regarding compatibility or other product info and requests. Our website represents only a fraction of our full inventory. Please reach out with your full requirements

Specs and Information:

Processor
Number	Two Quad-Core, 6-Core, or 8-Core
Architecture	Type: Intel Xeon E5-2600 family
CPUs	Intel 2.4GHz Quad-Core Xeon E5-2609 (10MB, 80W) Intel 2.5GHz 6-Core Xeon E5-2640 (15MB, 95W) Intel 2.2 GHz 8-Core Xeon E5-2660 (20MB, 95W) Intel 2.9GHz 8-Core Xeon E5-2690 (20MB, 135W)
Cache	L1: 32KB Instruction and 32KB data L1 cache per core L2: 256KB shred data and instruction L2 cache per core L3: Up to 20MB shared inclusive L3 cache per processor
Main Memory
Capacities	Total DIMM slots: 16 DIMM type: DDR3 1600MHz Registered DIMMs DIMM size: 8GB 1600MHz or16GB 1600MHz Maximum capacity: 512GB (when configured with 32GB DIMMs)
Standard Integrated Interfaces
Network	Supports Four 100/1000/10000 Base-T Ethernet Ports (100 at full-duplex only)
Network Management	One dedicated 10/100Base-T Ethernet port
Serial Management	One dedicated RJ45 port
USB	Front: Two USB 2.0 ports Rear: Two USB 2.0 ports Internal: Two USB 2.0 ports
PCI Expansion Slots	Six low profile PCI Express 3.0 slots; Slot 1: x16 electrical / x16 mechanical Slots 2-6: x8 electrical
Internal Mass Storage

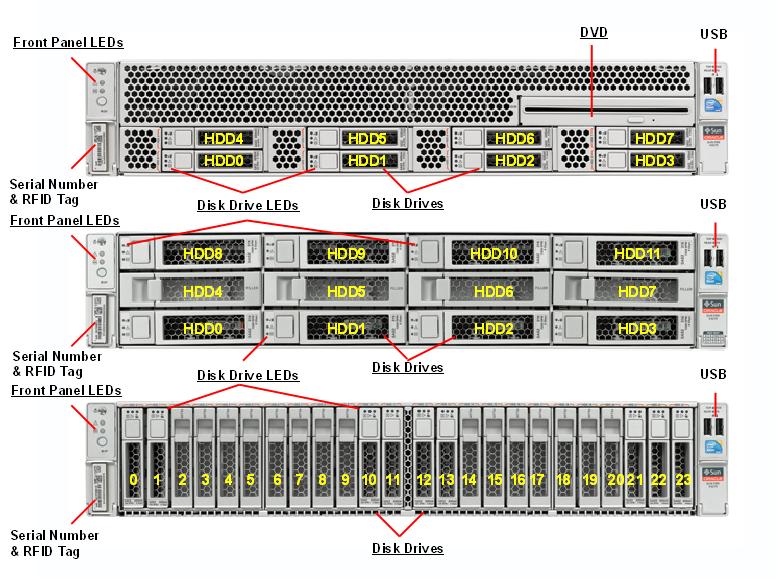

Disks	8-Disk configuration with DVD: 2.5in 300GB / 600GB SAS-2 or 100GB / 300GB SSD 12-Disk configuration: 3.5in 600GB SAS-2 or 3TB SAS (2 additional disks in the rear) 24-Disk configuration: 2.5in 300GB / 600GB SAS-2 or 100GB / 300GB SSD (2 additional disks in the rear)
Uses one of two supported internal HBAs for internal storage. The HBA is to be installed in PCI Express Slot 6.
Power Supplies
Dual redundant, hot swappable power supplies (Maximum output power = 1000W)
Environment
Voltage	100 to 127 / 200 to 240 VAC
Input Current	12.0 A-8.5 A @ 100-127 V 5.7 A @ 200-240 V
AC power	50-60 Hz (47 to 63 Hz range)
Temperature	Operating: 5° C to 35° C (41° F to 95° F) Nonoperating: -40° C to 70° C (-40° F to 158° F) Maximum ambient operating temperature is derated by 1 degree C per 300 meters of elevation beyond 900 meters, up to a maximum altitude of 3,000 meters of elevation.)
Humidity	Operating: 10% to 90% relative humidity noncondensing, short term -5 ° C to 55° C (25° F to 113° F) Nonoperating: up to 93% relative humidity noncondensing, 37.7° C (100.4° F) max wet bulb
Altitude	Operating: up to 3000 m (9,840 ft.) at 35° C (95° F) Nonoperating: Maximum 12,000 m (39,370 ft)
Acoustic	7.61 Bels A weighted operating; 5.65 Bels A weighted idling
Regulations Meets or exceeds the following requirements:
Safety	UL/CSA-60950-1, 2nd Edition, 2007-03-27 ; EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 ; IEC60950-1:2005 +A1:2009CB Scheme with all country deviations ; CNS14336-1 ; GB4943
EMI	EN55022:2006 +A1:2007/CISPR22:2008 Class A ; 47 CFR 15B Class A ; ICES-003 Class A ; VCCI Class A ; AS/NZ 3548 Class A ; CNS 13438 Class A ; KSC 5858 Class A ; GB9254 Class A ; EN61000-3-2 ; GB17625.1 ; EN61000-3-3
Immunity	EN55024:2010 ; IEC 61000-4-2 Electrostatic discharge ; IEC 61000-4-3 RF E-field immunity ; IEC 61000-4-4 Electrical Fast Transient/Burst ; IEC 61000-4-5 Surge ; IEC 61000-4-6 RF-Conducted immunity ; IEC 61000-4-8 Power frequency magnetic field immunity ; IEC 61000-4-11 Voltage dips, short interruptions
Ergonomics	EK1-1TB-2000
Dimensions and Weight
Height	87.6 mm (3.5 in)
Width	445.0 mm (17.5 in)
Depth	737 mm (29 in)
Weight	31.8 kg (70 lbs) fully populated
Clearance and Service Access
Front Rear	91 cm (36 in) 91 cm (36 in)
Rack Mounting
Sun Server X3-2L / Sun Fire X4170 M3 Server Racks	Racks are as follows: Sun Rack II 1042 Sun Rack II 1242

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	150-3993 [C]	3V Lithium Coin Cell Battery	n/a

CPU Module
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7020776 [F]	CPU Heatsink	n/a
n/a	7026878 [F]	2.9GHz Intel 8-core Xeon E5-2690, 135W	n/a
n/a	7026881 [F]	2.2GHz Intel 8-core Xeon E5-2660, 95W	n/a
n/a	7026882 [F]	2.5GHz Intel 6-core Xeon E5-2640, 95W	n/a
n/a	7026883 [F]	2.4GHz Intel 4-Core Xeon E5-2609, 80W	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
7102869	7039990 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 10M	n/a
7102870	7039999 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 20M	n/a
7102871	7040001 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 50M	n/a
X2121A-1M-N	530-4444 [C]	10Gbps QSFP to QSFP Cable, 1m	n/a
X2121A-2M	530-4567 [C]	10Gbps QSFP to QSFP Cable, 2m	n/a
X2121A-3M-N	530-4445 [C]	10Gbps QSFP to QSFP Cable, 3m	n/a
X2121A-5M-N	530-4446 [C]	10Gbps QSFP to QSFP Cable, 5m	n/a
X2130A-1M-N	530-4441 [C]	10Gbps SFP+ TwinX Cable, 1m	n/a
X2130A-3M-N	530-4442 [C]	10Gbps SFP+ TwinX Cable, 3m	n/a
X2130A-5M-N	530-4443 [C]	10Gbps SFP+ TwinX Cable, 5m	n/a
n/a	530-4037	2-Slot 10-Pin Disk Backplane Power Cable	n/a
n/a	7014930	Rear Disk Data Cable, SATA to 90° SATA, 400mm	n/a
n/a	7014931	Rear Disk Data Cable, SATA to 90° SATA, 320mm	n/a
n/a	7015654 ¹	Disk Data Cable, SFF-8087 to iPass+ HD, 203mm	n/a
n/a	7047255 [F]	8-Slot Backplane Cable Kit	n/a
	530-4537	Disk Drive Flex Cable	n/a
	7041996	Disk Data Cable, SFF-8087 to SFF-8643, 650mm	n/a
	7068329	Dual Backplane Power Cable	7014920
	7309766	Disk Drive Flex Cable	n/a
n/a	7047257 [F]	12-Slot Backplane Cable Kit	n/a
	530-4536	Disk Drive Flex Cable	n/a
	7014921	4-Slot Disk Backplane Power Cable	n/a
	7015651	Disk Data Cable, iPass+ HD to iPass+ HD, 600mm	n/a
	7068329	Dual Backplane Power Cable	7014920
	7309765	Disk Drive Flex Cable	n/a
n/a	7047258 [F]	24-Slot Backplane Cable Kit	n/a
	530-4534	Disk Drive Power Cable	n/a
	530-4537	Disk Drive Flex Cable	n/a
	7020903	Disk Data Cable, SFF-8087 to SFF-8643, 620mm	n/a
	7020904	Disk Data Cable, SFF-8087 to iPass+ HD, 740 mm	n/a
	7020905	Disk Data Cable, SFF-8087 to iPass+ HD, 711mm	n/a
	7309766	Disk Drive Flex Cable	n/a

¹ FRU|CRU part 7014391 “SAS Expander Assembly” includes quantity 1 7015654 “Disk Data Cable”.

Communication
Option #	Manufacturing Part #	Description	Previous Part #
X4242A	375-3696 [C]	Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter	n/a
X4242A	7092767 [C]	Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter	n/a

Disk Backplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	350-1817	12-Slot 3.5″ Disk Cage	n/a
	541-4671	Left Ear Assembly	n/a
	541-4672	Right Ear Assembly	n/a
	350-1812	Fan Door	n/a
n/a	541-4674	2-Slot Rear Disk Cage Assembly	n/a
	7012767	Rear Disk Cage	n/a
	7023515 ² [F]	2-Slot Backplane	n/a
n/a	7014619	2.5″ Lightpipe Assembly	n/a
n/a	7039835	8-Slot 2.5″ Disk Cage Assembly	n/a
	341-7139	Right Ear Cover	n/a
	341-7140	Left Ear Cover	n/a
	530-4537	Disk Drive Flex Cable	n/a
	7014920	Dual Backplane Power Cable	n/a
	7014929	LED Cable	n/a
	7017231 [F]	Disk Backplane Right LED Indicator Module	n/a
	7023333	Right Indicator	n/a
	7027303	Front LED Indicator Module Cable	n/a
	7027478 [F]	4-Slot 2.5″ Disk Backplane Assembly	n/a
	7024658	4-Slot 3.5″ Disk Backplane	n/a
	7049472	2.5″ Lightpipe Assembly	7014619
	7048864 [F]	Disk Backplane Left LED Indicator Module	7017223 [F]
	7023335	Left Indicator	n/a
n/a	7039836	24-Slot Disk Cage Assembly	n/a
	341-7139	Right Ear Cover	n/a
	341-7140	Left Ear Cover	n/a
	530-4534	Disk Drive Power Cable	n/a
	530-4537	Disk Drive Flex Cable	n/a
	7012294	24-Slot 2.5″ Disk Cage	n/a
	7014391 ³ [C]	SAS Expander Assembly	n/a
	7010672	SAS Expander Subassembly	n/a
	7023751	SAS Expander w/o Heatsink	n/a
	7015388	Plunger	n/a
	7015394	Grommet	n/a
	7014929	LED Cable	n/a
	7015229 [F]	24-Slot 2.5″ Disk Backplane Assembly	n/a
	341-6231	Mounting Bracket	n/a
	7020908	24-Slot 2.5″ Disk Backplane	n/a
	7017231 [F]	Disk Backplane Right LED Indicator Module	n/a
	7023333	Right Indicator	n/a
	7027303	Front LED Indicator Module Cable	n/a
	7048864 [F]	Disk Backplane Left LED Indicator Module	7017223 [F]
	7023335	Left Indicator	n/a
	7309765	Disk Drive Flex Cable	n/a
n/a	7045664	12-Slot 3.5″ Disk Cage Assembly	n/a
	341-7139	Right Ear Cover	n/a
	341-7140	Left Ear Cover	n/a
	530-4536	Disk Drive Flex Cable	n/a
	7014391 ⁴ [C]	SAS Expander Assembly	n/a
	7010672	SAS Expander Subassembly	n/a
	7023751	SAS Expander w/o Heatsink	n/a
	7015388	Plunger	n/a
	7015394	Grommet	n/a
	7014921	4-Slot Disk Backplane Power Cable	n/a
	7014929	LED Cable	n/a
	7017231 [F]	Disk Backplane Right LED Indicator Module	n/a
	7023333	Right Indicator	n/a
	7027479 [F]	4-Slot 3.5″ Disk Backplane Assembly	n/a
	7014384	3.5″ Lightpipe Assembly	n/a
	7024658	4-Slot 3.5″ Disk Backplane	n/a
	7049434	3.5″ Lightpipe Assembly	7014384
	7048864 [F]	Disk Backplane Left LED Indicator Module	7017223 [F]
	7023335	Left Indicator	n/a
	7051157	12-Slot 3.5″ Disk Cage	7047768
	350-1812	Fan Door	n/a
	541-4671	Left Ear Assembly	n/a
	7051565	Right Ear Assembly	541-4672
	7310026	Left Ear Assembly	n/a
	7068329	Dual Backplane Power Cable	7014920
	7309765	Disk Drive Flex Cable	n/a
n/a	7045721	12-Slot 3.5″ Disk Cage	350-1817
	541-4671	Left Ear Assembly	n/a
	350-1812	Fan Door	n/a
	541-4672	Right Ear Assembly	n/a
n/a	7047768	12-Slot 3.5″ Disk Cage	7045721
	350-1812	Fan Door	n/a
	541-4671	Left Ear Assembly	n/a
	541-4672	Right Ear Assembly	n/a
n/a	7052898 [F]	Left Ear Kit	n/a
	7014929	LED Cable	n/a
	7048864 [F]	Disk Backplane Left LED Indicator Module	7017223 [F]
	7023335	Left Indicator	n/a
n/a	7052899 [F]	Right Ear Kit	n/a
	7017231 [F]	Disk Backplane Right LED Indicator Module	n/a
	7023333	Right Indicator	n/a
	7027303	Front LED Indicator Module Cable	n/a

² Packaged FRU 7019623 includes 7023515 plus cables 7014930, 7014931, and 530-4037.
³ FRU|CRU part 7014391 includes a quantity of 1 7015654 “Disk Data Cable”.
⁴ FRU|CRU part 7014391 includes a quantity of 1 7015654 “Disk Data Cable”.

Disks
Option #	Manufacturing Part #	Description	Previous Part #
XRA-SS2CF-600G10K2	542-0287 [C]	600GB – 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks;	n/a
	390-0488	Hitachi HUC106060CSS600 [H106060SDSUN600G] (600GB – 10000 RPM – SAS Disk)	n/a
	390-0491	Seagate ST9600205SS [ST960005SSUN600G](600GB 10000 RPM SAS Disk)	n/a
	7045228	Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB – 10000 RPM – SAS Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
XRB-SS2CF-300G10K2	542-0388 [C]	300GB – 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0487	Hitachi HUC106030CSS600 [H106030SDSUN300G] (300GB – 10000 RPM – SAS Disk)	n/a
	390-0490	Seagate ST9300605SS [ST930005SSUN300G](300GB 10000 RPM SAS Disk)	n/a
	7045226	Hitachi HUC109030CSS600 [H109030SESUN300G] (300GB – 10000 RPM – SAS Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
7101423 [S]	7017183 [C]	100GB Solid State SATA Drive Assembly	n/a
	7017177	Intel SSDSA2BZ100G3 [Inquiry Unknown] (100GB – 2.5″ Solid State – SATA Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
7101469 [S]	7017184 [C]	300GB Solid State SATA Drive Assembly	n/a
	7017181	Intel SSDSA2BZ300G3 [Inquiry Unknown] (300GB – 2.5″ Solid State – SATA Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
7102760 [S]	7010036 [C]	3TB – 7200 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7010033	Seagate ST33000650SS [ST33000SSSUN3.0T] (3TB – 7200 RPM – SAS Disk)	n/a
	7021037	Hitachi HUS723030ALS640 [H7230AS60SUN3.0T] (3TB – 7200 RPM – SAS Disk)	n/a
	350-1386	Coral 3.5″ Disk Drive Bracket	n/a
XRA-SS1CR600G15K-N [S]	542-0166 [C]	600GB – 15000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0463	Seagate ST3600057SS [ST360057SSUN600G] (600GB – 15000 RPM – SAS Disk)	n/a
	350-1386	Coral 3.5″ Disk Drive Bracket	n/a
	542-0428 [C]	600GB – 15000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0463	Seagate ST3600057SS [ST360057SSUN600G] (600GB – 15000 RPM – SAS Disk)	n/a
	390-0483	Hitachi HUS156060VLS600 [HUS1560SCSUN600G] (600GB – 15000 RPM – SAS Disk)	n/a
	350-1386	Coral 3.5″ Disk Drive Bracket	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
7100477	7070195 [C]	Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP	7048474 [C]
7100481	7070202 [C]	Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF	7014747 [C]
7100488	7070006 [C]	Dual 10-Gigabit Base-T PCI Express Gen2	7014776 [C]
7105381	Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA – SR
7105381	7053422 [C]	Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA – SR	375-3681 [C]
X1109A-Z	7051223 [C]	Dual 10-Gigabit PCI Express Ethernet SFP+ LP	375-3617 [C]
X2124A	135-1204 [C]	10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver	n/a
X2129A-N	530-4449 [C]	10Gb/Sec Short Wave SFP+ Transceiver	n/a
X5562A-Z	135-1205 [C]	10Gb/Sec Long Wave SFP+ Transceiver	n/a
7105382 [S]	Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA – Direct Attach
7105382 [S]	7053423 [C]	Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA – Direct Attach	375-3682 [C]
SG-XPCIEFCOE2-Q-SR [S]	7053422 [C]	Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA – SR	375-3681 [C]
SG-XPCIEFCOE2-Q-TA [S]	7053423 [C]	Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA – Direct Attach	375-3682 [C]
n/a	375-3617 [C]	Dual 10-Gigabit Ethernet SFP+ LP	n/a
n/a	375-3681 [C]	Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA – SR	n/a
n/a	375-3682 [C]	Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA – Direct Attach	n/a
n/a	7014741 [C]	Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP	n/a
n/a	7014747 [C]	Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF	n/a
n/a	7014776 [C]	Dual 10-Gigabit Base-T PCI Express Gen2	n/a
n/a	7048474 [C]	Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP	7014741 [C]

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7045042 [C]	Dual Counter Rotating Fan Module	n/a
n/a	7045041	80×80mm Counter Rotating Fan	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCIE2FC-EM8-N	7053434 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	371-4306 [C]
SG-XPCIE2FC-QF8-N	371-4325 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
n/a	371-4306 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
7100790 [S]	7020486 [C]	8GB DDR3-1600 DIMM, 1.35V	n/a
7100792 [S]	7038750 [C]	32GB DDR3-1066/DDR3-1333 DIMM, 1.35V	n/a
7100794 [S]	7018701 [C]	16GB DDR3-1600 DIMM, 1.35V	n/a
n/a	7038488 [C]	4GB USB 2.0 Flash Drive	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7044130 [C]	A258 1000 Watt AC Input Power Supply	n/a

Rack
Option #	Manufacturing Part #	Description	Previous Part #
n/a	350-1287 [C]	1U/2U Cable Management Arm	n/a
n/a	350-1719 [C]	1U/2U Snap-In Slide Rail Rackmount Kit	n/a
n/a	7042273 [C]	1U/2U Cable Management Arm (Snap-in)	350-1287 [C]

Removable Media
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-4688 [C]	Slot-Load DVD Assembly	n/a
	390-0486	8x Slot-Load SATA DVD-Writer/24x CD-Writer	n/a
	7014928	DVD Data/Power Cable	n/a
	7020884	DVD Mounting Tray	n/a
	7045772	8x Slot-Load SATA DVD-Writer/24x CD-Writer	n/a
n/a	7081551 [C]	Tray-Load DVD Assembly	n/a
	7014928	DVD Data/Power Cable	n/a
	7071296	8x Tray-Load SATA DVD-ROM Writer / 24x CD-ROM Writer	n/a
	7081553	DVD Tray	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
7105387	8-Port 6Gbps SAS-2 PCI Express HBA
7105387	7047853 [C]	8-Port 6Gbps SAS-2 PCI Express HBA (LSI)	375-3641 [C]
SGX-SAS6-R-INT-Z	7047503 [C]	8-Port 6Gbps SAS-2 RAID PCI Express HBA, B4 ASIC	375-3701 [C]
SGX-SAS6-R-INT-Z	7050794 [C]	6Gbps SAS-2 RAID PCI Battery Module, BBU08	371-4982 [C]
7104482 [S]	7070787 [C]	Flash Accelerator F40 400GB Solid State Memory	7026993 [C]
SGX-SAS6-EXT-Z [S]	7047853 [C]	8-Port 6Gbps SAS-2 PCI Express HBA (LSI)	375-3641 [C]
SGX-SAS6-INT-Z [S]	7047852 [C]	8-Port 6Gbps SAS-2 PCI Express HBA (LSI)	375-3640 [C]
n/a	371-4982 [C]	6Gbps SAS-2 RAID PCI Battery Module, BBU08	n/a
n/a	375-3640 [C]	8-Port 6Gbps SAS-2 PCI Express HBA (LSI)	n/a
n/a	375-3641 [C]	8-Port 6Gbps SAS-2 PCI Express HBA (LSI)	n/a
n/a	375-3701 [C]	8-Port 6Gbps SAS-2 RAID PCI Express HBA, B4 ASIC	n/a
n/a	7014391 ⁶ [C]	SAS Expander Assembly	n/a
	7010672	SAS Expander Subassembly	n/a
	7023751	SAS Expander w/o Heatsink	n/a
	7015388	Plunger	n/a
	7015394	Grommet	n/a
n/a	7026993 [C]	Flash Accelerator F40 400GB Solid State Memory	n/a

⁶ FRU|CRU part 7014391 includes a quantity of 1 7015654 “Disk Data Cable”.

System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7014226 [C]	Interlock Cable, 125mm	n/a
n/a	7039830 [F]	X3-2L System Board Assembly	n/a
	350-1730	System Board Tray	n/a
	7023964	Pass Thru Mezzanine	n/a
	7027349	Rear I/O Board	n/a
	7040990	System Board	n/a
	150-3993 [C]	3V Lithium Coin Cell Battery	n/a
n/a	7049382 [F]	X3-2L System Board Assembly	7039830 [F]
	350-1730	System Board Tray	n/a
	7023964	Pass Thru Mezzanine	n/a
	7046334	System Board	n/a
	150-3993 [C]	3V Lithium Coin Cell Battery	n/a
	7055748	Rear I/O Board	7027349

Industry Leading Quality, Support and Integrity

Quality Inspection Checklist
Before it leaves our facility, every used and refurbished item is thoroughly inspected by our certified technicians and undergoes our exclusive Quality Inspection Checklist to ensure 100% satisfaction guarantee.

Greentec Systems is a leading provider
For server, networking and storage equipment. We have an extensive array of inventory of IBM Servers & Storage, Sun Servers & Storage, Cisco Networking (Switches, Routers, Security), and NetApp Storage (disk shelves, disk drives, Filers, NearStore, NetCache). If you don’t see the item or product you require please contact us.

Have this equipment to sell?
Depending on the age and condition of the equipment, there is a very good likelihood that we will be able to offer you cash or trade-in credit for other IT hardware. If the equipment is very old we can also assist you with properly decommissioning that gear in the most environmentally friendly way possible.

Questions?
For more information please contact 888.333.7388, or fill out the quote from above. We’d love to hear from you.
