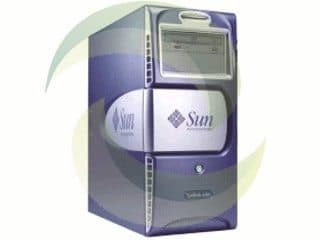

Oracle Sun 2500 Workstation
REQUEST A PRICE QUOTE:
| Processor | |
| Number | Up to 2 |
| Architecture | 1.28GHz UltraSPARC[tm] IIIi |
| Cache memory | 64 KB data, 32 KB instruction and 1 MB integrated L2 |
| Main Memory | |
| Capacities | 8 184-pin DIMM slotsRegistered DDR-1 SDRAM (PC2100). System Configurations up to 8 GB |
| Standard Interfaces | |
| Audio | One line-in, one line-out, one microphone-in, one headphone-out |
| Ethernet | One 10/100/1000BASE-T port |
| IEEE 1394 | 2 ports, provided by a plug in PCI card (I/O Combo Card) |
| Keyboard and mouse | USB (works only with onboard USB 1.1 ports) |
| Parallel | One IEEE 1284 compliant parallel port (DB25) |
| PCI | Six internal PCI 2.2 compliant expansion slots:
|
| SCSI | One Ultra160 SCSI multimode (SE/LVD) |
| Serial | Two Asynchronous Serial (DB9), one provided on audio card |
| USB | USB 1.1: 4 ports (back) USB 2.0: 3 ports, provided by a plug in PCI card (I/O Combo Card) |
| Internal Mass Storage | |
| Disks | Up to two 36GB or 73GB Ultra 320 SCSI disks, operating according to the 160 spec. |
| DVD-ROM | 16X, ATA-33 DVD-ROM |
| CD-RW | 48X CD-RW |
| Tape | 4mm DAT 72 SCSI Tape |
| Graphics | |
| Cards |
|
| Environment | |
| AC input | 90 to 264 VAC, 47 to 63 HZ, 0.4 KVA |
| DC Output | 475 W |
| Current Draw (In Rush) | 80A RMS Maximum |
| Heat output |
E-star mode: 232 BTU/hr Sun Blade 2500 w/ XVR-500 Graphics: 683 BTU/hr Maximum: 1570 BTU/hr |
| Input power | TDB |
| Temperature (with tape drive) |
Operating: 5° C to 35° C (41° F to 95° F) Nonoperating: -40° C to 70° C (-40° F to 158° F) |
| Temperature (without tape drive) |
Operating: 0° C to 40° C (32° F to 104° F) Nonoperating: -40° C to 70° C (-40° F to 158° F) |
| Humidity |
Operating: 10 to 93 % at 27° C (81° F), noncondensing Nonoperating: 93 % at 38° C (101° F) |
| Altitude |
Operating: 3 km (9842.5 ft) Nonoperating: 12 km (39370 ft) |
| Acoustic noise – LPAm (Sound Power) |
Operating: 5.2 B Idling: 5.1 B Position: n/a |
| Acoustic noise – LPAm (Sound Pressure) |
Operating: 42 dBA Idling: 37 dBA Position: 0.50 M |
| Acoustic noise – LPAm (Sound Pressure Mean) |
Operating: 35 dBA Idling: 30 dBA Position: 1.0 M |
| Vibration |
Operating: 0.20G, in all axes, 5-500 Hz sine wave, IEC 60068-2-6, Test Fc Nonoperating: 1.0G, in all axes, 5-500 Hz sine wave, IEC 60068-2-6, Test Fc |
| Shock |
Operating: 5.0G, 11 msec. half-sine wave, IEC 60068-2-27, Test Ea Nonoperating: 30.0G, 11 msec. half-sine wave, 60068-2-27, Test Ea |
| Number of cords | 1 |
|
Regulations Meets or exceeds the following requirements: |
|
| Safety | UL 11200, CSA C22.2 No. 1200, EN 601200, CB Scheme with all Country Deviations including Nordic EMKO-TSE (74-SEC), IEC825-1, 2, and CFR21 part 1040 |
| Ergonomics | EN 29241-3, -7, -8, ISO 9296, EKI 59-98, EKI 60-98, BildscharbV, A15 and A17, ISO 9241-4 and DIN2137 |
| RFI/EMI | FCC Class B, ICES-003 Class B, VCCI Class B, EN55022 Class B BSMI Class B, EN61000-3-2, EN61000-3-3 |
| Immunity | EN55024 |
| X-ray | DHHS 21 Subchapter J; PTB German X-ray Degree |
| Power management | Energy Star compliant on all configurations |
| Dimensions and Weights | |
| Height | 48.3 cm (19 in) |
| Width | 21 cm (8.3 in) |
| Depth | 49 cm (19.3 in) |
| Weight | 22.5 kg (49.6 lbs) |
| Backplane/Centerplane | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| n/a | 375-3097 | SCSI Backplane | ||
| Batteries | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| n/a | 370-5949 | 3V Lithium Battery CR2032 | ||
| Boot PROM | ||
|---|---|---|
| Socket | Manufacturing Part # |
Patch |
| n/a | 525-2025 | 119232 |
| CPU Module | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| n/a | 527-1088 | 1.280GHz USIIIi | ||
| Cables | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| X311L | Localized Power Cord Kit – North America/Asia, RoHS:Y | |||
| 180-1097 | IEC 320 C13 to NEMA 5-15P – 15A/125V 2.5M Black, RoHS:Y | |||
| X312L | Localized Power Cord Kit – Continental Europe, RoHS:Y | |||
| 180-1993 | IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black, RoHS:Y | |||
| X314L | Localized Power Cord Kit – Swiss, RoHS:Y | |||
| 180-1994 | IEC 320 C13 to SEV 1011 – 10A/250V 2.5M Black, RoHS:Y | |||
| X317L | Localized Power Cord Kit – U.K., RoHS:Y | |||
| 180-1997 | IEC 320 C13 to BS 1363 – 10A/250V 2.5M Black, RoHS:Y | |||
| X383L | Localized Power Cord Kit – Danish, RoHS:Y | |||
| 180-1995 | IEC 320 C13 to Asfnit 107 – 10A/250V 2.5M Black, RoHS:Y | |||
| X384L | Localized Power Cord Kit – Italian, RoHS:Y | |||
| 180-1996 | IEC 320 C13 to CEI 23-16/VII – 10A/250V 2.5M Black, RoHS:Y | |||
| X386L | Localized Power Cord Kit – Australian, RoHS:Y | |||
| 180-1998 | IEC 320 C13 to AS 3112 – 10A/250V 2.5M Black, RoHS:Y | |||
| n/a | 530-1819 | Localized Power Cord Kit – Danish | ||
| Card/Reader | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| n/a | 370-5018 | Smart Card Reader | ||
| Communication | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| X1155A | 370-2728 | High Speed Serial Interface PCI (HSI/P) 2.0 | ||
| X1157A | 501-3028 | SunATM-155/MFiber PCI 4.0 | ||
| X1158A | 501-3027 | SunATM-155/UTP PCI 4.0 | ||
| X1159A | 501-3029 | SunATM-622/MFiber PCI 4.0 | ||
| X2156A | 375-0100 | Serial Asynchronous Interface PCI (SAI/P) 3.0 | ||
| X4011A | 501-6039 | Crypto Accelerator 4000 UTP (copper) | ||
| X4012A | 501-6040 | Crypto Accelerator 4000 MMF (fiber) | ||
| X4111A | 501-6039 | Crypto Accelerator 4000 UTP (copper) | ||
| X4112A | 501-6040 | Crypto Accelerator 4000 MMF (fiber) | ||
| X6762A | 375-3089 | Crypto Accelerator 1000 | ||
| Disks | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| XRA-SC1CA-36G10K | 540-5996 | 36.4GB – 10000 RPM, Disk Assembly with 1 Bracket and 1 of the following disks: | ||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
| XRA-SC1CA-73G10K | 540-6289 | 73.4GB – 10000 RPM, Disk Assembly with 1 bracket and 1 of the following disks: | ||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
| n/a | 540-5456 | 73.4GB – 10000 RPM, Disk Assembly with 1 SPUD bracket, and 1 of the following disks: | ||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
| Ethernet | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| X4445A | 501-6738 | Quad GigaSwift PCI-X Ethernet (QGE-X), RoHS:Y | ||
| X1033A | 501-5019 | Sun FastEthernet PCI Adapter (FE/P) 2.0 | ||
| X1034A | 501-5406 | Quad FastEthernet PCI (QFE/P) | ||
| X1141A | 501-4373 | Gigabit Ethernet PCI (GBE/P) 2.0 | ||
| X1150A | 501-5902 | Sun GigaSwift Ethernet UTP (Copper) | ||
| X1151A | 501-5524 | Sun GigaSwift Ethernet MMF (Fiber) | ||
| X3150A | 501-5902 | Sun GigaSwift Ethernet UTP (Copper) | ||
| X3151A | 501-5524 | Sun GigaSwift Ethernet MMF (Fiber) | ||
| X4150A | 501-6719 | GigaSwift Ethernet UTP (GCS) | ||
| X4151A | 501-6762 | GigaSwift Ethernet MMF (GFS) | ||
| X4444A | 501-6522 | Quad GigaSwift Ethernet UTP (QGE) | ||
| Fan | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| n/a | 370-5686 | CPU Fan/Heatsink w/ clips | ||
| n/a | 370-5726 | Front Fan (92mm) | ||
| n/a | 370-5727 | Rear Fan (120mm) | ||
| n/a | 370-7088 | CPU Fan/Heatsink w/ clips | ||
| Fibre Channel | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| SG-XPCI1FC-QF4 | 375-3354 | 4Gb PCI-X Single FC Host Adapter, RoHS:Y | ||
| SG-XPCI2FC-QF4 | 375-3294 | 4Gb PCI-X Dual FC Host Adapter, RoHS:Y | ||
| SG-XPCI1FC-EM2 | 375-3304 | 2Gb PCI-X Single FC Host Adapter, RoHS:Y | ||
| SG-XPCI1FC-QF2 | 375-3102 | 2Gb PCI Single FC Host Adapter | ||
| SG-XPCI1FC-QL2 | 375-3383 | 2Gb PCI-X Single FC Host Adapter, RoHS:Y | ||
| SG-XPCI2FC-EM2 | 375-3305 | 2Gb PCI-X Dual FC Host Adapter, RoHS:Y | ||
| SG-XPCI2FC-QF2 | 375-3108 | 2Gb PCI Dual FC Host Adapter | ||
|
|
|||
| SG-XPCI2FC-QF2-Z | 375-3363 | 2Gb PCI Dual FC Host Adapter, RoHS:Y | ||
|
|
|||
| X6727A | 375-3030 | PCI Dual FC Host Adapter+, RoHS:YL | ||
| X6799A | 375-3019 | PCI Single FC Host Adapter | ||
| Graphics | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| X3685A | 375-3069 | XVR-500 Graphics Accelerator | ||
| X3689A | 375-3101 | XVR-1200 Graphics Accelerator | ||
| X3769A | 375-3126 | XVR-100 Graphics Accelerator (32MB) | ||
| X3770A | 375-3181 | XVR-100 Graphics Accelerator (64MB) | ||
| X3780A | 375-3153 | XVR-600 Graphics Accelerator | ||
| X7296A | 375-3290 | XVR-100 Graphics Accelerator (64MB), RoHS:Y | ||
| I/O | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| n/a | 375-3140 | I/O Combo Card | ||
| IDPROM | |||
|---|---|---|---|
| Socket | Manufacturing Part # |
Component Type | Host ID |
| n/a | 525-2024 | SEEPROM 1 x MAC | 83xxxxxx |
| Memory | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| X7403A | 1GB DDR Memory Option (2 × 512MB DIMMs) | |||
| 370-4939 | 512MB Registered DDR DIMM (SPD 0.0) | |||
| X7404A | 2GB DDR Memory Option (2 × 1GB DIMMs) | |||
| 370-4940 | 1GB Registered DDR DIMM (SPD 0.0) | |||
| X7603A | 1GB DDR Memory Option, SPD 1.0 (2 × 512MB DIMMs) | |||
| 370-6202 | 512MB Registered DDR DIMM (SPD 1.0) | |||
| X7604A | 2GB DDR Memory Option, SPD 1.0 (2 × 1GB DIMMs) | |||
| 370-6203 | 1GB Registered DDR DIMM (SPD 1.0) | |||
| X7703A | 1GB DDR Memory Option, SPD 0.0 or 1.0 (2 × 512MB DIMMs) | |||
| 370-7670 | 512MB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster | |||
| X7704A | 2GB DDR Memory Option, SPD 0.0 or 1.0 (2 × 1GB DIMMs) | |||
| 370-7671 | 1GB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster | |||
| n/a | 540-6229 | 1GB DDR FRU, SPD 1.0 (2 × 512MB DIMMs) | ||
|
|
|||
| n/a | 540-6230 | 2GB DDR FRU, SPD 1.0 (2 × 1GB DIMMs) | ||
|
|
|||
| n/a | 540-6400 | 1GB DDR FRU, SPD 0.0/1.0 (2 × 512MB DIMMs) | ||
|
|
|||
| n/a | 540-6401 | 2GB DDR FRU, SPD 0.0/1.0 (2 × 1GB DIMMs) | ||
|
|
|||
| Miscellaneous | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| X2134A | 370-6200 | Rear Guide Kit | ||
| 375-3116 | SunPCi III 1.4GHz Co-Processor Card, 256MB memory | |||
| X2136A | 370-6200 | Rear Guide Kit | ||
| 375-3203 | SunPCi IIIpro 1.6GHz Co-Processor Card, 256MB memory | |||
| X7066A | 370-5463 | SunPCi III 256MB SODIMM memory expansion | ||
| X7067A | 370-5967 | SunPCi III 512MB SODIMM memory expansion | ||
| Power | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| n/a | 300-1630 | 475 Watt Power Supply | ||
| Removable Media | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| SG-XMEDDAT72-10 | DAT 72 Data Cartridges, 10 pack | |||
| 370-6908 | DAT 72 Data Cartridge | |||
| SG-XTAPDAT72-5F68 | 380-1004 | 36-72GB 4 mm DAT 72 Tape Drive | ||
| X9004A | 370-5693 | 48X CD-Writer | ||
| 370-6699 | Secondary IDE Cable 422702900009 | |||
| n/a | 370-5690 | 16X DVD-ROM Drive | ||
| SCSI | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| SGXPCI2SCSILM320-Z | 375-3365 | PCI Dual Ultra320 SCSI Adapter, RoHS:YL | ||
| SG-XPCI2SCSI-LM320 | 375-3191 | PCI/PCI-X Dual Ultra320 SCSI Adapter | ||
| X1032A | 501-5656 | Single-Ended Ultra/Wide SCSI/FastEthernet (SunSwift PCI) | ||
| X2222A | 501-5727 | Dual FastEthernet / Dual SCSI PCI Adapter | ||
| X4422A | 501-6635 | Dual GigabitEthernet / Dual SCSI PCI Adapter | ||
| X5010A | 375-0097 | Single-Channel Single-Ended Ultra/Wide SCSI (PCI) | ||
| X6540A | 375-0005 | Dual Single-Ended Ultra/Wide SCSI (PCI) | ||
| X6541A | 375-0006 | Dual Differential Ultra/Wide SCSI (UDWIS/P)(HVD) | ||
| X6758A | 375-3057 | PCI Dual Ultra3 SCSI Host Adapter (LVD) | ||
