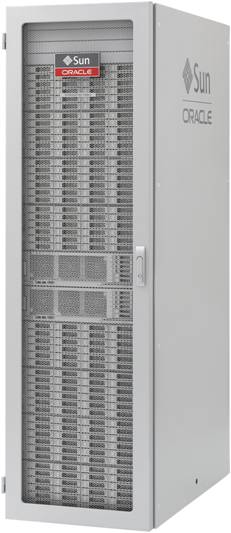

Oracle Sun Virtual Storage Manager System 6 Server

REQUEST A PRICE QUOTE:

Brand:	Oracle / Sun Microsystems
Condition:	Refurbished and new (limited availability)
Availability:	Contact
Shipping Area:	Worldwide to most countries
Shipping Method:	Fedex (most orders), UPS, DHL, Freight Courier
Price:	Please use the quote form above for quick pricing
Payment:	Credit Card, Check, Net Terms (oac), Wire Transfer (required for international orders)
Guarantee:	All items are tested by Oracle trained technicians & backed by a 100% warranty
Questions?	Don’t hesitate to contact us with any questions regarding compatibility or other product info and requests. Our website represents only a fraction of our full inventory. Please reach out with your full requirements

Specs and Information:

Processor
Number	Two SPARC T4 8-Core 2.85GHz processors
Architecture	SPARC V9 architecture, ECC Protected
CPUs	2.85GHz 8-Core 64 threads per CPU, 128 threads max Eight floating-point units Dual multithreaded 10 GbE PCI integrated onto each chip On-chip Encryption Instruction Accelerators with direct non-privileged support for 16 industry-standard cryptographic algorithms plus random number generation in each of the eight cores: AES, Camellia, CRC32c, DES, 3DES, DH, DSA, ECC, Kasumi, MD5, RSA, SHA-1, SHA-224, SHA-256, SHA-384, SHA-512

Capacity
Capacity	Qty (6) 300GB 10,000 RPM SAS Disk Drives	Qty (21) 3TB 7,200 RPM SAS Disk Drives Qty (3) 73GB Solid State Drives	Qty (20) 4TB 7,200 RPM SAS Disk Drives Qty (4) 73GB Solid State Drives

Environment
Power Consumption	Online power calculator
Input Voltage	200-240 VAC @ 50-60 Hz	200-240 VAC @ 50-60 Hz
Power consumption	Online power calculator	Online power calculator
Input Current	7.6A @ 200 VAC	10A @ 200 VAC
Temperature (operating)	5° C to 35° C (41° F to 95° F)	(not available)
Temperature (Nonoperating)	-40° C to 65° C (-40° F to 149° F)	(not available)
Relative Humidity (operating)	10% to 90% relative humidity noncondensing, 27° C (80.6° F) maximum wet bulb	10% to 90% relative humidity noncondensing, 27° C (80.6° F) maximum wet bulb

Dimensions and Weight
Height	129.85 mm (5.11 in.)	174.8 mm (6.88 in.)
Width	436.5 mm (17.18 in.)	445.0 mm (17.52 in.)
Depth	732 mm (28.81 in.)	594 mm (23.39 in.)
Weight	Max: 36.29 kg (80 lbs), without rackmount kit	Max: 50 kg (110.23 lb.), fully populated w/ drives
Service Clearance	910 mm – Front (36 in.), 910 mm – Rear (36 in.)	(not available)

StorageTek VSM6 Specifications
Capacity	10TB – 1.6PB (at 10TB increments) 800GB, 1.25TB 1.25 – 90TB (scalable in 1TB increments) 300TB, 600TB, 990TB, 1320TB
Maximum Capacity (256 systems)	409PB (Petabytes) 32PB 23PB 409PB
Virtual Tape Drives	256
Channels	8 FICON (Host/RTD), 8 Ethernet IP support 8FICON or 16 ESCON (FICON/ESCON only; not both), 4 Ethernet IP support 4 FICON (upgradable to 16) 16 ESCON (upgradeable to 32), 4 Ethernet IP support 16 Ethernet IP

StorageTek VSM6 Environment
Power Consumption	Online power calculator
Input Voltage	200 – 240 VAC @ 50Hz – 60Hz
Power Consumption/Dissipation	8.8 min kBTU/hr – 24.5 max kBTU/hr 8.6 min kBTU/hr – 12.4 max kBTU/hr 8.6 min kBTU/hr – 12.4 max kBTU/hr 9.1 min kBTU/hr – 21.8 max kBTU/hr
kVA	2.6 min – 7.2 max 2.6 min – 3.8 max 2.6 min – 3.8 max 2.6 min – 5.7 max
Temperature (operating)	16° C to 32° C (60° F to 90° F)
Relative Humidity (operating)	12% to 80% relative humidity noncondensing, 23° C (73° F) maximum wet bulb

Communication
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7057402 [F]	TDX PCI Express Infiniband Host Channel Adapter	n/a

Disk Backplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	511-1246 [F]	6-Slot Disk Backplane	n/a
n/a	7039459 [F]	6-Slot Disk Backplane	511-1246 [F]

Disks
Option #	Manufacturing Part #	Description	Previous Part #
n/a	542-0388 [F]	300GB – 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0487	Hitachi HUC106030CSS600 [H106030SDSUN300G] (300GB – 10000 RPM – SAS Disk)	n/a
	390-0490	Seagate ST9300605SS [ST930005SSUN300G](300GB 10000 RPM SAS Disk)	n/a
	7045226	Hitachi HUC109030CSS600 [H109030SESUN300G] (300GB – 10000 RPM – SAS Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
n/a	7010135 [F]	3TB – 7200 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7010033	Seagate ST33000650SS [ST33000SSSUN3.0T] (3TB – 7200 RPM – SAS Disk)	n/a
	7021037	Hitachi HUS723030ALS640 [H7230AS60SUN3.0T] (3TB – 7200 RPM – SAS Disk)	n/a
	350-1508	Stingray 3.5″ Mounting Bracket	n/a
n/a	7011094 ² [F]	73GB SAS Solid State Drive Assembly with 1 bracket and 1 of the following disks:	n/a
	371-5049	Stec Z16IZF2D-73UC [Inquiry Unknown] (73GB – 3.5″ Solid State – SAS-2 Disk)	n/a
	7047682	Stec Z16IZF3D-73UC [Inquiry Unknown] (73GB – 3.5″ Solid State – SAS-2 Disk)	n/a
	350-1508	Stingray 3.5″ Mounting Bracket	n/a
n/a	7044396 [F]	73GB SAS Solid State Drive Assembly	n/a
	7045627	Stec Z16IZF2E-73UCU [Inquiry Unknown] (73GB – 2.5″ Solid State – SAS-2 Disk)	n/a
	7044392	3.5″ Heron Disk Mounting Bracket	n/a
	7063417	2.5″ to 3.5″ Adapter Bracket	n/a
n/a	7048042 [F]	73GB SAS-2 Solid State Drive Assembly	7011094 ³ [F]
	7047682	Stec Z16IZF3D-73UC [Inquiry Unknown] (73GB – 3.5″ Solid State – SAS-2 Disk)	n/a
	350-1508	Stingray 3.5″ Mounting Bracket	n/a
n/a	7048983 [F]	73GB SAS-2 Solid State Drive Assembly	n/a
	7045627	Stec Z16IZF2E-73UCU [Inquiry Unknown] (73GB – 2.5″ Solid State – SAS-2 Disk)	n/a
	7047682	Stec Z16IZF3D-73UC [Inquiry Unknown] (73GB – 3.5″ Solid State – SAS-2 Disk)	n/a
	7042920	2.5″ Adapter	n/a
	7042923	Left Bracket	n/a
	7042926	Stingray 3.5″ Mounting Bracket	n/a
n/a	7066831 [F]	4TB 7200 RPM SAS Disk Drive Assembly	n/a
	7065489	Hitachi HUS724040ALS640 [H7240AS60SUN4.0T] (4TB – 7200 RPM – SAS Disk)	n/a
	7044392	3.5″ Heron Disk Mounting Bracket	n/a
	7096032	3.5″ Heron Disk Mounting Bracket	n/a
n/a	7094120 [F]	200GB SAS Solid State Drive Assembly	n/a
	7093646	HGST HUSMM1640ASS200 [HSCAC2DA6SUN200G] (200GB – 2.5″ Solid State – SAS Disk)	n/a
	7044392	3.5″ Heron Disk Mounting Bracket	n/a
	7096030	2.5″ to 3.5″ Cabrio Adapter Bracket	n/a
	7096032	3.5″ Heron Disk Mounting Bracket	n/a
n/a	7309938 [F] [A]	200GB SAS-3 Solid State Drive Assembly with 1 bracket and 1 of the following disks:	n/a
	7093646	HGST HUSMM1640ASS200 [HSCAC2DA6SUN200G] (200GB – 2.5″ Solid State – SAS Disk)	n/a
	7042920	2.5″ Adapter	n/a
	7042923	Left Bracket	n/a
	7042926	Stingray 3.5″ Mounting Bracket	n/a

² 73GB SAS-2 Solid State Drive Assembly PN#7011094 is used in the Disk Shelf 24×3.5″ SAS-2 as part of the StorageTek Virtual Manager 6 (VSM6).
³ 73GB SAS-2 Solid State Drive Assembly PN#7011094 is used in the Disk Shelf 24×3.5″ SAS-2 as part of the StorageTek Virtual Manager 6 (VSM6).
NOTE: 4TB 7200 RPM SAS Disk Drive Assembly PN#7066831 requires VSM6 V6.0.7.00.000 or higher.
NOTE: 73GB SAS-2 Solid State Drive Assembly PN#7048983 is used in the Disk Shelf 24×3.5″ SAS-2 as part of the StorageTek Virtual Manager 6 (VSM6).
NOTE: 73GB SAS-2 Solid State Drive Assembly PN#7044396 is used in the Oracle Storage DE2-24C as part of the StorageTek Virtual Manager 6 (VSM6).
NOTE: 3TB – 7200 RPM SAS Disk Assembly PN#7010135 is used in the Disk Shelf 24×3.5″ SAS-2 as part of the StorageTek Virtual Manager 6 (VSM6).
NOTE: 73GB SAS-2 Solid State Drive Assembly PN#7048042 is used in the Disk Shelf 24×3.5″ SAS-2 as part of the StorageTek Virtual Manager 6 (VSM6).
NOTE: 300GB – 10000 RPM SAS Disk Assembly PN#542-0388 is used in the SPARC T4-2 as part of the StorageTek Virtual Manager 6 (VSM6).
NOTE: 4TB 7200 RPM SAS Disk Drive Assembly PN#7066831 is used in the Oracle Storage DE2-24C as part of the StorageTek Virtual Manager 6 (VSM6).

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7055021 [F]	Quad Port GbE PCI Express, UTP	n/a
n/a	371-2207	Bracket Low-Profile	n/a
n/a	7070195 [F]	Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP	n/a

NOTE: Ethernet cards must match, mixing is not supported.

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-3539 [F]	92mm Fan Module	n/a
n/a	7051522 [F]	Fan Cage Assembly	n/a
	530-4349	LED Flex Circuit	n/a
	7051521	Fan Board with USB and VGA	n/a
n/a	7057262 [F]	Fan Cage Assembly	7051522 [F]
	530-4349	LED Flex Circuit	n/a
	7057260	Fan Board with USB and VGA	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-4325 [F]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
n/a	7012709 [F]	8Gb/Sec Short Wave SFP Transceiver	n/a
n/a	7012822 [F]	8Gb/Sec Long Wave SFP Transceiver	n/a
n/a	7020822	8Gbps Long Wave SFP 4-Pack	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7014640 [F]	8GB DDR3L-1333/PC3L-10600 DIMM	n/a
n/a	7042208 [F]	8GB DDR3L-1600/PC3L-12800 DIMM	n/a
n/a	7051516 [F]	Memory Riser Assembly	n/a
	350-1830	Memory Riser Tray Assembly	n/a
	341-5773	Memory Riser Tray	n/a
	7051515	Memory Riser Board	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	300-2276 [F]	764 Watt AC Input Power/Cooling Module	n/a
n/a	7022322 [F]	Power Distribution Board / Power Supply Backplane	n/a
	371-4446	Bus Bar	n/a
	7022323	Power Distribution Board	n/a
n/a	7043627 [F]	580 Watt AC Input Power Supply	n/a
n/a	7048278 [F]	Type A239C 1030/2060 Watt AC Input Power Supply	n/a
n/a	7052431 [F]	Power Distribution Board / Power Supply Backplane	7022322 [F]
	371-4446	Bus Bar	n/a
	7052430	Power Distribution Board / Power Supply Backplane	7022323
n/a	7060596 [F]	Type A239E 2000 Watt AC Input Power Supply	7048278 [F]
n/a	7081064 [F]	Type A239A 2000 Watt AC Input Power Supply	7060596 [F]

NOTE: 764 Watt AC Input Power/Cooling Module PN#300-2276 is used in the Disk Shelf 24×3.5″ SAS-2 as part of the StorageTek Virtual Manager 6 (VSM6).
NOTE: 580 Watt AC Input Power Supply PN#7043627 is used in the Oracle Storage DE2-24C as part of the StorageTek Virtual Manager 6 (VSM6).
NOTE: Type A239C 1030/2060 Watt AC Input Power Supply PN#7048278 is used in the SPARC T4-2 as part of the StorageTek Virtual Manager 6 (VSM6).

Rack
Option #	Manufacturing Part #	Description	Previous Part #
n/a	180-2379 [F]	13A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M	n/a
n/a	330-5319	1U Filler Panel	n/a
n/a	350-1531	Rackmount Kit	n/a
	n/a	Left Mounting Rail	n/a
	n/a	Right Mounting Rail	n/a
n/a	371-4791 [F]	Tool-less Slide Rail Rack Mount Kit	n/a
n/a	371-4812 [F]	Cable Management Arm	n/a
n/a	7015399 [F]	10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M	180-2379 [F]
n/a	7051799 [F]	10KVA Single-Phase Power Distribution Unit (PDU), North America	n/a
n/a	7051800 [F]	10KVA Single-Phase Power Distribution Unit (PDU), International	n/a
n/a	7063682 [F]	Mounting Rail Kit	n/a

NOTE: Rackmount Kit PN#350-1531 is used for rack mounting the Sun Disk Shelf 24×3.5″ SAS-2 as part of the StorageTek Virtual Manager 6 (VSM6).

Removable Media
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7017475 [F]	Slot-Load SATA DVD-Writer/CD-Writer	n/a
	7055072	Slot-Load SATA DVD-Writer/CD-Writer	n/a
	341-5808	Bezel	n/a
	341-6389	Mounting Tray	n/a
	7045772 [F]	8x Slot-Load SATA DVD-Writer/24x CD-Writer	n/a
n/a	7070422 [F]	Slot-Load SATA DVD-Writer/CD-Writer	n/a
	341-5808	Bezel	n/a
	341-6389	Mounting Tray	n/a
	7045772 [F]	8x Slot-Load SATA DVD-Writer/24x CD-Writer	n/a
n/a	7082409 [F]	Tray-Load SATA DVD-Writer/CD-Writer	n/a
	7071296	8x Tray-Load SATA DVD-ROM Writer / 24x CD-ROM Writer	n/a
	7079028	DVD Bezel	n/a
	7079063	DVD Carrier	n/a
	7089203	DVD Liner	n/a
n/a	7300356 [F]	Tray-Load SATA DVD-Writer/CD-Writer	7082409 [F]
	7071296	8x Tray-Load SATA DVD-ROM Writer / 24x CD-ROM Writer	n/a
	7079028	DVD Bezel	n/a
	7094095	DVD Carrier	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7056272 ⁴ [F]	8-Port 6Gbps SAS-2 RAID HBA	n/a
n/a	7067091 ⁵ [F]	4×4-Port PCIe-3, 6Gbps SAS-2 HBA	n/a

⁴ Only used with Sun Disk Shelf 24×3.5″ SAS-2.
⁵ Only used with the DE2-24C.

System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7096274 [F]	8-Core 2.85GHz System Board Assembly (reworked 7063413)	n/a
	341-6194	Mounting Tray	n/a
	371-2210 [F]	3V Lithium Coin Cell Battery	n/a
	530-3510	Interlock Switch Cable	n/a
	530-4348	System Board to Rear I/O Board Signal Cable	n/a
	7051520	Rear I/O Board	n/a
	7063412	System Board	n/a
	525-2146 [F]	SSCC NVRAM	n/a
n/a	7097399 [F]	8-Core 2.85GHz System Board Assembly (reworked 7049060)	n/a
	341-6194	Mounting Tray	n/a
	371-2210 [F]	3V Lithium Coin Cell Battery	n/a
	7049061	System Board	n/a
	525-2146 [F]	SSCC NVRAM	n/a
	7051520	Rear I/O Board	n/a
	530-3510	Interlock Switch Cable	n/a
	530-4348	System Board to Rear I/O Board Signal Cable	n/a
n/a	7049060 [F] [S]	8-Core 2.85GHz System Board Assembly	n/a
	341-6194	Mounting Tray	n/a
	371-2210 [F]	3V Lithium Coin Cell Battery	n/a
	530-3510	Interlock Switch Cable	n/a
	530-4348	System Board to Rear I/O Board Signal Cable	n/a
	7049061	System Board	n/a
	525-2146 [F]	SSCC NVRAM	n/a
	7051520	Rear I/O Board	n/a
n/a	7063413 [F] [S]	8-Core 2.85GHz System Board Assembly	7049060 [F] [S]
	341-6194	Mounting Tray	n/a
	371-2210 [F]	3V Lithium Coin Cell Battery	n/a
	530-3510	Interlock Switch Cable	n/a
	7051520	Rear I/O Board	n/a
	530-4348	System Board to Rear I/O Board Signal Cable	n/a
	7063412	System Board	n/a
	525-2146 [F]	SSCC NVRAM	n/a

System Service Processor
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7054434 [F]	Service Processor Assembly	n/a
	350-1614	Service Processor Cover	n/a
	7053714	AST2200 Service Processor	n/a

Industry Leading Quality, Support and Integrity

Quality Inspection Checklist
Before it leaves our facility, every used and refurbished item is thoroughly inspected by our certified technicians and undergoes our exclusive Quality Inspection Checklist to ensure 100% satisfaction guarantee.

Greentec Systems is a leading provider
For server, networking and storage equipment. We have an extensive array of inventory of IBM Servers & Storage, Sun Servers & Storage, Cisco Networking (Switches, Routers, Security), and NetApp Storage (disk shelves, disk drives, Filers, NearStore, NetCache). If you don’t see the item or product you require please contact us.

Have this equipment to sell?
Depending on the age and condition of the equipment, there is a very good likelihood that we will be able to offer you cash or trade-in credit for other IT hardware. If the equipment is very old we can also assist you with properly decommissioning that gear in the most environmentally friendly way possible.

Questions?
For more information please contact 888.333.7388, or fill out the quote from above. We’d love to hear from you.
