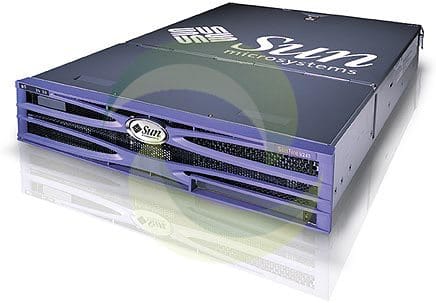

Sun SPARC V240 Server Specs & Pricing

This power 2U monster is powered by either 1 x 1.34 GHz or 2 x 1.5 GHz UltraSPARC® IIIi processors, the Sun Fire V240TM server is an entry-level, data center-class server. It provides high availabil- ity and expandability in a compact, 2U package. Four autonegotiating Gigabit Ethernet ports provide multiple connectivity for high-speed, high-bandwidth networking, while hot-swap- pable, front-accessible disk drives and redundant, hot-swappable power supplies (with inde- pendent cords) further enhance the Sun Fire V240 server’s uptime. With expandability fea- tures such as three PCI slots, up to four disk drives, and 16 GB of memory, the rack-optmized Sun Fire V240 server easily scales to meet the needs of Tier 1 and Tier 2 applications. With a low-cost, integrated SSL option on the motherboard, the Sun Fire V240 server provides fast, secure Web transactions without sacrificing CPU cycles or a PCI slot. The standard System Configuration Card and serviceability features help enable quick upgrades and repairs, while the unit’s Sun Advanced Lights Out Manager (ALOM) provides remote management to a large number of servers from almost anywhere on the network.

Key Feature Highlights
• Rack-optimized, 2RU/25-in.-depth design
• Up to 1 x 1.34-or 2 x 1.5 GHz processors
• Up to 16 GB memory
• Up to 4 x 73/146-GB, hot-swap,
UltraSCSI disks
• Three full-length PCI slots (1 x 64- bit/66 MHz and 2 x 64-bit/33-MHz)
• Redundant power supplies and power cords
• Comes with SolarisTM Operating System, remote management, Sun JavaTM Enterprise System software, and
a variety of I/O connectivity – all standard

Sun V240 SPECS:

Sun V240 Processor
Number	One or two
Architecture	1GHz, 1.28GHz, 1.33GHz, or 1.5GHz UltraSPARC® IIIi, 64 bit, 4-way Superscalar SPARC® V9
Cache memory	64 KB data, 32 KB instruction and 1 MB integrated L2
Main Memory
Capacities	4 DIMM slots per processor, registered DDR-1 SDRAM (PC2100/PC2700) 128 bit + ECC databus System configurations from 512 MB to 16 GB
Standard Interfaces
Ethernet	Four 10/100/1000 BaseT Ethernet One 10 BaseT Ethernet (Network Management)
PCI	Three internal PCI 2.2 compliant expansion slots: One 64 bit 33/66 MHz 3.3V full-length Two 64 bit 33 MHz 5V full-lengthNote:Nominal power = maximum 25W per slot, maximum 45W across 3 slots
SCSI	One Ultra160 SCSI multimode (SE/LVD)
Serial	One TIA/EIA-232-F asynchronous (DB9) Port One TIA/EIA-232-F (RJ45) Port (Serial Management)
System Configuration Reader and Card	Front accessible for transfer of system configuration information, including host ID
USB	Two OHCI-1.0 Compliant Interfaces, supporting dual speeds of 12 and 1.5 Mbits/sec each
Internal Mass Storage
Disks	Up to four hot-swap Ultra160 SCSI 36GB, 73GB, or 146GB Disks
DVD-ROM	One Slim-line ATAPI DVD-ROM (Optional)
Environment
AC input	90 – 264 VAC (47 – 63 Hz)
Input power	546 W
Nominal power (calculated at 240V/50Hz)	Minimum configuration: 215 Watts (1 × 1.34GHz processor, 2 × 256MB DIMMs, 1 × 73GB HDD) Maximum configuration: 442 Watts (2 × 1.5GHz processors, 8 × 1GB DIMMs, 2 × 73GB HDDs, Crypto 500, 1 × DVD-ROM, 3 × PCI cards [max power spec 45W for three cards]) Typical Minimum configuration: 200 Watts (1 × 1.34GHz processor, 2 × 256MB DIMMs, 1 × 73GB HDD) Typical Maximum configuration: 329 Watts (2 × 1.5GHz processors, 8 × 1GB DIMMs, 2 × 73GB HDDs, Crypto 500, 1 × DVD-ROM, 3 × PCI cards [max power spec 45W for three cards])
Heat dissipation	Minimum configuration: 798 BTU/hr Maximum configuration: 1639 BTU/hr
Temperature	Operating: 5° C to 40° C (41° F to 104° F) Nonoperating: -40° C to 65° C (-40° F to 149° F)
Humidity	Operating: 10% to 90% relative humidity noncondensing, 27° C max wet bulb Nonoperating: Up to 93% relative humidity, noncondensing, 38° C max wet bulb
Altitude	Operating: Up to 3000 m, maximum ambient temperature is derated by 1° C per 500 m above 500 m Nonoperating: Up to 12000 m
Acoustic noise	Operating: Less than 7.3 B sound power in ambient temperature of up to 24° C
Regulations Meets or exceeds the following requirements:
Safety	IEC60950, UL/CSA60950, EN60950
Emissions	FCC Class A, Part 15 47 CFR, EN55022, CISPR 22
Immunity	EN55024
Certification	Safety: cULus Mark, TUV GS Mark, CE Mark EMC: CE Mark (93/68/EEC), FCC authorized Class A, VCCI, BSMI, CTICK
Dimensions and Weights
Height	87.66 mm (3.4 in.) (2 RU)
Width	425 mm (16.73 in.)
Depth	635 mm (25 in.)
Weight	19 kg (41.8 lb.) fully configured; 22.4 kg (49.31 lb.) with rack-mount rails and cable management arm

Batteries
Option #	Manufacturing Part #	Description
n/a	371-0090	3V Lithium Battery BR2032

Boot PROM
Socket	Manufacturing Part #	Patch
U55	254-0078	116056
U55	254-0090	116056

CPU Module
Option #	Manufacturing Part #	Description
X7406A	595-7222	1GHz processor for V210/V240 (includes 1 of the following CPUs)
	370-7786	CPU Fan/Heatsink
	527-1087	1.064GHz USIIIi
	527-1140	1.064GHz USIIIi
X7412A	595-7223	1.28GHz UltraSPARC IIIi processor upgrade kit with heatsink
	370-7786	CPU Fan/Heatsink
	527-1088	1.280GHz USIIIi

Cables
Option #	Manufacturing Part #	Description
X311L	Localized Power Cord Kit – North America/Asia, RoHS:Y
X311L	180-1097	IEC 320 C13 to NEMA 5-15P – 15A/125V 2.5M Black, RoHS:Y
X312L	Localized Power Cord Kit – Continental Europe, RoHS:Y
X312L	180-1993	IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black, RoHS:Y
X314L	Localized Power Cord Kit – Swiss, RoHS:Y
X314L	180-1994	IEC 320 C13 to SEV 1011 – 10A/250V 2.5M Black, RoHS:Y
X317L	Localized Power Cord Kit – U.K., RoHS:Y
X317L	180-1997	IEC 320 C13 to BS 1363 – 10A/250V 2.5M Black, RoHS:Y
X320A	Localized Power Cord Kit – North America/Asia, RoHS:Y
X320A	180-2164	IEC 320 C13 to NEMA 6-15P – 10A/250V 2.0M Black, RoHS:Y
X383L	Localized Power Cord Kit – Danish, RoHS:Y
X383L	180-1995	IEC 320 C13 to Asfnit 107 – 10A/250V 2.5M Black, RoHS:Y
X384L	Localized Power Cord Kit – Italian, RoHS:Y
X384L	180-1996	IEC 320 C13 to CEI 23-16/VII – 10A/250V 2.5M Black, RoHS:Y
X386L	Localized Power Cord Kit – Australian, RoHS:Y
X386L	180-1998	IEC 320 C13 to AS 3112 – 10A/250V 2.5M Black, RoHS:Y
X9280A	530-3387	4X SFF8470 to 12X SFF8470 InfiniBand Cable, 2 Meter
X9281A	530-3386	4X SFF8470 to 12X SFF8470 InfiniBand Cable, 5 Meter
n/a	370-5137	Cable Kit
n/a	530-1351	IEC 320 C13 to NEMA 6-15 – 10A/250V 2.0M Black, RoHS:Y
n/a	530-1819	Localized Power Cord Kit – Danish
n/a	530-2961	RJ45 Cat5 Ethernet Cable, RoHS:Y
n/a	530-3100	RJ45F to DB9F Adapter, RoHS:Y
n/a	530-3566	RME KEY SWITCH Cable, RoHS:Y

Card/Reader
Option #	Manufacturing Part #	Description
n/a	370-5127	System Configuration Card Reader
n/a	370-5155	System Configuration Card, RoHS:Y
n/a	371-0795	System Configuration Card with 10 MAC Addresses, RoHS:Y
n/a	371-0838	System Configuration Card Reader, RoHS:YL
n/a	371-3551	System Configuration Card with 10 MAC Addresses, Polycarbonate, RoHS:Y

Communication
Option #	Manufacturing Part #	Description
X1355A-2	371-0982	2M, 80-Pin, 4-Port, DB37, RS449 Breakout Cable,RoHS:Y
X1355A-2	375-3296	Quad Port High Speed Serial Interface PCI-X (HSI/U), RoHS:Y
X2156A-2	375-3420	Serial Asynchronous Interface PCI (SAI/P) 3.0, RoHS:Y
X1155A	370-2728	High Speed Serial Interface PCI (HSI/P) 2.0
X1157A	501-3028	SunATM-155/MFiber PCI 4.0
X1233A	375-3259	Dual Port 4x InfiniBand Host Channel Adapter
X2156A	375-0100	Serial Asynchronous Interface PCI (SAI/P) 3.0
X4011A	501-6039	Crypto Accelerator 4000 UTP (copper)
X4012A	501-6040	Crypto Accelerator 4000 MMF (fiber)
X4111A	501-6039	Crypto Accelerator 4000 UTP (copper)
X4112A	501-6040	Crypto Accelerator 4000 MMF (fiber)
X7405A	370-5464	Hardware Cryptographic Module (Crypto Accelerator 500)
X7405A-4	371-0991	Hardware Cryptographic Module (Crypto Accelerator 500), RoHS:YL

Disks
Option #	Manufacturing Part #	Description
X5267A	540-4904	36.4GB – 10000 RPM, Disk Assembly with 1 bracket, 1 of the following plates and 1 of the following disks:
	340-5928	Plate
	340-7269	Plate, RoHS:Y
	390-0109	Seagate ST336607LC [ST336607LSUN36G] (36.4GB – 10000 RPM – SCSI Disk)
	390-0111	Hitachi DK32EJ-36NC [DK32EJ36NFSUN36G] (36.4GB – 10000 RPM – SCSI Disk)
	390-0156	Fujitsu MAP3367NC [MAP3367N SUN36G] (36.4GB – 10000 RPM – SCSI Disk)
	540-3024	1″ SPUD Bracket, RoHS:Y
X5268A	540-6602	146.8GB – 10000 RPM, Disk Assembly with 1 bracket, 1 plate and 1 of the following disks, RoHS:Y
	341-1986	Plate, RoHS:Y
	390-0253	Fujitsu MAW3147NC [MAW3147NCSUN146G] (146GB – 10000 RPM – SCSI Disk), RoHS:Y
	390-0266	Hitachi HUS103014FL3800 [HUS10143ASUN146G] (146GB – 10000 RPM – SCSI Disk), RoHS:Y
	390-0276	Seagate ST3146707LC [ST314670LSUN146G] (146GB – 10000 RPM – SCSI Disk), RoHS:Y
	540-3024	1″ SPUD Bracket, RoHS:Y
XRA-SC1CB-73G10K	540-6600	73.4GB – 10000 RPM, Disk Assembly with 1 bracket, 1 plate and 1 of the following disks, RoHS:Y
	341-1986	Plate, RoHS:Y
	390-0252	Fujitsu MAW3073NC [MAW3073NCSUN73G] (73.4GB – 10000 RPM – SCSI Disk), RoHS:Y
	390-0265	Hitachi HUS103073FL3800 [HUS10733ASUN72] (73.4GB – 10000 RPM – SCSI Disk), RoHS:Y
	390-0275	Seagate ST373207LC [ST373207LSUN72G] (73.4GB – 10000 RPM – SCSI Disk), RoHS:Y
	540-3024	1″ SPUD Bracket, RoHS:Y
n/a	540-5455	73.4GB – 10000 RPM, Disk Assembly with 1 bracket, 1 of the following plates and 1 of the following disks:
	340-5928	Plate
	340-7269	Plate, RoHS:Y
	390-0106	Seagate ST373307LC [ST373307LSUN72G] (73.4GB – 10000 RPM – SCSI Disk)
	390-0108	Hitachi DK32EJ-72NC [DK32EJ72NSUN72G] (73.4GB – 10000 RPM – SCSI Disk)
	390-0157	Fujitsu MAP3735NC [MAP3735N SUN72G] (73.4GB – 10000 RPM – SCSI Disk)
	390-0174	Seagate ST373207LC [ST373207LSUN72G] (73.4GB – 10000 RPM – SCSI Disk)
	390-0175	Fujitsu MAT3073NC [MAT3073N SUN72G] (73.4GB – 10000 RPM – SCSI Disk)
	390-0176	Hitachi HUS103073FL3800 [HUS10733ASUN72G] (73.4GB – 10000 RPM – SCSI Disk)
	390-0252	Fujitsu MAW3073NC [MAW3073NCSUN73G] (73.4GB – 10000 RPM – SCSI Disk), RoHS:Y
	390-0265	Hitachi HUS103073FL3800 [HUS10733ASUN72] (73.4GB – 10000 RPM – SCSI Disk), RoHS:Y
	390-0275	Seagate ST373207LC [ST373207LSUN72G] (73.4GB – 10000 RPM – SCSI Disk), RoHS:Y
	540-3024	1″ SPUD Bracket, RoHS:Y
n/a	540-6064	146.8GB – 10000 RPM, Disk Assembly with 1 bracket, 1 plate, and 1 of the following disks:
	340-7269	Plate, RoHS:Y
	390-0154	Fujitsu MAP3147NC [MAP3147N SUN146G] (146.8GB – 10000 RPM – SCSI Disk)
	390-0155	Hitachi DK32EJ-14NC [DK32EJ14NSUN146G] (146.8GB – 10000 RPM – SCSI Disk)
	390-0177	Seagate ST3146707LC [STST314670LSUN146G] (146GB – 10000 RPM – SCSI Disk)
	390-0178	Fujitsu MAT3147NC [MAT3147N SUN146G] (146GB – 10000 RPM – SCSI Disk)
	390-0179	Hitachi HUS103014FL3800 [HUS10143ASUN146G] (146GB – 10000 RPM – SCSI Disk)
	390-0253	Fujitsu MAW3147NC [MAW3147NCSUN146G] (146GB – 10000 RPM – SCSI Disk), RoHS:Y
	390-0266	Hitachi HUS103014FL3800 [HUS10143ASUN146G] (146GB – 10000 RPM – SCSI Disk), RoHS:Y
	390-0276	Seagate ST3146707LC [ST314670LSUN146G] (146GB – 10000 RPM – SCSI Disk), RoHS:Y
	540-3024	1″ SPUD Bracket, RoHS:Y

Ethernet
Option #	Manufacturing Part #	Description
X4150A-2	501-7415	GigaSwift Ethernet UTP (GCS), RoHS:Y
X4151A-2	501-7430	GigaSwift Ethernet MMF (GFS), RoHS:Y
X4445A	501-6738	Quad GigaSwift PCI-X Ethernet (QGE-X), RoHS:Y
X1033A	501-5019	Sun FastEthernet PCI Adapter (FE/P) 2.0
X1034A	501-5406	Quad FastEthernet PCI (QFE/P)
X1141A	501-4373	Gigabit Ethernet PCI (GBE/P) 2.0
X1150A	501-5902	Sun GigaSwift Ethernet UTP (Copper)
X1151A	501-5524	Sun GigaSwift Ethernet MMF (Fiber)
X3150A	501-5902	Sun GigaSwift Ethernet UTP (Copper)
X3151A	501-5524	Sun GigaSwift Ethernet MMF (Fiber)
X4150A	501-6719	GigaSwift Ethernet UTP (GCS)
X4151A	501-6762	GigaSwift Ethernet MMF (GFS)
X4444A	501-6522	Quad GigaSwift Ethernet UTP (QGE)

Fan
Option #	Manufacturing Part #	Description
n/a	370-5134	60mm Fan
n/a	370-7678	Fan Tray Assembly/FRU
	371-0800	60mm Fan (x3), RoHS:Y
	n/a	Fan Tray
n/a	371-0837	CPU Fan/Heatsink, RoHS:Y
n/a	371-0992	Fan Tray Assembly/FRU, RoHS:Y
	371-0800	60mm Fan (x3), RoHS:Y
	n/a	Fan Tray
n/a	F370-5126	CPU Fan/Heatsink FRU
	370-5126	CPU Fan/Heatsink
	370-7786	CPU Fan/Heatsink

Fibre Channel
Option #	Manufacturing Part #	Description
SG-XPCI1FC-EM4-Z	375-3398	4Gb PCI-X Single FC Host Adapter, RoHS:Y
SG-XPCI1FC-QF4	375-3354	4Gb PCI-X Single FC Host Adapter, RoHS:Y
SG-XPCI2FC-EM4-Z	375-3399	4Gb PCI-X Dual FC Host Adapter, RoHS:Y
SG-XPCI2FC-QF4	375-3294	4Gb PCI-X Dual FC Host Adapter, RoHS:Y
SG-XPCI1FC-EM2	375-3304	2Gb PCI-X Single FC Host Adapter, RoHS:Y
SG-XPCI1FC-JF2	375-3156	JNI 2Gb PCI Single FC Host Adapter
SG-XPCI1FC-JN2	370-5702	JNI 2Gb PCI Single FC HBA
SG-XPCI1FC-QF2	375-3102	2Gb PCI Single FC Host Adapter
SG-XPCI1FC-QL2	375-3383	2Gb PCI-X Single FC Host Adapter, RoHS:Y
SG-XPCI2FC-EM2	375-3305	2Gb PCI-X Dual FC Host Adapter, RoHS:Y
SG-XPCI2FC-JF2	375-3157	JNI 2Gb PCI Dual FC Host Adapter
SG-XPCI2FC-QF2	375-3108	2Gb PCI Dual FC Host Adapter
SG-XPCI2FC-QF2	240-4839	Low Profile Bracket, RoHS:Y
SG-XPCI2FC-QF2-Z	375-3363	2Gb PCI Dual FC Host Adapter, RoHS:Y
SG-XPCI2FC-QF2-Z	240-4839	Low Profile Bracket, RoHS:Y
X6727A	375-3030	PCI Dual FC Host Adapter+, RoHS:YL
X6767A	375-3102	2Gb PCI Single FC Host Adapter
X6768A	375-3108	2Gb PCI Dual FC Host Adapter
X6768A	240-4839	Low Profile Bracket, RoHS:Y
X6799A	375-3019	PCI Single FC Host Adapter

Graphics
Option #	Manufacturing Part #	Description
X3685A	375-3069	XVR-500 Graphics Accelerator
X3768A	370-4362	PGX64 8/24-Bit Color Frame Buffer
X3769A	375-3126	XVR-100 Graphics Accelerator (32MB)
X3770A	375-3181	XVR-100 Graphics Accelerator (64MB)
X3780A	375-3153	XVR-600 Graphics Accelerator
X7296A	375-3290	XVR-100 Graphics Accelerator (64MB), RoHS:Y

I/O
Option #	Manufacturing Part #	Description
n/a	370-5465	PCI Riser Board
n/a	370-7087	PCI Riser Board
n/a	371-0799	2-Slot PCI Riser, RoHS:YL
n/a	F370-5183	Interface Boards FRU
	370-5130	Upper Interface Board
	370-5183	Lower Interface Board

Memory
Option #	Manufacturing Part #	Description
X7402A	512MB DDR Memory Option (2 × 256MB DIMMs)
X7402A	370-5565	256MB Registered DDR DIMM (SPD 0.0)
X7403A	1GB DDR Memory Option (2 × 512MB DIMMs)
X7403A	370-4939	512MB Registered DDR DIMM (SPD 0.0)
X7404A	2GB DDR Memory Option (2 × 1GB DIMMs)
X7404A	370-4940	1GB Registered DDR DIMM (SPD 0.0)
X7602A	512MB DDR Memory Option, SPD 1.0 (2 × 256MB DIMMs)
X7602A	370-6201	256MB Registered DDR DIMM (SPD 1.0)
X7603A	1GB DDR Memory Option, SPD 1.0 (2 × 512MB DIMMs)
X7603A	370-6202	512MB Registered DDR DIMM (SPD 1.0)
X7604A	2GB DDR Memory Option, SPD 1.0 (2 × 1GB DIMMs)
X7604A	370-6203	1GB Registered DDR DIMM (SPD 1.0)
X7702A	512MB DDR Memory Option, SPD 0.0 or 1.0 (2 × 256MB DIMMs)
X7702A	370-7680	256MB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster
X7702A-4	512MB DDR1 Memory Option, (2 × 256MB DIMMs), RoHS:YL
X7702A-4	371-1115	256MB Registered ECC DDR1 DIMM (SPD 0.0 or 1.0) PC2100 & faster, RoHS:YL
X7703A	1GB DDR Memory Option, SPD 0.0 or 1.0 (2 × 512MB DIMMs)
X7703A	370-7670	512MB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster
X7703A-4	1GB DDR Memory Option, (2 × 512MB DIMMs), RoHS:YL
	370-7972	512MB PC2700 DIMM, RoHS:Y
	371-1116	512MB Registered ECC DDR1 DIMM (SPD 0.0 or 1.0) PC2100 & faster, RoHS:YL
X7704A	2GB DDR Memory Option, SPD 0.0 or 1.0 (2 × 1GB DIMMs)
X7704A	370-7671	1GB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster
X7704A-4	2GB DDR1 Memory Option, (2 × 1GB DIMMs), RoHS:YL
	370-7973	1GB PC2700 DIMM, RoHS:Y
	371-1117	1GB Registered ECC DDR1 DIMM (SPD 0.0 or 1.0) PC2100 & faster, RoHS:YL
X7711A-4	4GB DDR Memory Option, SPD 0.0 or 1.0 (2 × 2GB DIMMs), RoHS:YL
	370-7672	2GB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster, RoHS:YL
	370-7974	2GB PC2700 DIMM, RoHS:Y
n/a	540-6228	512MB DDR FRU, SPD 1.0 (2 × 256MB DIMMs)
n/a	370-6201	256MB Registered DDR DIMM (SPD 1.0)
n/a	540-6229	1GB DDR FRU, SPD 1.0 (2 × 512MB DIMMs)
n/a	370-6202	512MB Registered DDR DIMM (SPD 1.0)
n/a	540-6230	2GB DDR FRU, SPD 1.0 (2 × 1GB DIMMs)
n/a	370-6203	1GB Registered DDR DIMM (SPD 1.0)
n/a	540-6399	512MB DDR FRU, SPD 0.0/1.0 (2 × 256MB DIMMs)
n/a	370-7680	256MB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster
n/a	540-6400	1GB DDR FRU, SPD 0.0/1.0 (2 × 512MB DIMMs)
n/a	370-7670	512MB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster
n/a	540-6401	2GB DDR FRU, SPD 0.0/1.0 (2 × 1GB DIMMs)
n/a	370-7671	1GB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster
n/a	540-6402	4GB Memory FRU (2 × 2GB DIMMs), RoHS:YL
	370-7672	2GB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster, RoHS:YL
	370-7974	2GB PC2700 DIMM, RoHS:Y
n/a	540-6775	512MB Memory FRU (2 × 256MB DIMMS), RoHS:YL
n/a	371-1115	256MB Registered ECC DDR1 DIMM (SPD 0.0 or 1.0) PC2100 & faster, RoHS:YL
n/a	540-6776	1GB Memory FRU (2 × 512MB DIMMS), RoHS:YL
	370-7972	512MB PC2700 DIMM, RoHS:Y
	371-1116	512MB Registered ECC DDR1 DIMM (SPD 0.0 or 1.0) PC2100 & faster, RoHS:YL
n/a	540-6777	2GB Memory FRU (2 × 1GB DIMMS), RoHS:YL
	370-7973	1GB PC2700 DIMM, RoHS:Y
	371-1117	1GB Registered ECC DDR1 DIMM (SPD 0.0 or 1.0) PC2100 & faster, RoHS:YL

Miscellaneous
Option #	Manufacturing Part #	Description
X2132A	375-3051	SunPCi IIpro 733MHz coprocessor card
X7042A	370-4294	SunPCi II 128MB memory expansion
X7044A	370-4295	SunPCi II 256MB memory expansion
X7045A	370-4430	SunPCi IIpro 512MB memory expansion
n/a	371-2356	PCI Card Rail and Clip

Power
Option #	Manufacturing Part #	Description
X7407A	300-1568	400W AC Input Power Supply Type A178
X7428A	300-1674	400W AC Input Power Supply Type A192
X7428A-4	300-1846	400W AC Power Supply Type A192, RoHS:YL
n/a	370-5138	DC Power Distribution Board

Rack
Option #	Manufacturing Part #	Description
n/a	371-0066	Rack Mount/Cable Management Kit, RoHS:Y
	370-7668	Cable Management Arm, RoHS:Y
	370-7669	Slide Rail Kit, RoHS:Y

Removable Media
Option #	Manufacturing Part #	Description
X7410A	370-5128	Internal Slimline DVD-ROM (ATAPI)
X7410A-4	371-1108	Internal 8X Slimline DVD-ROM/CD-ROM, RoHS:YL
	371-0721	8X Slimline DVD-ROM/CD-ROM, RoHS:YL
	390-0400	8X Slimline DVD-ROM/CD-ROM, RoHS:Y

SCSI
Option #	Manufacturing Part #	Description
SGXPCI2SCSILM320-Z	375-3365	PCI Dual Ultra320 SCSI Adapter, RoHS:YL
X4422A-2	501-7490	Dual GigabitEthernet / Dual SCSI PCI Adapter, RoHS:Y
SG-XPCI2SCSI-LM320	375-3191	PCI/PCI-X Dual Ultra320 SCSI Adapter
X1032A	501-5656	Single-Ended Ultra/Wide SCSI/FastEthernet (SunSwift PCI)
X2222A	501-5727	Dual FastEthernet / Dual SCSI PCI Adapter
X4422A	501-6635	Dual GigabitEthernet / Dual SCSI PCI Adapter
X6540A	375-0005	Dual Single-Ended Ultra/Wide SCSI (PCI)
X6541A	375-0006	Dual Differential Ultra/Wide SCSI (UDWIS/P)(HVD)
X6758A	375-3057	PCI Dual Ultra3 SCSI Host Adapter (LVD)

System Board
Option #	Manufacturing Part #	Description
n/a	375-3120	Motherboard w/ 2 × US IIIi 1.28GHz, 0MB (Tomatillo 2.3)
	371-0837	CPU Fan/Heatsink, RoHS:Y
	375-3148	0MB Motherboard, Tomatillo 2.3
	527-1088	1.280GHz USIIIi
	F370-5126	CPU Fan/Heatsink FRU
	370-5126	CPU Fan/Heatsink
	370-7786	CPU Fan/Heatsink
n/a	375-3149	Motherboard w/ 1 × US IIIi 1GHz, 0MB (Tomatillo 2.3)
	371-0837	CPU Fan/Heatsink, RoHS:Y
	375-3148	0MB Motherboard, Tomatillo 2.3
	527-1087	1.064GHz USIIIi
	F370-5126	CPU Fan/Heatsink FRU
	370-5126	CPU Fan/Heatsink
	370-7786	CPU Fan/Heatsink
n/a	375-3150	Motherboard w/ 2 × US IIIi 1GHz, 0MB (Tomatillo 2.3)
	371-0837	CPU Fan/Heatsink, RoHS:Y
	375-3148	0MB Motherboard, Tomatillo 2.3
	527-1087	1.064GHz USIIIi
	F370-5126	CPU Fan/Heatsink FRU
	370-5126	CPU Fan/Heatsink
	370-7786	CPU Fan/Heatsink
n/a	375-3225	Motherboard w/ 1 × US IIIi 1.336GHz, 0MB
	370-7016	CPU Fan/Heatsink
	370-7786	CPU Fan/Heatsink
	371-0837	CPU Fan/Heatsink, RoHS:Y
	375-3228	0MB Motherboard, Tomatillo 2.3
	527-1169	1.336GHz US IIIi, RoHS:Y
n/a	375-3227	Motherboard w/ 2 × US IIIi 1.503GHz, 0MB
	370-7016	CPU Fan/Heatsink
	370-7786	CPU Fan/Heatsink
	371-0837	CPU Fan/Heatsink, RoHS:Y
	375-3228	0MB Motherboard, Tomatillo 2.3
	527-1170	1.503GHz USIIIi, RoHS:Y
n/a	375-3247	Motherboard w/ 2 × US IIIi 1.28GHz, 0MB (Tomatillo 2.3)
	370-7786	CPU Fan/Heatsink
	371-0837	CPU Fan/Heatsink, RoHS:Y
	375-3246	0MB Motherboard, Tomatillo 2.3
	527-1088	1.280GHz USIIIi
n/a	375-3248	Motherboard w/ 1 × US IIIi 1GHz, 0MB (Tomatillo 2.3)
	370-7786	CPU Fan/Heatsink
	371-0837	CPU Fan/Heatsink, RoHS:Y
	375-3246	0MB Motherboard, Tomatillo 2.3
	527-1087	1.064GHz USIIIi
n/a	375-3249	Motherboard w/ 2 × US IIIi 1GHz, 0MB (Tomatillo 2.3)
	370-7786	CPU Fan/Heatsink
	371-0837	CPU Fan/Heatsink, RoHS:Y
	375-3246	0MB Motherboard, Tomatillo 2.3
	527-1087	1.064GHz USIIIi
n/a	375-3281	Motherboard w/ 2 × US IIIi 1.28GHz, 0MB (Tomatillo 2.3)
	370-7786	CPU Fan/Heatsink
	371-0837	CPU Fan/Heatsink, RoHS:Y
	375-3297	0MB Motherboard, Tomatillo 2.3
	527-1170	1.503GHz USIIIi, RoHS:Y
n/a	375-3344	Motherboard w/ 1 × US IIIi 1.336GHz, 0MB, RoHS:YL
	371-0837	CPU Fan/Heatsink, RoHS:Y
	375-3325	0MB Motherboard, Tomatillo 2.3, RoHS:YL
	527-1169	1.336GHz US IIIi, RoHS:Y
n/a	375-3346	Motherboard w/ 2 × US IIIi 1.503GHz, 0MB, RoHS:YL
	371-0837	CPU Fan/Heatsink, RoHS:Y
	375-3325	0MB Motherboard, Tomatillo 2.3, RoHS:YL
	527-1170	1.503GHz USIIIi, RoHS:Y
n/a	375-3465	Motherboard w/ 1 × US IIIi 1.336GHz, 0MB, RoHS:YL
	371-0837	CPU Fan/Heatsink, RoHS:Y
	375-3459	0MB Motherboard, Tomatillo 2.3, RoHS:YL
n/a	375-3467	Motherboard w/ 2 × US IIIi 1.503GHz, 0MB, RoHS:YL
	371-0837	CPU Fan/Heatsink, RoHS:Y
	375-3459	0MB Motherboard, Tomatillo 2.3, RoHS:YL
	527-1279	1.503GHz USIIIi, RoHS:Y

Industry Leading Quality, Support and Integrity

Quality Inspection Checklist
Before it leaves our facility, every used and refurbished item is thoroughly inspected by our certified technicians and undergoes our exclusive Quality Inspection Checklist to ensure 100% satisfaction guarantee.

Greentec Systems is a leading provider
For server, networking and storage equipment. We have an extensive array of inventory of IBM Servers & Storage, Sun Servers & Storage, Cisco Networking (Switches, Routers, Security), and NetApp Storage (disk shelves, disk drives, Filers, NearStore, NetCache). If you don’t see the item or product you require please contact us.

Have this equipment to sell?
Depending on the age and condition of the equipment, there is a very good likelihood that we will be able to offer you cash or trade-in credit for other IT hardware. If the equipment is very old we can also assist you with properly decommissioning that gear in the most environmentally friendly way possible.

Questions?
For more information please contact 888.333.7388, or fill out the quote from above. We’d love to hear from you.
