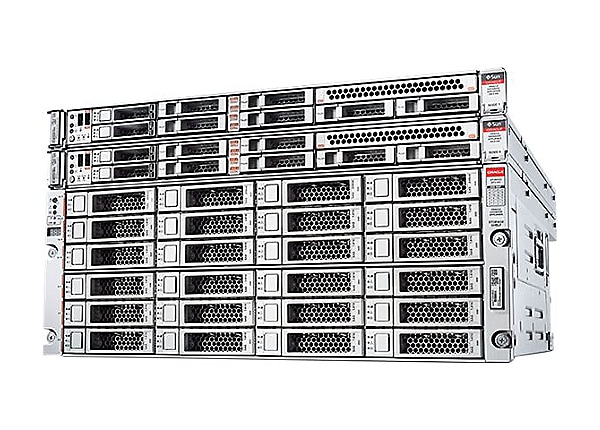

The Oracle Storage Drive Enclosure DE3-24C is a 4U chassis that supports 24 3.5″ SAS-3 drives. The high-performance HDDs provide reliable storage. The SSDs provide accelerated write operations, and for some controllers, read-optimized cache operations. This disk shelf features dual, redundant I/O Modules (IOMs), and dual power supply with fan modules.
Figure 4 DE3-24C Drive Locations (Front View)
Up to four write-optimized log SSDs are supported per disk shelf. Log devices should be populated in order of slots 20, 21, 22, and 23.
Read-optimized cache SSDs can also be installed in the DE3-24C disk shelf, for some controllers. For slot configuration details and minimum software requirements,
Figure 5 DE3-24C Status Indicators (Front View)
|
||||||||||||
Figure 6 DE3-24C Rear Panel
|
||||||||||||
Note – It is especially important that power supplies and their filler panels are in the correct slots.
Figure 7 DE3 I/O Module Indicators
|
||||||||||||||||||
The DE3-24C and DE3-24P disk shelves use the same I/O Module.
Figure 8 DE3 Power Supply Indicators
This section introduces the front and rear panel components of the DE3-24P and DE3-24C disk shelves.
The Oracle Storage Drive Enclosure DE3-24P is a 2U chassis that supports 24 2.5” SAS-3 drives. The high-performance HDDs provide reliable storage. The SSDs provide accelerated write operations, and for some controllers, read-optimized cache operations. This disk shelf features dual, redundant I/O Modules (IOMs), and dual power supply with fan modules.
Figure 1 DE3-24P Drive Locations (Front View)
Up to four write-optimized log SSDs are supported per disk shelf. Log devices should be populated in order of slots 20, 21, 22, and 23.
Read-optimized cache SSDs can also be installed in the DE3-24P disk shelf, for some controllers. For slot configuration details and minimum software requirements, see
Figure 2 DE3-24P Status Indicators (Front View)
|
||||||||||||
Figure 3 DE3-24P Rear Panel
