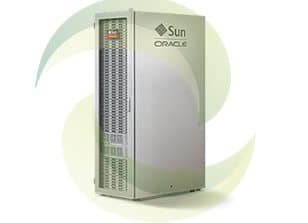

Sun ZFS Storage 7420 Appliance

Oracle’s Sun ZFS Storage 7420 appliance scales to 2.6 PB and uses Hybrid Storage Pools with Flash-based caches to dramatically improve application response times. Powerful controllers and software simplify storage management for physical and virtual servers, and run multiple data services in high-availability environments to increase efficiency and flexibility.

Feature	Benefit
Only NAS platform with Hybrid Columnar Compression	Dramatically lowers storage footprint, cost, and complexity, and provides 3x to 5x higher efficiency on Oracle Databases
Hybrid Storage Pools	Built-in tiered storage with automated data placement across DRAM, Flash, and disk
DTrace storage analytics	Intuitive, visual analysis of performance and capacity for rapid troubleshooting and simplified management.
Advanced data services	Inline deduplication and ZFS compression save on space and cost in storage consolidation and virtualization environments
Multi-protocol and connectivity support	Seamlessly integrates any into any file or block environments, including iSCSI, InfiniBand, and fibre channel
ZFS file system	Provides advanced error detection, self-healing, triple-RAID parity and triple-mirroring for high availability.
Best-in-class hardware architecture	Better storage consolidation and overall performance, with 10x more memory cores than NetApp FAS 3270 and up to 3.4 PB of raw capacity
2x better SPC-1 IOPS performance and price/performance with the Sun ZFS Storage 7420 M2 Appliance* than NetApp FAS 3270A** in SAN environments	Fewer and smaller storage devices needed to support business critical databases and applications, resulting in lower TCO
Oracle integration	Faster Oracle Database backup and recovery and superior streaming performance for Exadata backup and recovery
Better price-performance – 4x than NetApp on Exadata Backup and Restore and 2x better* than NetApp FAS 3270A** SPC-1 in SAN configurations	Lower total cost of ownership
High-availability	Cluster-ready system

Processor

Number

2 or 4 6-Core or 8-Core

Architecture

Type: Intel Xeon 7500 Processor Series

CPUs

Intel 1.86GHz 6-Core Xeon E7530, 105W
Intel 2.00GHz 8-Core Xeon X7550, 130W

Cache memory

256KB unified (data and instruction) Level 2 cache
12MB, 18MB or 24MB shared inclusive Level 3 cache

Main Memory

Capacities

DIMM slots: 64 DIMM slots, 16 DIMMs per CPU
DIMM type: Registered DDR3-1066/PC3-10600 ECC DIMMs
Registered DDR3-1066/PC3-8500 ECC DIMMs
DIMM size: 4GB or 8GB
Maximum capacity: 512GB

Standard Integrated Interfaces

Network

Four Integrated 10/100/1000 Base-T Gigabit Ethernet

Network Management

One 10/100 Base-T Ethernet management port

Serial Management

One TIA/EIA-232-F asynchronous RJ45 serial port

USB

Front: 2 USB 2.0 Ports
Rear: 2 USB 2.0 Ports
Internal: 1 USB 2.0 Port

PCI Express

10 PCI Express 2.0 Slots

2 slots (3 and 5) are either x8 or x16 electrical interface (x16 connector)
6 slots are x8 PCI-E slots
2 slots are x4 PCI-E slots

Note: Slots 3 and 5 operate as x16 interfaces only when an x16 capable card is
installed and the adjacent slot (4 or 6) is unpopulated.

Video

One Rear and One Front HD15 VGA port

Internal Mass Storage

Disks

Up to 6 hot-swappable disks

Drive Type	Density	Speed	Form Factor
SAS	1TB, 2TB	7,200 RPM	2.5″
SATA	500GB	7,200 RPM	2.5″
SSD (Solid State Drives)	512GB	NA	2.5″

Power Supplies

Dual redundant, hot swappable power supplies
2000W Capacity (From 200 Volts to 240 Volts)

Environment

AC power

100-127 VAC/200-240 VAC (50-60Hz)

Maximum Input Current

12A @ 100VAC / 12A @ 200VAC

Maximum Power Consumption

1800W

Maximum Heat Output

6143 BTU/hr

Temperature

Single, non-rack system:
Operating: 5° C to 35° C (41° F to 95° F)
Nonoperating: -40° C to 68° C (-40° F to 154° F)

Humidity

Single, non-rack system:
Operating: 10% to 90% relative humidity noncondensing
Nonoperating: up to 93% relative humidity noncondensing

Altitude

Single, non-rack system:
Operating: Up to 3048 m (10,000 ft.), maximum operating temperature is derated by 1° C for every 300 m (985 ft) above 900 m (2,952 ft).
Nonoperating: Up to 12,000 m (39,370 ft.)

Acoustic Noise Emissions

LwAd (1B= 10dB) at max ambient: 8.9 B (idle and operating room temperature)
LpAm bystander at max ambient: 75 dBA

Regulations
Meets or exceeds the following requirements:

Safety

IEC 60950, UL/CSA60950, EN60950, CB scheme with all country differences

RFI/EMI

FCC CFR 47 Part 15 Class A, EN55022 Class A, EN300-386, EN 61000-3-2, EN 61000-3-3

Immunity

EN 55024 ,EN 300 386

Certifications

Safety: UL/cUL, UL DEMKO, CCC, CE, BSMI, GOST-R, S-Mark
EMC: CE, FCC, VCCI, ICES, C-Tick, MIC, CCC, GOST-R, BSMI Class A
Other: Labeled per WEEE (Waste Electrical and Electronic Equipment) Directive (2002/96/EC) and RoHS Directive (2002/95/EC)

RoHS Compliance Level

RoHS:Y

Dimensions and Weight

Height

129.85 mm (5.1 in.)

Width

436.5 mm (17.2 in.)

Depth

732 mm (28.8 in.)

Weight

Maximum: 38.5 kg (85 lb.)
Minimum: 29.5 kg (65 lb.)

Array Controller
Option #	Manufacturing Part #	Description
n/a	542-0194	6Gbps SAS-2 Interface Module (SIM), RoHS:Y

CPU Module
Option #	Manufacturing Part #	Description
X2341A	2 × 1.86 GHz 6-Core Xeon E7530 CPU Modules X-Option, RoHS:Y
	310-0228	CPU Heatsink, RoHS:Y
	371-4721	1.86 GHz 6-Core Xeon E7530 CPU Module, RoHS:Y
X2342A	2 × 2.0 GHz 8-Core Xeon X7550 CPU Modules X-Option, RoHS:Y
	310-0228	CPU Heatsink, RoHS:Y
	371-4692	2.00GHz 8-Core Xeon X7550 CPU Module, RoHS:Y
	310-0225	CPU Heatsink, RoHS:Y

Cables
Option #	Manufacturing Part #	Description
XTA-2.0M-SAS	530-3883	4X Mini SAS Cable, SFF-8088 to SFF-8088, 2M, RoHS:Y
n/a	530-4118	4x Mini SAS Cable, SFF-8087 to SFF-8087, 780mm, RoHS:Y

Communication
Option #	Manufacturing Part #	Description
X4237A-N	375-3606	Sun Dual Port 40Gb/sec 4x Infiniband QDR Host Channel Adapter PCI Express, RoHS:Y
n/a	511-1496	Cluster Heatbeat Card

Disk Backplane
Option #	Manufacturing Part #	Description
n/a	511-1246	6-Slot Disk Backplane

Disks
Option #	Manufacturing Part #	Description
XTA7000-READZ512	542-0330	512GB Solid State Drive Assembly, SATA-2, RoHS:Y
	371-4769	Toshiba THNS512GG8BB (512GB Solid State Drive), SATA-2 Interface, RoHS:Y
	541-2123	Marlin Bracket 2.5″, RoHS:Y
n/a	350-1574	Disk Shelf SSD Filler Panel
n/a	541-4242	Disk Shelf HDD Filler Panel, RoHS:Y
n/a	542-0274	2TB – 7200 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:
	390-0476	Seagate ST32000444SS [ST32000SSSUN2.0T] (2TB – 7200 RPM – SAS Disk)
	350-1508	Stingray Mounting Bracket
n/a	542-0340	1TB – 7200 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:
	390-0475	Seagate ST31000424SS [ST31001SSSUN1.0T] (1TB – 7200 RPM – SAS Disk), RoHS:Y
	350-1508	Stingray Mounting Bracket
n/a	542-0371	500GB – 7200 RPM SATA Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:Y
	390-0468	Seagate ST9500530NS [ST95000NSSUN500G] (500GB – 7200 RPM – SATA Disk), RoHS:Y
	541-2123	Marlin Bracket 2.5″, RoHS:Y

Ethernet
Option #	Manufacturing Part #	Description
X1109A-Z	375-3617	Dual 10-Gigabit Ethernet SFP+ LP, RoHS:Y
X2129A-N	530-4449	10Gbps Short Wave Pluggable (SFP+) Transceiver, RoHS:Y
X4446A-Z-N	375-3481	PCI Express Quad Gigabit Ethernet UTP, RoHS:Y

Fan
Option #	Manufacturing Part #	Description
n/a	541-3535	Fan Cage Assembly, RoHS:Y
	511-1243	Fan Board with USB and VGA, RoHS:Y
	530-4349	Flex Circuit, RoHS:Y
n/a	541-3539	92mm Fan Module, RoHS:Y

Fibre Channel
Option #	Manufacturing Part #	Description
SG-XPCIE2FC-QF8-Z	371-4325	8Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y

Memory
Option #	Manufacturing Part #	Description
X2350A	2 × Memory Riser X-Option, RoHS:Y
	541-3819	Memory Riser, RoHS:Y
	341-5773	Memory Riser Tray, RoHS:Y
	511-1241	Memory Riser Board, RoHS:Y
X2352A	330-4839	Memory Slot Filler, RoHS:Y
X8504A	8GB (2 × 4GB DDR3-1066) Memory Kit X-Option, RoHS:Y
	542-0245	2 × 4GB DDR3-1066 DIMMs, RoHS:Y
	371-4775	4GB DDR3-1066 DIMM, RoHS:Y
X8505A	16GB (2 × 8GB DDR3-1066) Memory Kit X-Option, RoHS:Y
	542-0246	2 × 8GB DDR3-1066 DIMMs, RoHS:Y
	371-4776	8GB DDR3-1066 DIMM, RoHS:Y
n/a	371-4743	4GB USB 2.0 Flash Drive, RoHS:Y

Power
Option #	Manufacturing Part #	Description
n/a	300-2228	A239A 2000W AC Input Power Supply, RoHS:Y
n/a	300-2276	764W AC Input Power Supply and Fan Assembly, RoHS:Y
n/a	541-3541	Power Distribution Board Assembly, RoHS:Y
	371-4446	Bus Bar, RoHS:Y
	511-1242	Power Distribution Board, RoHS:Y

Rack
Option #	Manufacturing Part #	Description
DS2X-4URK-19U	350-1531	Rackmount Kit, RoHS:Y
	n/a	Right Mounting Rail
	n/a	Left Mounting Rail
X2364A	371-4812	Cable Management Arm, RoHS:Y
n/a	371-4791	Tool-less Slide Rail Rack Mount Kit, RoHS:Y

SCSI
Option #	Manufacturing Part #	Description
SG-XPCIESAS-GEN2-Z	375-3609	8-Port 6Gbps SAS-2 RAID HBA, RoHS:Y

System Board
Option #	Manufacturing Part #	Description
n/a	541-3540	System Board Assembly, RoHS:Y
	150-3993	Panasonic BR2032 Battery, RoHS:Y
	341-5567	System Board Tray, RoHS:Y
	511-1240	System Board, RoHS:Y
	511-1245	Rear I/O Board, RoHS:Y
	530-3510	Magnetic Interlock Switch, RoHS:Y
	530-4348	System Board to Rear I/O Board Signal Cable, RoHS:Y

	Small	Medium	Large
System List Price from Oracle	US$18,235.00	US$75,050.00	US$126,600.00
Greentec Discounted Price	US$CALL	US$CALL	US$CALL
Processor	Single storage controller, with four 8-core 2.0 GHz processors	Dual (High Availability Cluster) storage controller, with four 8-core 2.0 GHz processors per controller	Dual (High Availability Cluster) storage controller, with four 10-core 2.4 GHz processors
Max # of Processors	Up to four 8-core 2.0 GHz or 10-core 2.4 GHz	Up to four 8-core 2.0 GHz or 10-core 2.4 GHz	Up to four 8-core 2.0 GHz or 10-core 2.4 GHz
Memory	128 GB	256 GB, 1 TB read flash cache per storage controller, and 146 GB write flash cache	1 TB DRAM, 1 TB read flash cache per storage controller, 146 GB write flash
Max Memory	Up to 1 TB, up to 2 TB read flash cache per storage controller, up to 292 GB write flash cache per disk shelf	Up to 1 TB, up to 2 TB read flash cache per storage controller, up to 292 GB write flash cache per disk shelf	Up to 1 TB, up to 2 TB read flash cache per storage controller, up to 292 GB write flash cache per disk shelf
Mass Storage	7.2 TB raw capacity, high performance disk drives	26.4 TB raw capacity, high performance drives	276 TB raw capacity
Disk Tray	One disk tray with 20 x 300 GB 15,000 RPM HDDs	One disk tray with 20 x 600 GB 15,000 RPM HDDs and two write flash accelerators. One disk tray with 24 x 600 GB 15,000 RPM HDDs	One disk tray with 20 x 2 TB HDDs and two write flash accelerators. Three disk trays with 24 x 2 TB HDDs per tray
Network & I/O Options	Four integrated GbE ports, eight PCIe for expansion	Four integrated GbE ports, eight PCIe for expansion	Four integrated GbE ports, eight PCIe for expansion
Interface	Four integrated GbE ports	Four integrated GbE ports, one 10 GbE NIC with two short range optical transceivers, per controller	Four integrated GbE ports, one 10 GbE NIC with two short range optical transceivers, per controller
I/O Slot	Eight PCIe for expansion	Eight PCIe slots for expansion, per controller	Eight PCIe slots for expansion, per controller
Power/Cooling	Redundant, hot-swap power supply and fans	Redundant, hot-swap power supply and fans	Redundant, hot-swap power supply and fans
Physical Specifications	7 rack units	14 rack units	22 rack units
Operating System/Software	NFS, CIFS, Fibre Channel, HTTP/WebDAV, FTP, iSCSI, Deduplication, Storage Analytics, Virus Protection, Snapshots, Compression, RAID, NDMP, Triple-parity RAID, Triple-mirroring, Shadow Migration Note: Replication and Cloning are separately licensed features.	NFS, CIFS, Fibre Channel, HTTP/WebDAV, FTP, iSCSI, Deduplication, Storage Analytics, Virus Protection, Snapshots, Compression, RAID, NDMP, Triple-parity RAID, Triple-mirroring, Shadow Migration Note: Replication and Cloning are separately licensed features.	NFS, CIFS, Fibre Channel, HTTP/WebDAV, FTP, iSCSI, Deduplication, Storage Analytics, Virus Protection, Snapshots, Compression, RAID, NDMP, Triple-parity RAID, Triple-mirroring, Shadow Migration Note: Replication and Cloning are separately licensed features.
