Oracle’s SPARC T4-1B and Oracle’s Sun Blade 6000 chassis deliver an integrated platform with a high degree of scalability, density, deployment flexibility, and energy efficiency to meet the high demands of secure, high availability, enterprise data center applications. The highest-density SPARC T4 server available in a compact blade form factor, the SPARC T4-1B delivers a 5x improvement in single- thread performance, massive throughput, and no-cost virtualization running on the proven, missioncritical Oracle Solaris operating system.

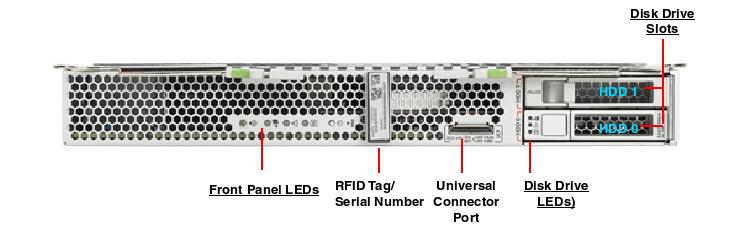

Product Overview The single-socket SPARC T4-1B server module delivers massive compute density with 8 cores and 64 simultaneous threads in a highly efficient blade server design. The SPARC T4 processor is designed for a broad range of data center application workloads including database, middleware, and web tier applications. With a 5x single-thread performance improvement over the previous generation, the SPARC T4 systems now provide infrastructure for secure end-to-end data center deployments. The SPARC T4-1B features one SPARC T4 processor, 16 DIMM slots for up to 512 GB memory, and two drive slots for hot-pluggable 2.5 inch drives. The SPARC T4-1B blade is both compact and powerful. With optional on-board 10 GbE and/or PCIe networking and built-in SAS2 RAID controller, the SPARC T4-1B has the power required to drive computing requirements for database, middleware, and web based applications. The SPARC T4-1B, Oracle Solaris, and Oracle VM Server for SPARC are optimized for the enterprise for demanding workloads. The SPARC T4-1B comes ready with Oracle Solaris Containers and Oracle VM technology, for faster and more-reliable consolidation and virtualization in your IT infrastructure at no extra cost. The Sun Blade 6000 and SPARC T4-1B are enterprise ready. Combining the chassis-based RAS features with Oracle Integrated Lights Out Management (ILOM), the Sun Blade 6000 and SPARC T4-1B are designed to maximize uptime and simplify system management in a highly cost-efficient blade infrastructure.

Sun Blade 6000 Modular Architecture – Optimized Efficiency The SPARC T4-1B installs in the highly efficient Sun Blade 6000 chassis supporting up to 10 full-featured, top-performance Oracle blade server modules, and PCIe Gen2, in a compact 10U chassis, with I/O throughput up to 282Gb/sec. The Sun Blade 6000 provides up to 6.4 terabit-per-second headroom for future CPU and I/O architectures. Designed for high reliability and efficiency, the Sun Blade 6000 provides a flexible, modular network infrastructure. With the Sun Blade 6000 chassis and SPARC T4-1B blade server, customers are able to greatly reduce their time-to-revenue and virtually eliminate downtime for I/O upgrades.

SPARC T4-1B Specifications Key Applications ? Virtualization and consolidation ? Single-threaded workloads including database, OLTP, batch applications ? Multi-threaded workloads with high concurrency ? Web, middleware, and application tier workloads, especially Java environments Architecture Processor ? One eight-core 64 thread 2.85GHz SPARC T4 processor ? 8 floating point units, 64 simultaneous threads ? New on-chip Encryption Instruction Accelerators with direct non-privileged support for 16 industry-standard cryptographic algorithms plus random number generation in each of the eight cores ? Oracle SPARC V9 architecture, ECC protected Cache ? Level 1 caches: 16KB instruction cache and 16K data cache per core ? 128KB level 2 cache per core ? Shared 4MB level 3 cache Main Memory ? Supports 4GB, 8GB, 16GB or 32GB DDR3 DIMMs ? 16 DIMM slots, supporting a maximum of 512GB ? Extended ECC, error correction and parity checking memory Interfaces Network ? Two 10/100/1000 Base-T Ethernet ports using the Intel 82571ED GbE transceiver ? One dedicated 10/100 Base-T Ethernet port for the management network which can be optionally shared with the main network ports if desired ? Two PCIe 2.0 x8 links to midplane through optional fabric expansion module Storage ? Six SAS2.0 interfaces using LSI SAS2008 Controller – One SAS2.0 interface to each of the two small form factor (SFF) SAS drive bays with RAID 0,1 support ? Up to 2 optional internal 300GB or 600GB 10,000 rpm SAS disk drives, or 100GB SATA solid state drive Midplane I/O ? Four x8 PCIe busses: Two dedicated to NEMs, two dedicated to EMs ? Four 3.0Gb/sec SAS interfaces, two per NEM ? Two 10/100/1000 GbE interfaces, one per NEM ? 10/100 Ethernet management port to Chassis Monitoring Module (CMM) ORACLE DATA SHEET 3 Front Panel I/O Exposed via dongle cable: ? One RJ-45 serial console to server module ILOM ? Three USB 2.0 ports (2 external via dongle and 1 internal accepting USB drive) ? One VGA port Software Operating Systems ? Oracle Solaris 11or later 10 8/11 Update 10 ? Oracle Solaris 10 8/11 Update 10 ? Support for Solaris 10 9/10 Update 9 and Solaris 10 10/09 Update 8 + Oracle Solaris 10 8/11 Patch Bundle Software Included ? Oracle Solaris ? Oracle VM Server ? Electronic Prognostics ? ZFS Management Built-in Oracle Integrated Lights Out Manager service processor delivers check ? Direct manageability—same as Oracle rack-mounted SPARC T4 servers ? Full monitoring of blade by SNMP ? Graphical user interface (GUI) and comprehensive command-line interface (CLI) ? Secure access and control ? Full-featured virtual console through remote KVMS feature ? Oracle Enterprise Manager, an advanced hardware management enabling discovery, grouping, bare metal provisioning, hardware and OS monitoring, and integrated LDoms management Regulations ? Safety: UL/CSA-60950-1, 2nd Edition, EN60950-1-2006 + A11:2009 + A1:2010 + A12:2011, IEC60950-1:2005 + A1:2009 CB scheme with all country deviations, CNSI4336-1, GB4943 ? EMI: EN55022:2006 + A1:2007/CISPR22:2008 Class A, 47 CFR 15B Class A, ICES- 003 Class A, VCCI Class A, AS/NE 3548 Class A, CNS 13438 Class A, GB9254 Class A, EN61000-3-2, GB17625.1, EN61000-3-3 ? Immunity: EN 55024:2010 Certifications ? Safety: UL/cUL, CE, BSMI, GOST R, S-Mark, CSA EMC: CCC, CE, FCC, VCCI, ICES, C-Tick, KCC, GOST R, BSMI Class A ? Other: Complies with WEEE Directive (2002/96/EC) and RoHS Directive (2011/65/EC) Environment Please see Sun Blade 6000 chassis data sheet – http://www.oracle.com/us/products/servers-storage/servers/blades/033613.pdf Dimensons and Weight ? Height: 327.2 mm (12.9 in.) ? Width: 44.5 mm (1.8 in.) ? Depth: 511.7 mm (20.1 in.) ? Weight: 7.4 kg (16.4 lb.) fully configured
