Oracle Sun Netra SPARC T4-2 Server

REQUEST A PRICE QUOTE:

Brand:	Oracle / Sun Microsystems
Condition:	Refurbished and new (limited availability)
Availability:	Contact
Shipping Area:	Worldwide to most countries
Shipping Method:	Fedex (most orders), UPS, DHL, Freight Courier
Price:	Please use the quote form above for quick pricing
Payment:	Credit Card, Check, Net Terms (oac), Wire Transfer (required for international orders)
Guarantee:	All items are tested by Oracle trained technicians & backed by a 100% warranty
Questions?	Don’t hesitate to contact us with any questions regarding compatibility or other product info and requests. Our website represents only a fraction of our full inventory. Please reach out with your full requirements

Specs and Information:

Processor
Number	Two SPARC T4 8-Core 2.85GHz processors
Architecture	SPARC V9 architecture, ECC Protected
CPUs	2.85GHz 8-Core 64 threads per CPU, 128 threads max Up to eight floating-point units Dual integrated multithreaded 10 GbE XAUI channels per processor On-chip Encryption Instruction Accelerators with direct non-privileged support for 16 industry-standard cryptographic algorithms plus random number generation in each of the eight cores: AES, Camellia, CRC32c, DES, 3DES, DH, DSA, ECC, Kasumi, MD5, RSA, SHA-1, SHA-224, SHA-256, SHA-384, SHA-512
Cache memory	Shared L3, 4MB cache Dedicated128KB level 2 cache per core
Main Memory
Capacities	Total DIMM slots: 32 – 8 slots per memory riser, 2 memory risers per CPU DIMM type: DDR3 DIMM size: 4GB, 8GB or 16GB Minimum Configuation: 64GB. (16 × 4GB). 16 slots is minimum slot configuration. Maximum capacity: 512GB (32 × 16GB)
Standard Integrated Interfaces
Network	4 × 10/100/1000 Base-T Ethernet ports
Network Management	One dedicated 10/100Base-T RJ-45 port Ethernet port
Serial Management	One dedicated RJ-45 port
Remote Management	Onboard service processor, running Integrated Lights Out Manager (ILOM)
Graphics	One DB-15 VGA connector
USB	Front: 2 USB 2.0 Ports
Expansion Slots	Ten PCI-Express 2.0 slots Slots 0-7 requiring low-height brackets Slots 8-9 requiring full-height bracket Four x16 mechanical slots operating at x8 Four x8 mechanical slots operating at x8 Two x8 mechanical slots operating at x4 Cards with a low height bracket will not fit in slots 8 and 9 One XAUI network module slot
Internal Mass Storage
Disks	Up to eight 2.5-inch internal SAS drives 300GB & 600GB 2.5-inch SAS disk drives RAID 0 and RAID 1 support
DVD-ROM	1 slimline SATA DVD +/-RW
Power Supplies
Four 2N redundant AC or DC hot-swappable power supplies
Environment
Power Consumption	Online power calculator
DC Power	-48 V DC or -60 V DC
AC Power	100-240 V AC, 50-60 Hz
Temperature	Operating: 5° C to 45° C (41° F to 113° F) Nonoperating: -40° C to 70° C (-40° F to 158° F)
Humidity	Relative Humidity: 5% – 90%, non condensing, but not to exceed 0.024 Kg water/kg dry air (0.053 lb. water/2.205 lbs dry air) Operating: 5% to 85% relative humidity noncondensing, but not to exceed 0.024 kg water/kg dry air (0.053 lb. water/2.205 lbs dry air) Nonoperating: Up to 93% relative humidity noncondensing, 40° C (104° F) maximum wet bulb
Altitude	Operating: Meets NEBS 4000m (13,123 ft.) requirement Nonoperating: Up to 12,000m (39,370 ft.)
Acoustic Noise	Operating/Idling: 7.2B (LwAd: 1 B=10 db)
Regulations Meets or exceeds the following requirements:
NEBS	NEBS level 3 certified by Telecordia
Seismic	GR-63-CORE requirements for Earthquake Zone 4
ETSI	EN 300019-2-1,2,3, Class 1.2, 2.3, 3.1E (Except condensing humidity and rain)
Safety	UL/CSA 60950-1, EN 60950-I, IEC 60950-I, IEC 60950-I CB Scheme with all national differences, IEC 825-1, 2, and CFR 21 Part 1040
RFI/EMC	EN 55022/CISPR 22 Class A, FCC CFR 47 Part 15 Class A
Telecommunications	EN 300 386
Immunity	EN 55022/CISPR 24, EN 61000-3-2, EN 61000-3-3
Regulatory Markings	CE, FCC, ICES-003, C-Tick, VCCI, GOST-R, MIC, UL/cUL, S-Mark, BSMI, CCC
Dimensions and Weight
Height	172.2 mm (6.86 in.)
Width	445 mm (17.18 in.)
Depth	530 mm (20.87 in.) max to PSU handles 505 mm (19.88 in.) max, to rear I/O
Weight	Max: 33 kg (72.6 lbs) fully configured without PCI Express Cards
Clearance and Service Access
Front	910 mm (36 in.)
Rear	910 mm (36 in.)

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-2210 [C]	3V Lithium Coin Cell Battery	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
333W-25-13-C14RA	180-2085 [C]	IEC 320 Sheet E to IEC 320 C13 Power Jumper Cord 13A 90° 2.5M	n/a
X2121A-5M-N	530-4446 [C]	10Gbps QSFP to QSFP Cable, 5m	n/a
X2130A-1M-N	530-4441 [C]	10Gbps SFP+ TwinX Cable, 1m	n/a
X2130A-3M-N	530-4442 [C]	10Gbps SFP+ TwinX Cable, 3m	n/a
X2130A-5M-N	530-4443 [C]	10Gbps SFP+ TwinX Cable, 5m	n/a
X333V-20-15-C14	Rack Power Jumper Cable for non-Sun racks, C13 to Sheet E, 2.0M
X333V-20-15-C14	7040692 [C]	IEC 320 C13 to IEC 320 Sheet E – 10A/250V 2.0M	180-2442 [C]
X333V-30-15-C14	Rack Power Jumper Cable for non-Sun racks, C13 to Sheet E, 3.0M
X333V-30-15-C14	7040693 [C]	IEC 320 C13 to IEC 320 Sheet E, 10A, 3M	180-2443 [C]
X9237-1-A	Power Cord Jumper X-Option 1.0M
X9237-1-A	180-2082 [C]	IEC 320 Sheet E to IEC 320 C13 Power Jumper Cord 13A 90° 1.0M	n/a
X9238-1-A	Power Cord Jumper X-Option 2.5M
X9238-1-A	180-2085 [C]	IEC 320 Sheet E to IEC 320 C13 Power Jumper Cord 13A 90° 2.5M	n/a
n/a	180-2442 [C]	IEC 320 C13 to IEC 320 Sheet E – 15A/250V 2.0M	n/a
n/a	180-2443 [C]	IEC 320 C13 to IEC 320 Sheet E – 15A/250V 3.0M	n/a
n/a	530-3100	RJ45F to DB9F Adapter	n/a
n/a	7042992	PDB to System Board Flex Cable	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #
X4242A	375-3696 ¹ [C]	Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter	n/a
X4242A	7092767 [C]	Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter	n/a
X6000A-N [S]	375-3424 [C]	PCI Express Sun Crypto Accelerator 6000	n/a

¹ Part number 375-3696 is not NEBS tested.

Disk Backplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7026182 [F]	8-Slot Disk Backplane	n/a
	7016196	PDB to Disk Backplane Power Cable	n/a
	7016210	SAS 0-3 Cable	n/a
	7016212	Disk Backplane to System Board DVD Data Cable	n/a
	7016215	Disk Backplane to PDB Signal Cable	n/a
	7017969	SAS 4-7 Cable	n/a
n/a	7056232 [F]	8-Slot Disk Backplane	7026182 [F]
n/a	7016196	PDB to Disk Backplane Power Cable	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
XRA-SS2NF-300G10K2	542-0422 [C]	300GB – 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0487	Hitachi HUC106030CSS600 [H106030SDSUN300G] (300GB – 10000 RPM – SAS Disk)	n/a
	390-0490	Seagate ST9300605SS [ST930005SSUN300G](300GB 10000 RPM SAS Disk)	n/a
	7045226	Hitachi HUC109030CSS600 [H109030SESUN300G] (300GB – 10000 RPM – SAS Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
XRA-SS2NF-600G10K2	542-0423 [C]	600GB – 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0488	Hitachi HUC106060CSS600 [H106060SDSUN600G] (600GB – 10000 RPM – SAS Disk)	n/a
	390-0491	Seagate ST9600205SS [ST960005SSUN600G](600GB 10000 RPM SAS Disk)	n/a
	7045228	Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB – 10000 RPM – SAS Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
7100477	7070195 [C]	Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP	7048474 [C]
7100481	7070202 [C]	Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF	7014747 [C]
SE4X5XC1Z	511-1525 [C]	10 Gb Ethernet Network Module	n/a
X1109A-Z	7051223 [C]	Dual 10-Gigabit PCI Express Ethernet SFP+ LP	375-3617 [C]
X2124A	135-1204 [C]	10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver	n/a
X2129A-N	530-4449 [C]	10Gb/Sec Short Wave SFP+ Transceiver	n/a
X5562A-Z	135-1205 [C]	10Gb/Sec Long Wave SFP+ Transceiver	n/a
n/a	375-3617 [C]	Dual 10-Gigabit Ethernet SFP+ LP	n/a
n/a	7014741 [C]	Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP	n/a
n/a	7014747 [C]	Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF	n/a
n/a	7014776 [C]	Dual 10-Gigabit Base-T PCI Express Gen2	n/a
n/a	7048474 [C]	Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP	7014741 [C]

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7016995 [C]	Rear Dual Fan Module (FM4)	n/a

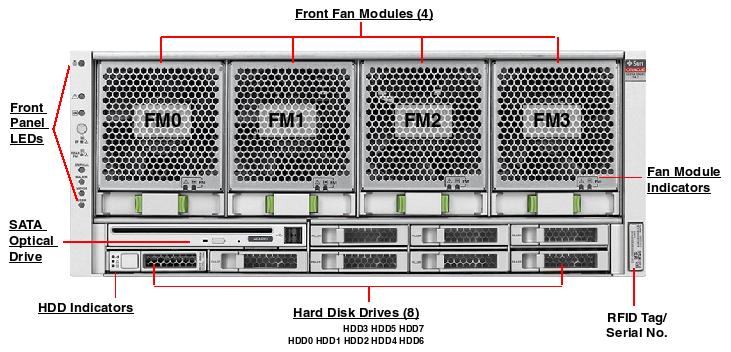

n/a	7017735 [C]	Front Fan Module (FM0 – FM3)	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCIE2FC-EM8-N	7053434 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	371-4306 [C]
SG-XPCIE2FC-QF8-N	371-4325 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
n/a	371-4306 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
7104931	16GB Memory Expansion (1 × 16GB) Option
7104931	7051724 ² [C]	16GB DDR3L-1600/PC3L-12800 DIMM	n/a
7101696 [S]	8GB Memory Expansion (2 × 4GB) Option
7101696 [S]	7014642 [C]	4GB DDR3L-1333/PC3L-10600 DIMM	n/a
7102494 [S]	16GB Memory Expansion (2 × 8GB) Option
7102494 [S]	7041271 [C]	8GB DDR3L-1333/PC3L-10600 DIMM	n/a
7102495 [S]	32GB Memory Expansion (2 × 16GB) Option
7102495 [S]	7041272 [C]	16GB DDR3L-1333/PC3L-8500 DIMM	n/a
7105237 [S]	8GB Memory Expansion (1 × 8GB) Option
7105237 [S]	7041271 [C]	8GB DDR3L-1333/PC3L-10600 DIMM	n/a
n/a	541-4438 [C]	Memory Riser Assembly	n/a
	341-5773	Memory Riser Tray	n/a
	511-1672	Memory Riser Board	n/a
n/a	7051516 [C]	Memory Riser Assembly	541-4438 [C]
	350-1830	Memory Riser Tray Assembly	n/a
	341-5773	Memory Riser Tray	n/a
	7051515	Memory Riser Board	511-1672

² Cannot be mixed with 7041272.

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	300-2304 [C]	Type A249A 1100/1200 Watt AC Input Power Supply	n/a
n/a	300-2305 [C]	Type D204A 1200 Watt DC Input Power Supply	n/a
n/a	7017186 [F]	Power Distribution Assembly	n/a
	7013888	Power Distribution Board	n/a
	7040857	PDB to System Board Flex Cable	n/a
n/a	7048339 [C]	Type D204A 1200 Watt DC Input Power Supply	300-2305 [C]
n/a	7081590 [C]	Type A249A 1100/1200 Watt AC Input Power Supply	300-2304 [C]
n/a	7087767 [C]	Type D204A 1200 Watt DC Input Power Supply	n/a

Rack
Option #	Manufacturing Part #	Description	Previous Part #
X4061A	350-1276	19″ 4-post Slide Mount Kit	n/a
XSR-JUMP-1MC13-N	7015399 [C]	10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M	180-2379 [C]
XSR-JUMP-2MC13-N	7015400 [C]	10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2M	180-2380 [C]
X4059A [S]	350-1275	600mm x 600mm Rackmount Kit	n/a
n/a	180-2379 [C]	13A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M	n/a
n/a	180-2380 [C]	13A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2M	n/a
n/a	371-4065	19″ 2-Post and 4-Post Rackmount Kit	n/a

Removable Media
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-3493 [C]	Slot-Load SATA DVD-Writer/CD-Writer – USB Board Assembly	n/a
	330-5056	DVD Tray	n/a
	390-0442	8x Slot-Load SATA DVD-Writer/24x CD-Writer	n/a
	390-0443	8x Slot-Load SATA DVD-Writer/24x CD-Writer	n/a
	390-0454	8x SATA DVD Writer/24x CD-Writer	n/a
	390-0486	8x Slot-Load SATA DVD-Writer/24x CD-Writer	390-0443
	501-7698	USB Board	n/a
n/a	7057476 [C]	Slot-Load SATA DVD-Writer/CD-Writer – USB Board Assembly	n/a
	330-5056	DVD Tray	n/a
	501-7698	USB Board	n/a
	7045772	8x Slot-Load SATA DVD-Writer/24x CD-Writer	n/a
	7066500	DVD Tray	n/a
n/a	7070425 [C]	Slot-Load SATA DVD-Writer/CD-Writer – USB Board Assembly	n/a
	330-5056	DVD Tray	n/a
	501-7698	USB Board	n/a
	7045772	8x Slot-Load SATA DVD-Writer/24x CD-Writer	n/a
	7066500	DVD Tray	n/a
n/a	7079141 ³ [C]	Tray-Load SATA DVD-Writer/CD-Writer – USB Board Assembly	n/a
	501-7698	USB Board	n/a
	7071296	8x Tray-Load SATA DVD-ROM Writer / 24x CD-ROM Writer	n/a
	7079137	DVD Tray	n/a
	7089963	8x Tray-Load DVD-ROM/24-x CD-ROM Writer (Gen5)	n/a
	7309891	8x Tray-Load DVD-ROM/24x CD-ROM Writer (Gen6)	n/a

³ The Tray-Load DVD 7079141 is not compatible with Air Filter Assembly 7015018.

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
7105387	8-Port 6Gbps SAS-2 PCI Express HBA
7105387	7047853 [C]	8-Port 6Gbps SAS-2 PCI Express HBA (LSI)	375-3641 [C]
SGX-SAS6-R-INT-Z	7047503 [C]	8-Port 6Gbps SAS-2 RAID PCI Express HBA, B4 ASIC	375-3701 [C]
SGX-SAS6-R-INT-Z	7050794 [C]	6Gbps SAS-2 RAID PCI Battery Module, BBU08	371-4982 [C]
SGX-SAS6-EXT-Z [S]	7047853 [C]	8-Port 6Gbps SAS-2 PCI Express HBA (LSI)	375-3641 [C]
n/a	371-4982 [C]	6Gbps SAS-2 RAID PCI Battery Module, BBU08	n/a
n/a	375-3641 [C]	8-Port 6Gbps SAS-2 PCI Express HBA (LSI)	n/a
n/a	375-3701 [C]	8-Port 6Gbps SAS-2 RAID PCI Express HBA, B4 ASIC	n/a

System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7026181 [F]	2.85GHz 8-Core System Board Assembly	n/a
	371-2210 [C]	3V Lithium Coin Cell Battery	n/a
	7015858	Rear I/O Connector	n/a
	7016202	System Board to Rear I/O Connector Cable	n/a
	7025850	System Board	n/a
	525-2146 [F]	SSCC NVRAM	n/a
n/a	7056226 [F]	2.85GHz 8-Core System Board Assembly	7026181 [F]
	371-2210 [C]	3V Lithium Coin Cell Battery	n/a
	7016202	System Board to Rear I/O Connector Cable	n/a
	7056225	System Board	n/a
	7056230	Rear I/O Connector	7015858
	7088733	System Board	n/a
	525-2146 [F]	SSCC NVRAM	n/a
n/a	7080887 ⁴ [F]	2.85GHz 8-Core System Board Assembly	n/a
	371-2210 [C]	3V Lithium Coin Cell Battery	n/a
	7016202	System Board to Rear I/O Connector Cable	n/a
	7056230	Rear I/O Connector	7015858
	7078698	System Board	n/a
	525-2146 [F]	SSCC NVRAM	n/a
n/a	7302585 [F]	2.85GHz 8-Core System Board Assembly (reworked 7056226)	n/a
	371-2210 [C]	3V Lithium Coin Cell Battery	n/a
	7016202	System Board to Rear I/O Connector Cable	n/a
	7056225	System Board	n/a
	7056230	Rear I/O Connector	7015858
	7088733	System Board	n/a
	525-2146 [F]	SSCC NVRAM	n/a

⁴ System Board 7080887 requires minimum firmware 8.4.2.c.

System Service Processor
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-4660 [F]	Service Processor Assembly	n/a
n/a	511-1336	AST2200 Service Processor	n/a
n/a	7056310 [F]	Service Processor Assembly	n/a
n/a	7053714	AST2200 Service Processor	n/a

Industry Leading Quality, Support and Integrity

Quality Inspection Checklist
Before it leaves our facility, every used and refurbished item is thoroughly inspected by our certified technicians and undergoes our exclusive Quality Inspection Checklist to ensure 100% satisfaction guarantee.

Greentec Systems is a leading provider
For server, networking and storage equipment. We have an extensive array of inventory of IBM Servers & Storage, Sun Servers & Storage, Cisco Networking (Switches, Routers, Security), and NetApp Storage (disk shelves, disk drives, Filers, NearStore, NetCache). If you don’t see the item or product you require please contact us.

Have this equipment to sell?
Depending on the age and condition of the equipment, there is a very good likelihood that we will be able to offer you cash or trade-in credit for other IT hardware. If the equipment is very old we can also assist you with properly decommissioning that gear in the most environmentally friendly way possible.

Questions?
For more information please contact 888.333.7388, or fill out the quote from above. We’d love to hear from you.
