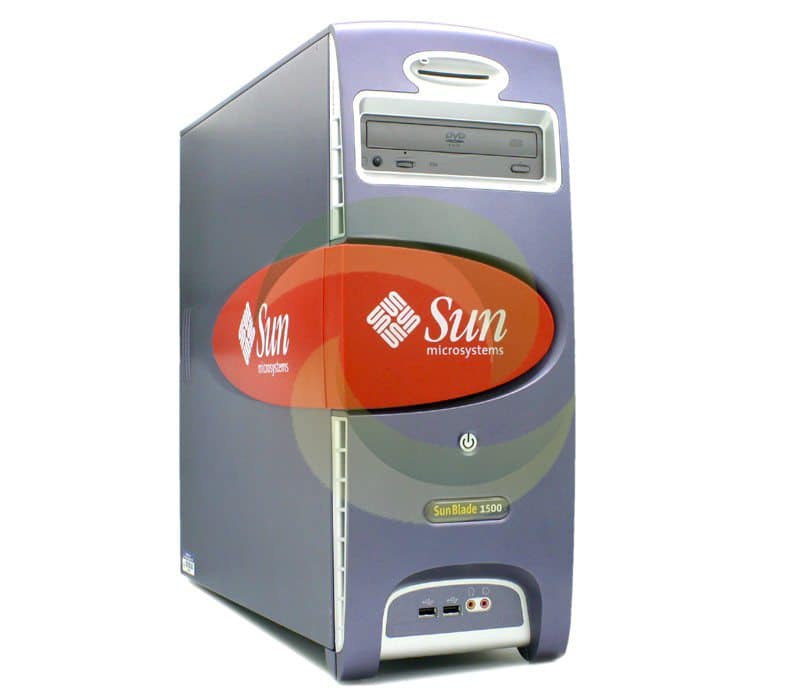

Oracle Sun Blade 1500 Red Workstation
REQUEST A PRICE QUOTE:
| Processor | |
| Number | 1 |
| Architecture | 1.062GHz UltraSPARC[tm] IIIi |
| Main Memory | |
| Capacities | Four 184-pin DIMM slots; must be installed in pairs Up to 4GB (4 X 1GB SDRAM DIMMs) |
| Standard Interfaces | |
| Audio | Four audio ports: Front: headphone(out) and microphone(in) Rear: line-in and line-out |
| Ethernet | Single 10/100/1000Mb Ethernet Port |
| IEEE 1394 (Firewire) | 2 ports, provided by a plug in PCI card (I/O Combo Card) |
| Keyboard and mouse | USB |
| Parallel | One IEEE 1284 compliant parallel port (DB25) |
| PCI | Four 33 MHz and one 66 MHz PCI slots. The 33 MHz slots are comprised of two 32-bit and two 64-bit. These slots provide 5 VDC power. The 66 MHz slot is 64-bit and supplies 3.3 VDC. |
| Serial | Two Asynchronous RS-232 Serial (DB9) |
| USB | USB 1.1: 4 Ports, 2 front, 2 rear USB 2: 3 ports, provided by a plug in PCI card (I/O Combo Card) |
| Internal Mass Storage | |
| Disks | Up to two 80 GB ATA100 IDE Disk Drives |
| DVD-ROM | 16X DVD-ROM Drive |
| Graphics | |
| Cards |
|
| Environment | |
| AC input | 100 to 120; 220 to 240 VAC, 47 to 63 Hz, 0.3 K VA |
| Heat output | tbd |
| Input power | 350 W maximum |
| Temperature |
Operating: 5° C to 40° (41° F – 104° F) Nonoperating: -32° C to 65° C (-26° F to 149° F) |
| Humidity |
Operating: 10 – 93 % relative humidity, noncondensing Nonoperating: 93 % relative humidity, noncondensing |
| Altitude |
Operating: 3 km, 35° C (10000 ft, 95° F) Nonoperating: 12 km, 0° C (40000 ft, 32° F) |
| Random Vibration |
Operating: 5 – 500 Hz, 0.21 Grms Nonoperating: 5 – 500 Hz, 2.09 Grms |
| Sweep Vibration |
Operating: 5 – 500 Hz, 0.6 G Nonoperating: 5 -500 Hz, 1.2 G |
| Shock |
Operating: 31 G, 2.6 msec, 20 in/sec (508 mm/sec) Nonoperating: 91 G, 2 msec, 45 in/sec (1143 mm/sec) |
| Number of cords | 1 |
|
Regulations Meets or exceeds the following requirements: | |
| Safety | UL 60950, EN 60950, CSA-C22.2-60950, IEC 60950, CB Scheme with all national differences, IEC825-1,2 and CFR21 part 1040 |
| RFI/EMI | CISPR 22 Class B, FCC Class B, EN61000-3-2, EN61000-3-3 |
| Immunity | EN55024 |
| Ergonomics | EK ITB-2000 |
| Power management | Energy Star compliant on all configurations |
| Dimensions and Weights | |
| Height | 45.9 cm (18.1 in) |
| Width | 17.5 cm (6.89 in) |
| Depth | 46.5 cm (18.3 in) |
| Weight | 14.8 kg (32.6 lbs), minimum |
| Batteries | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| n/a | 370-5949 | 3V Lithium Battery CR2032 | ||
| Boot PROM | ||
|---|---|---|
| Socket | Manufacturing Part # | Patch |
| n/a | 525-2035 | 119236 |
| CPU Module | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| n/a | 527-1071 | 1.064GHz USIIIi | ||
| n/a | 527-1087 | 1.064GHz USIIIi | ||
| Cables | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| X311L | Localized Power Cord Kit – North America/Asia, RoHS:Y | |||
| 180-1097 | IEC 320 C13 to NEMA 5-15P – 15A/125V 2.5M Black, RoHS:Y | |||
| X312L | Localized Power Cord Kit – Continental Europe, RoHS:Y | |||
| 180-1993 | IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black, RoHS:Y | |||
| X314L | Localized Power Cord Kit – Swiss, RoHS:Y | |||
| 180-1994 | IEC 320 C13 to SEV 1011 – 10A/250V 2.5M Black, RoHS:Y | |||
| X317L | Localized Power Cord Kit – U.K., RoHS:Y | |||
| 180-1997 | IEC 320 C13 to BS 1363 – 10A/250V 2.5M Black, RoHS:Y | |||
| X383L | Localized Power Cord Kit – Danish, RoHS:Y | |||
| 180-1995 | IEC 320 C13 to Asfnit 107 – 10A/250V 2.5M Black, RoHS:Y | |||
| X384L | Localized Power Cord Kit – Italian, RoHS:Y | |||
| 180-1996 | IEC 320 C13 to CEI 23-16/VII – 10A/250V 2.5M Black, RoHS:Y | |||
| X386L | Localized Power Cord Kit – Australian, RoHS:Y | |||
| 180-1998 | IEC 320 C13 to AS 3112 – 10A/250V 2.5M Black, RoHS:Y | |||
| n/a | 530-1819 | Localized Power Cord Kit – Danish | ||
| Card/Reader | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| n/a | 370-5018 | Smart Card Reader | ||
| Communication | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| X1155A | 370-2728 | High Speed Serial Interface PCI (HSI/P) 2.0 | ||
| X1157A | 501-3028 | SunATM-155/MFiber PCI 4.0 | ||
| X1158A | 501-3027 | SunATM-155/UTP PCI 4.0 | ||
| X1159A | 501-3029 | SunATM-622/MFiber PCI 4.0 | ||
| X2156A | 375-0100 | Serial Asynchronous Interface PCI (SAI/P) 3.0 | ||
| X4011A | 501-6039 | Crypto Accelerator 4000 UTP (copper) | ||
| X4012A | 501-6040 | Crypto Accelerator 4000 MMF (fiber) | ||
| X4111A | 501-6039 | Crypto Accelerator 4000 UTP (copper) | ||
| X4112A | 501-6040 | Crypto Accelerator 4000 MMF (fiber) | ||
| X6762A | 375-3089 | Crypto Accelerator 1000 | ||
| Disks | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| X5405A | 80GB 7200RPM IDE Disk Drive | |||
| 370-5522 | Seagate ST380021A (80GB – 7200 RPM – IDE Disk) | |||
| 370-5522 | Seagate ST380011A (80GB – 7200 RPM – IDE Disk) | |||
| Ethernet | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| X4445A | 501-6738 | Quad GigaSwift PCI-X Ethernet (QGE-X), RoHS:Y | ||
| X1033A | 501-5019 | Sun FastEthernet PCI Adapter (FE/P) 2.0 | ||
| X1034A | 501-5406 | Quad FastEthernet PCI (QFE/P) | ||
| X1141A | 501-4373 | Gigabit Ethernet PCI (GBE/P) 2.0 | ||
| X1150A | 501-5902 | Sun GigaSwift Ethernet UTP (Copper) | ||
| X1151A | 501-5524 | Sun GigaSwift Ethernet MMF (Fiber) | ||
| X3150A | 501-5902 | Sun GigaSwift Ethernet UTP (Copper) | ||
| X3151A | 501-5524 | Sun GigaSwift Ethernet MMF (Fiber) | ||
| X4150A | 501-6719 | GigaSwift Ethernet UTP (GCS) | ||
| X4151A | 501-6762 | GigaSwift Ethernet MMF (GFS) | ||
| X4444A | 501-6522 | Quad GigaSwift Ethernet UTP (QGE) | ||
| Fan | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| n/a | 370-5679 | Front Fan | ||
| n/a | 370-5680 | Rear Fan | ||
| n/a | 370-5686 | CPU Fan/Heatsink w/ clips | ||
| Fibre Channel | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| SG-XPCI1FC-QF4 | 375-3354 | 4Gb PCI-X Single FC Host Adapter, RoHS:Y | ||
| SG-XPCI2FC-QF4 | 375-3294 | 4Gb PCI-X Dual FC Host Adapter, RoHS:Y | ||
| SG-XPCI1FC-QF2 | 375-3102 | 2Gb PCI Single FC Host Adapter | ||
| SG-XPCI1FC-QL2 | 375-3383 | 2Gb PCI-X Single FC Host Adapter, RoHS:Y | ||
| SG-XPCI2FC-QF2 | 375-3108 | 2Gb PCI Dual FC Host Adapter | ||
|
| |||
| SG-XPCI2FC-QF2-Z | 375-3363 | 2Gb PCI Dual FC Host Adapter, RoHS:Y | ||
|
| |||
| X6727A | 375-3030 | PCI Dual FC Host Adapter+, RoHS:YL | ||
| X6799A | 375-3019 | PCI Single FC Host Adapter | ||
| Graphics | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| X3685A | 375-3069 | XVR-500 Graphics Accelerator | ||
| X3769A | 375-3126 | XVR-100 Graphics Accelerator (32MB) | ||
| X3770A | 375-3181 | XVR-100 Graphics Accelerator (64MB) | ||
| X3780A | 375-3153 | XVR-600 Graphics Accelerator | ||
| X7296A | 375-3290 | XVR-100 Graphics Accelerator (64MB), RoHS:Y | ||
| I/O | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| n/a | 370-5682 | USB Connector Board with Mounting Bracket | ||
| n/a | 375-3140 | I/O Combo Card | ||
| IDPROM | |||
|---|---|---|---|
| Socket | Manufacturing Part # | Component Type | Host ID |
| NVRAM0 | 525-2033 | SEEPROM 1 ?? MAC | 83xxxxxx |
| Memory | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| X7402A | 512MB DDR Memory Option (2 × 256MB DIMMs) | |||
| 370-5565 | 256MB Registered DDR DIMM (SPD 0.0) | |||
| X7403A | 1GB DDR Memory Option (2 × 512MB DIMMs) | |||
| 370-4939 | 512MB Registered DDR DIMM (SPD 0.0) | |||
| X7404A | 2GB DDR Memory Option (2 × 1GB DIMMs) | |||
| 370-4940 | 1GB Registered DDR DIMM (SPD 0.0) | |||
| X7602A | 512MB DDR Memory Option, SPD 1.0 (2 × 256MB DIMMs) | |||
| 370-6201 | 256MB Registered DDR DIMM (SPD 1.0) | |||
| X7603A | 1GB DDR Memory Option, SPD 1.0 (2 × 512MB DIMMs) | |||
| 370-6202 | 512MB Registered DDR DIMM (SPD 1.0) | |||
| X7604A | 2GB DDR Memory Option, SPD 1.0 (2 × 1GB DIMMs) | |||
| 370-6203 | 1GB Registered DDR DIMM (SPD 1.0) | |||
| X7702A | 512MB DDR Memory Option, SPD 0.0 or 1.0 (2 × 256MB DIMMs) | |||
| 370-7680 | 256MB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster | |||
| X7703A | 1GB DDR Memory Option, SPD 0.0 or 1.0 (2 × 512MB DIMMs) | |||
| 370-7670 | 512MB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster | |||
| X7704A | 2GB DDR Memory Option, SPD 0.0 or 1.0 (2 × 1GB DIMMs) | |||
| 370-7671 | 1GB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster | |||
| n/a | 540-6228 | 512MB DDR FRU, SPD 1.0 (2 × 256MB DIMMs) | ||
|
| |||
| n/a | 540-6229 | 1GB DDR FRU, SPD 1.0 (2 × 512MB DIMMs) | ||
|
| |||
| n/a | 540-6230 | 2GB DDR FRU, SPD 1.0 (2 × 1GB DIMMs) | ||
|
| |||
| n/a | 540-6399 | 512MB DDR FRU, SPD 0.0/1.0 (2 × 256MB DIMMs) | ||
|
| |||
| n/a | 540-6400 | 1GB DDR FRU, SPD 0.0/1.0 (2 × 512MB DIMMs) | ||
|
| |||
| n/a | 540-6401 | 2GB DDR FRU, SPD 0.0/1.0 (2 × 1GB DIMMs) | ||
|
| |||
| Miscellaneous | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| X2134A | 370-6200 | Rear Guide Kit | ||
| 375-3116 | SunPCi III 1.4GHz Co-Processor Card, 256MB memory | |||
| X2136A | 370-6200 | Rear Guide Kit | ||
| 375-3203 | SunPCi IIIpro 1.6GHz Co-Processor Card, 256MB memory | |||
| X7066A | 370-5463 | SunPCi III 256MB SODIMM memory expansion | ||
| X7067A | 370-5967 | SunPCi III 512MB SODIMM memory expansion | ||
| n/a | 370-5683 | Speaker | ||
| Power | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| n/a | 300-1583 | 360 Watt Power Supply | ||
| n/a | 300-1666 | 420 Watt Power Supply | ||
| n/a | 300-1906 | 420 Watt Power Supply | ||
| Removable Media | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| n/a | 370-5690 | 16X DVD-ROM Drive | ||
| n/a | 370-5693 | 48X CD-Writer | ||
| n/a | 370-7699 | 16X DVD-ROM Drive | ||
| SCSI | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| SGXPCI2SCSILM320-Z | 375-3365 | PCI Dual Ultra320 SCSI Adapter, RoHS:YL | ||
| SG-XPCI2SCSI-LM320 | 375-3191 | PCI/PCI-X Dual Ultra320 SCSI Adapter | ||
| X1032A | 501-5656 | Single-Ended Ultra/Wide SCSI/FastEthernet (SunSwift PCI) | ||
| X2222A | 501-5727 | Dual FastEthernet / Dual SCSI PCI Adapter | ||
| X4422A | 501-6635 | Dual GigabitEthernet / Dual SCSI PCI Adapter | ||
| X5010A | 375-0097 | Single-Channel Single-Ended Ultra/Wide SCSI (PCI) | ||
| X6540A | 375-0005 | Dual Single-Ended Ultra/Wide SCSI (PCI) | ||
| X6541A | 375-0006 | Dual Differential Ultra/Wide SCSI (UDWIS/P)(HVD) | ||
| X6758A | 375-3057 | PCI Dual Ultra3 SCSI Host Adapter (LVD) | ||
