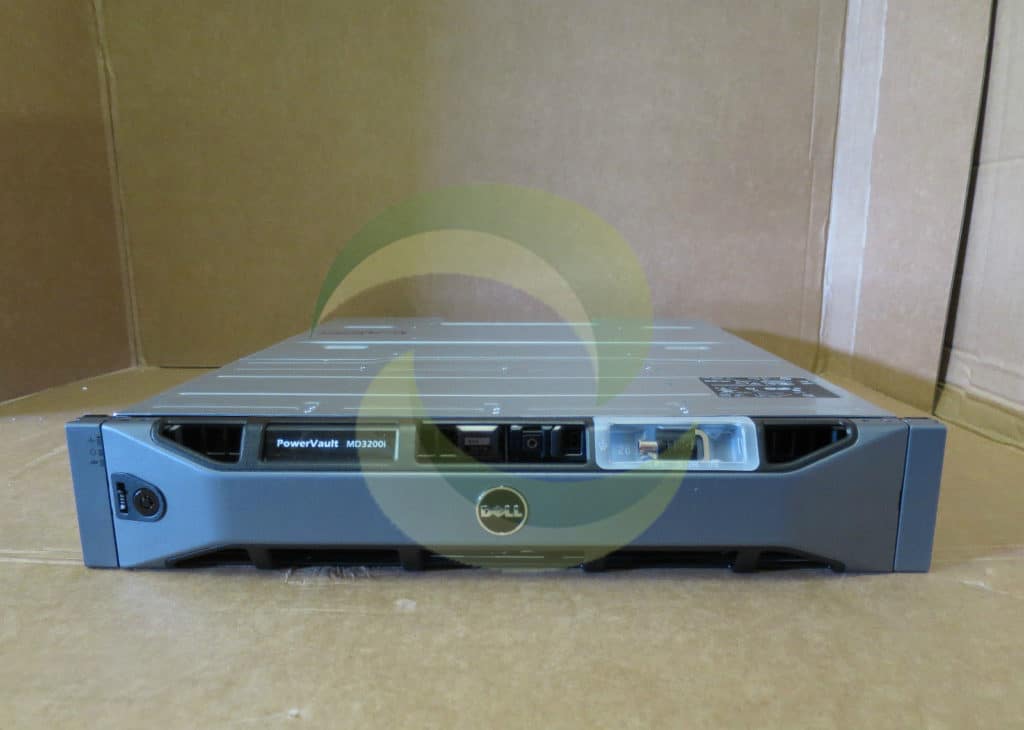

Dell PowerVault MD3200i iSCSI SAN 24TB Storage Array 12 Bay 2U DAS

Quad Port

Quad Port Controller, 2 x Power Supplies

12 x Dell 2 TB SAS ,7200 RPM,3.5″ (R755K) Hot plug Hard Drives

12 x Drive caddies included, no drives included – we can quote to supply if required

Supports up to 64 servers when configured with 1Gigabyte iSCSI

Dual controllers operate in an active-active environment mirroring each other’s cache
Cache protection is provided via flash memory for permanent data protection
Dynamic Disk Pools (DDP) eliminates the need for complex RAID management while optimizing data protection, and can be used along side of existing RAID configurations

Management

• 2nd generation multi-protocol Modular Disk Storage Manager, Java based user interface
  Multi-path graphical software provides failover management of redundant data paths between the server and storage array

  MD3200i and MD3220i Standard Features:
  Dynamic Disk Pools- Optional configuration to RAID disk management
  VAAI support- Available for customers using VMware vStorage APIs for Array Integration,
  vCenter Plugin- Available for customers using VMware vSphere
  VASA- vStorage API for Storage Awareness, available for use in conjunction with the vCenter Plugin
  SRA-Sight Recover Manager, available for use with vCenter Plugin
  ALUA-Active Active LUN Access
  Supports Self Encrypting Drives (SED) that provide an additional level of data protection
  Thin Provisioning- Allocate and consume physical storage capacity as needed
  Try and Buy licensiAg- 90 day trial license of premium feature software

Back-Panel Connectors

• Back-Panel Connectors
  Four RJ-45 1Gb Ethernet for host connectivity,
  One 6Gb SAS for drive expansion,
  One RJ-45 1Gb Ethernet for remote management;
  One PS/2 Serial service

Power

• Wattage
  600 W peak output

  Heat Dissipation (max)
  150 W

  Input Voltage Range
  90 to 264 VAC

  Frequency range
  47 to 63 Hz

  Maximum Input Current at Rated Power
  55 A for 10ms or less, 25 A for 10-150ms

  Available hard drive power
  3.5″ drive: 25 Watts
  2.5″ drive: 12 Watts

Consolidate with flexible, high-capacity storage
Simplify the challenges of large-data storage, management and access with a Dell™ PowerVault™ MD3 iSCSI array series.
Find Out More

High density in a smaller footprint with PowerVault MD3260i
High performance with the high density of the 60-drive PowerVault™ MD3260i dense array, you can significantly increase your storage capacity without increasing your data center’s footprint.
Find Out More

Protect your data with optional PowerVault capabilities
All PowerVault MD3 array series offer premium feature options, including data protection, data replication, encryption and secure data removal.
Find Out More

• Up to twelve (12) 3.5 inch SAS, Near-line SAS and SSD drives
  • Supports up to 64 hosts
  • Expand capacity with up to eight (8) MD1200 or MD1220 expansion enclosures
