Cisco WS-C3850-24XS-S Datasheet

Cisco next generation Catalyst WS-C3850-24XS-S is stackable enterprise level switch and integrated with 24 ports of SFP+ 10G Ethernet fiber connection with Flexible Netflow feature.

Quick Specs

Table 1 shows the Quick Specs. Product Code
Enclosure Type
Feature Set

Network SFP uplink module selection

Ports
Maximum stacking number Stack bandwidth
RAM
Flash Memory
Dimensions (WDH)

Product Details

WS-C3850-24XS-S 1 RU
IP Base

C3850-NM-4-10G C3850-NM-8-10G C3850-NM-2-40G

24 × 10/100/1000 10G SFP+ Optical ports 9
480 Gpbs
4 GB

4 GB
44.5 cm x 45 cm x 4.45 cm

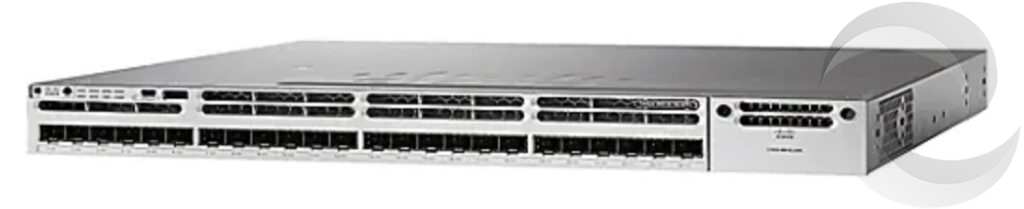

Figure 1 shows the front panel of the Cisco WS-C3850-24XS-S with blank network module.

Note:

1. (1)  UID (blue beacon)
2. (2)  Mode button
3. (3)  Status LEDs
4. (4)  USB mini-Type B (console) port

(5) USB Type A storage port

(6) 24 × 10/100/1000 10G SFP+ Optical ports (7) Network SFP uplink module slot

Figure 2 shows the back panel of the Cisco WS-C3850-24XS-S.

Note

1. (1)  Ground connector
2. (2)  CONSOLE (RJ-45 console port)
3. (3)  StackWise port connector
4. (4)  StackPower connector

Figure 3 shows the StackWise-480 and StackPower connectors.

5. (5)  Power supply modules
6. (6)  Fan module
7. (7)  MGMT port
8. (8)  Reset Button

This switch with IP Base feature set can only stack with other Catalyst 3850 Series IP Base switches.

The Modules, Licenses and Accessories

Table 2 shows some recommended modules, licenses and accessories of this switch.

Models

C3850-NM-4-10G

C3850-NM-8-10G

L-C3850-24-S-E

PWR-C1-715WAC=

STACK-T1-50CM=

Description

Cisco 3850 Series Network Module C3850-NM-4-10G 4 x 10GE Network Module

Cisco 3850 Series Network Module C3850-NM-8-10G 8 x 10GE Network Module

C3850-24 IP Base to IP Services Electronic RTU License

Cisco 3850 Series Power Supply PWR-C1-715WAC 715W AC Config 1 Power Supply

Cisco StackWise-480 50cm stacking cable for Cisco Catalyst 3850 series switch

Cisco StackWise-480 1m stacking cable for Cisco Catalyst 3850 series switch

Table 3 shows the comparison between WS-C3850-24XS-S and WS-C3850-24S-S.

Models

Feature Set Ports

Network SFP uplink module selection

Switch to Something New

WS-C3850-24XS-S WS-C3850-24S-S

IP Base IP Base
24 × 10/100/1000 10G SFP+ Optical ports 24 × 10/100/1000 SFP Optical ports

C3850-NM-4-10G C3850-NM-8-10G C3850-NM-2-40G

C3850-NM-4-1G C3850-NM-2-10G

Why Upgrade to Catalyst 9300? | See the Catalyst 9300 Series​

Get more information from Greentec Systems,

Do you have any question about the WS-C3850-24XS-S? Contact using the form above.

Specification

model info: enclosure type Ports

Network management Interface

Available PoE Power Switching Capacity Maximum stacking number Stack Bandwidth Forwarding Performance FNF entries

Maximum VLANs IDs MAC Address Table Size CPU
RAM
Flash Memory

Number of AP per switch/stack
Number of wireless clients per switch/stack Total number of WLANs per switch

WS-C3850-24XS-S Specification

WS-C3850-24XS-S

Rack-mountable – 1U

24 x SFP+ ports

● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling ● Management console port: RJ-45-to-DB9 cable for PC connections

None
320Gbps
up to 9 switches with same IOS feature set in same series 480Gbps
454.55Mpps
48,000 flows
1,000
32K
Multicore CPU
4G
4 G

Wireless

100 2000 64

Wireless bandwidth per switch Supported Aironet AP series

Console ports Expansion Slot(s)

Network Modules Selection

Stacking cable

Stack Power Cable (recommended)

Power supply
Power Device
Power Redundancy
Voltage range (Auto)
Power Consumption of standalone(in Watts)

Width
Depth
Height
Weight
Rack Mounting Kit

MTBF in hours

up to 20Gbps
3600, 3500, 2600, 1600, 1260, 1140, 1040

Expansion / Connectivity

USB (Type-B), Ethernet (RJ-45)
1 network module slot and 1 power redundant slot

● C3850-NM-4-1G: 4 x 1G uplinks network module ●C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module

●STACK-T1-50CM StackWise stacking cable with a 0.5 m length ●STACK-T1-1M StackWise stacking cable with a 1.0 m length ●STACK-T1-3M StackWise stacking cable with a 3.0 m length

●CAB-SPWR-30CM stack power cable with a 30CM length ●CAB-SPWR-150CM stack power cable with a 150CM length

PWR-C1-715WAC
Power supply – redundant – plug-in module optional
100V-240V
205.5 (Max)

17.5 Inches (44.5 cm) 17.7 Inches (45.0 cm) 1.75 Inches (4.45 cm) 13.5 Pounds (6.1 Kg) optional

307,990

System software / license

System software EnergyWise license

Software license

IOS IP Base (Upgradable) ENERGY-MGMT, ENERGY-MGT-100-K9

●C3850-24-S-E: IP Base to IP Services RTU paper license ●L-C3850-24-S-E: IP Base to IP Services RTU electronic license

Access Point Licenses

●L-LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (e-delivery) ●L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery) ●LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (paper license) ●LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license)

Features

●RPS Support ● Jumbo Frames ● VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ● 802.3ad LACP and PAgP
● PVST/PVST+ ● 802.1W/802.1S ●Port Fast/Uplink Fast ●Dynamic Trunking Protocol (DTP) ● port CoS Trust and Override ● Trusted Boundary ● ACL Classification ●ingress Policing ● Auto QoS ● Per VLAN policies
● 802.1p queues ● Scheduling ● Priority Queuing ● Configure CoS Priority Queues ●Configure CoS Priority Queues ● Configure Queue Weights ● Configure Buffers and Thresholds ●Class & Policy Maps ● Modify CoS and DSCP Mapping ● Weighted Tail Drop ● IGMPv1,v2,v3 and MLDv1, v2 ● DHCP server ● DSCP transparency ● HSRP, VRRP, BLGP ● RIPv1, v2 EIGRP, PIM OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4 ● VRF-lite ● PIM- SM/DM,
PIM sparse-dense mode, SSM ● Flexible Netflow

Advanced Network security

● Port security ● DHCP snooping ●Dynamic ARP inspection (DAI) ● IP source guard ●The Unicast Reverse Path Forwarding (uRPF)
● Bidirectional data support on a SPAN ● User authentication
● Private VLAN ●Router and VLAN ACLs ● complete identity and security

● Multidomain authentication ● MAC address notification
● IGMP filtering ● Cisco security VLAN ACL
● Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3) ● Port-based ACLs ● TrustSec SXP ● IEEE 802.1ae
● TACACS+ and RADIUS authentication ● Cisco standard and extended IP security router ACLs
● Bridge protocol data unit (BPDU) Guard
● Spanning Tree Root Guard (STRG) ● Wireless end-to-end security

Short-term exception up to 10,000 feet (3000 m)

Operating temperature up to 6000 ft (1800 m)

Operating temperature up to 10,000 ft (3000 m)

Operating temperature up to 13,000 ft (4000m)

23oF to 113oF (-5oC to 45oC)

With DC power supply Operating environment and altitude (NEBS)

23oF to 113oF (-5oC to +45oC) 23oF to 104oF (-5oC to +40oC)

23oF to 95oF (-5oC to 35oC)

23oF to 131oF (-5oC to +55oC)

23oF to 122oF (-5oC to +50oC)

23oF to 113oF (-5oC to +45oC)

23oF to 113oF (-5oC to +45o)

-40oF to 160oF (-40oC to 70oC)
Up to 13,000 Feet (Up to 4000 Meters) Up to 15,000 Feet (Up to 4573 Meters) 10% to 95% noncondensing
10% to 95% noncondensing

Short-term exception m)

Short-term exception m)

Short-term exception m)

Short-term exception fan failure

up to 6,000 feet (1800

up to 10,000 feet (3000

up to 13,000 feet (4000

at sealevel with single
