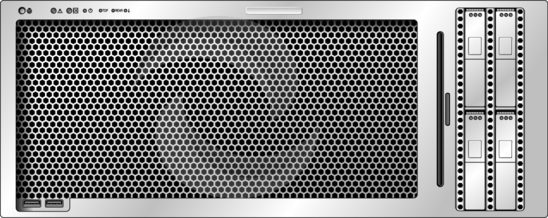

Oracle Sun T5440 Server

Oracle Sun T5440 Server Oracle Sun T5440 Server Sun Servers SUN FIRE T5440 copy

REQUEST A PRICE QUOTE:

    Name*

    Phone

    Details*


    T5440 Key Facts
    The server supports a total of 4 Bays, which is slightly less than the average for all Rackmount Servers. The Oracle SPARC T-Series Sun SPARC Enterprise T5440 Server can support up to 512 GB of memory, which is 256 GB more than the average for all Rackmount Servers.

    Motherboard and Processor
    The Oracle SPARC T-Series Sun SPARC Enterprise T5440 Server also includes L1 Cache and L2 Cache with a maximum memory of 4 MB, which is 66.7% worse than the average for all Servers. The Oracle SPARC T-Series Sun SPARC Enterprise T5440 Server server is compatible with the following processor series: UltraSPARC T2.

    Memory
    Additionally, the Oracle SPARC T-Series Sun SPARC Enterprise T5440 Server offers a maximum memory capacity of 512 GB, which is 320 GB more than the average for all Servers.

    Drive Bays
    The Oracle SPARC T-Series Sun SPARC Enterprise T5440 Server includes 4 Hot-Swap Bays, which is 4 Hot-Swap Bays less than the average for all Rackmount Servers. This server also includes a total of 0 Simple-Swap Bays, which is the average for all Rackmount Servers.

    Chasis and Operating Environment
    The Oracle SPARC T-Series Sun SPARC Enterprise T5440 Server has a weight of 88 lbs, which is 85.7% heavier than the average for all Rackmount Servers. This server uses 1,120 Watts of power to operate, which is 400 Watts more than the average for all Rackmount Servers. The Oracle SPARC T-Series Sun SPARC Enterprise T5440 Server has an operating noise of 89 dBA, which is 85.4% higher than the average for all Rackmount Servers.

    More details below, contact Greentec Systems for more info…

    Processor
    Number One to Four UltraSPARC T2 Plus, multi-core, multi-thread processors
    Architecture SPARC V9 architecture, ECC protected
    CPUs 1.2GHz 8-Core (64 × 4 for a total of 256 concurrent threads)
    1.4GHz 8-Core (64 × 4 for a total of 256 concurrent threads)
    Cache memory 4MB Level 2
    Main Memory
    Capacities Total DIMM slots: 4 on each CPU board, 12 on each Memory board, 64 slots total (4 CPU and 4 Memory boards installed.)
    DIMM type: FBDIMM
    DIMM size: 2GB, 4GB, or 8GB
    Maximum capacity: 512GB (64 × 8GB) maximum, 128GB (64 × 2GB) minimum
    Standard Integrated Interfaces
    Network 4 × 10/100/1000 Mbps auto-negotiating Ethernet ports
    2 × 10 Gbps Ethernet ports via the two XAUI slots
    Network Management One dedicated 10/100Base-T RJ-45 port Ethernet port
    Serial Management One dedicated RJ-45 port
    Serial One DB-9 serial port connector
    SAS One LSI Logic SAS1068E 8-port, 3.0 Gbit/sec. SAS/SATA Controller
    USB Front: 2 USB 2.0 Ports
    Rear: 2 USB 2.0 Ports
    PCI Expansion Slots
    • 8 low-profile, PCI-Express slots.
    • Slots 4 and 5 share the rear opening with optional 10Gbit Ethernet (XAUI) cards which plug in
      behind the PCI-E connectors. When the XAUI card is used, no PCI-E card can be used in the
      Corresponding PCI-E slot.
    Slot # Physical Electrical
    0 x8 x8
    1 x16 x8
    2 x8 x8
    3 x8 x8
    4 x8 x8
    5 x8 x8
    6 x16 x8
    7 x8 x8
    Internal Mass Storage
    Disks
    • 1 to 4 73GB 10K RPM, 73GB 15K RPM or 146GB 10K RPM SAS 2.5 inch form factor disk drives
    • 1 to 4 300GB, 10K RPM SAS 2.5 inch form factor disk drives
    Solid State Drives
    • Up to 4 32GB solid state drives
    DVD-ROM One slimline slot-loaded DVD-R/W
    Power Supplies
    4 × 1,133 Watt, hot-swappable, 2 + 2 redundant power supply units (PSU)
    Environment
    Input Voltage 100 – 240 VAC, 50-60Hz
    Input Current 26.3A @ 100 VAC (max)
    12.6A @ 200-240 VAC (max)
    Idle/Peak Power Minimum Configuration: 495 / 590 W
    Maximum Configuration: 1,540 / 1,983 W
    Maximum Operating Input Power at 100 VAC 2,629 W
    Heat Output 8,970.5 BTU/hr or 9,464.4 KJ/hour
    Temperature Operating: 5° C to 35° C (41° F to 95° F)
    Nonoperating:-40° C to 65° C (-40° F to 149° F)Note: Above 900m (3000 ft), decrease maximum temperature as altitude increase, 1° C/300m (1.6° F/1000ft)
    Humidity Operating: 10% to 90% relative humidity noncondensing, 27° C (80.6° F) wet bulb
    Nonoperating: 93% relative humidity noncondensing, 35° C (95° F) wet bulb
    Altitude Operating: 0 to 3000m (0 to 10,000 ft.)
    Nonoperating: 0 to 12,000m (0 to 40,000 ft.)
    Vibration Operating: 0.15G (z-axis), 0.10G (x,y axes) 5-500Hz sine
    Nonoperating: 0.5G (z-axis), 0.25G (x,y axes) 5-500Hz sine
    Shock Operating: 3G, 11 ms half-sine
    Nonoperating: 1-inch roll-off free fall, front-to-back rolling directions
    Regulations
    Meets or exceeds the following requirements:
    RoHS Compliance Level RoHS:Y
    Safety UL/CSA-60950-1, EN60950-1, IEC60950-1 CB Scheme with all country deviations, IEC825-1,2 CFR21 part 1040, CNS14336
    Ergonomics EK1-ITB-2000
    RFI/EMI EN55022 Class A, 47 CFR 15B Class, ICES-003 Class A, VCCI Class A, AS/NZ3548 Class A, CNS 13438 Class A, KSC 5858 Class A, EN61000-3-3
    Immunity EN55024, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11
    Dimensions and Weight
    Height 176 mm (6.92 in.)
    Width 445 mm (17.5 in.)
    Depth 633 mm (24.9 in.)
    Weight 40 kg (88 lb.) (4x processors at 1.2GHz, 64x 4GB FB-DIMMs, 4x 146GB HDDs, and no PCI cards or rack mounts)
    Batteries
    Option # Manufacturing
    Part #
    Description
    n/a 150-4277 3V Lithium coin battery, RoHS:Y
    CPU Module
    Option # Manufacturing
    Part #
    Description
    SEVX1CC1Z 596-7387 1.2GHz 8-Core UltraSPARC T2 Plus, 16GB 667MHz, w/Memory Expansion Board, RoHS:Y
    • 501-7954
    • 4GB DDR2-667/PC2-5300 1.8V FBDIMM, RoHS:Y
    • 541-2551
    • 12-Slot FBDIMM Memory Module, 667MHz
    • 541-2754
    • 1.2GHz 8-Core UltraSPARC T2 Plus CPU Module/Memory Module, RoHS:Y
    SEVX1DC1Z 596-7135 1.4GHz 8-Core UltraSPARC T2 Plus, 16GB 667MHz, w/Memory Expansion Board, RoHS:Y
    • 501-7954
    • 4GB DDR2-667/PC2-5300 1.8V FBDIMM, RoHS:Y
    • 541-2551
    • 12-Slot FBDIMM Memory Module, 667MHz
    • 541-2753
    • 1.4GHz 8-Core UltraSPARC T2 Plus CPU Module/Memory Module, RoHS:Y
    SEVX1DD1Z 596-7788 1.4GHz 8-Core UltraSPARC T2 Plus, 32GB 667MHz, w/Memory Expansion Board, RoHS:Y
    • 511-1262
    • 8GB DDR-667/PC2-5300 1.8V FBDIMM, RoHS:Y
    • 541-2551
    • 12-Slot FBDIMM Memory Module, 667MHz
    • 541-2753
    • 1.4GHz 8-Core UltraSPARC T2 Plus CPU Module/Memory Module, RoHS:Y
    SEVX1EC1Z 594-6392 1.6GHz 8-Core UltraSPARC T2 Plus, 16GB 667MHz, w/Memory Expansion Board, RoHS:Y
    • 501-7954
    • 4GB DDR2-667/PC2-5300 1.8V FBDIMM, RoHS:Y
    • 541-3790
    • 1.6GHz 8-Core UltraSPARC T2 Plus CPU Module/Memory Module, RoHS:Y
    • 541-3791
    • 12-Slot FBDIMM Memory Module, 800MHz, RoHS:Y
    SEVX1EC2Z 594-6394 1.6GHz 8-Core UltraSPARC T2 Plus, 16GB 800MHz, w/Memory Expansion Board, RoHS:Y
    • 511-1408
    • 4GB DDR2-800/PC2-6400 1.8V FBDIMM, RoHS:Y
    • 541-3790
    • 1.6GHz 8-Core UltraSPARC T2 Plus CPU Module/Memory Module, RoHS:Y
    • 541-3791
    • 12-Slot FBDIMM Memory Module, 800MHz, RoHS:Y
    SEVX1ED1Z 594-6393 1.6GHz 8-Core UltraSPARC T2 Plus, 32GB 667MHz, w/Memory Expansion Board, RoHS:Y
    • 511-1262
    • 8GB DDR-667/PC2-5300 1.8V FBDIMM, RoHS:Y
    • 541-3790
    • 1.6GHz 8-Core UltraSPARC T2 Plus CPU Module/Memory Module, RoHS:Y
    • 541-3791
    • 12-Slot FBDIMM Memory Module, 800MHz, RoHS:Y
    SEVX1CB1Z 596-7129 1.2GHz 8-Core UltraSPARC T2 Plus, 8GB 667MHz, w/Memory Expansion Board, RoHS:Y
    • 511-1161
    • 2GB DDR2-667/PC2-5300 1.8V FBDIMM, RoHS:Y
    • 541-2551
    • 12-Slot FBDIMM Memory Module, 667MHz
    • 541-2754
    • 1.2GHz 8-Core UltraSPARC T2 Plus CPU Module/Memory Module, RoHS:Y
    SEVX1CD1Z 596-7787 1.2GHz 8-Core UltraSPARC T2 Plus, 32GB 667MHz, w/Memory Expansion Board, RoHS:Y
    • 511-1262
    • 8GB DDR-667/PC2-5300 1.8V FBDIMM, RoHS:Y
    • 541-2551
    • 12-Slot FBDIMM Memory Module, 667MHz
    • 541-2754
    • 1.2GHz 8-Core UltraSPARC T2 Plus CPU Module/Memory Module, RoHS:Y
    SEVX1DB1Z 596-7664 1.4GHz 8-Core UltraSPARC T2 Plus, 8GB 667MHz, w/Memory Expansion Board, RoHS:Y
    • 511-1161
    • 2GB DDR2-667/PC2-5300 1.8V FBDIMM, RoHS:Y
    • 541-2551
    • 12-Slot FBDIMM Memory Module, 667MHz
    • 541-2753
    • 1.4GHz 8-Core UltraSPARC T2 Plus CPU Module/Memory Module, RoHS:Y
    SEVX1EB1Z 594-6391 1.6GHz 8-Core UltraSPARC T2 Plus, 8GB 667MHz, w/Memory Expansion Board, RoHS:Y
    • 511-1161
    • 2GB DDR2-667/PC2-5300 1.8V FBDIMM, RoHS:Y
    • 541-3790
    • 1.6GHz 8-Core UltraSPARC T2 Plus CPU Module/Memory Module, RoHS:Y
    • 541-3791
    • 12-Slot FBDIMM Memory Module, 800MHz, RoHS:Y
    Cables
    Option # Manufacturing
    Part #
    Description
    X311L Localized Power Cord Kit – North America/Asia, RoHS:Y
    180-1097 IEC 320 C13 to NEMA 5-15P – 15A/125V 2.5M Black, RoHS:Y
    X312E Localized Power Code Kit – China, RoHS:Y
    180-1982 IEC 320 C13 to GB 2099/GB 1002 – 10A/250V 2.5M, RoHS:Y
    X312F Localized Power Cord Kit – Argentina, RoHS:Y
    180-1999 IEC 320 C13 to IRAM 2073 – 10A/250V 2.5M Black, RoHS:Y
    X312G Localized Power Cord Kit – Korea, RoHS:Y
    180-1662 IEC 320 C13 to KSC 8305 – 15A/250V 2.5M Black, RoHS:Y
    X312L Localized Power Cord Kit – Continental Europe, RoHS:Y
    180-1993 IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black, RoHS:Y
    X314L Localized Power Cord Kit – Swiss, RoHS:Y
    180-1994 IEC 320 C13 to SEV 1011 – 10A/250V 2.5M Black, RoHS:Y
    X317L Localized Power Cord Kit – U.K., RoHS:Y
    180-1997 IEC 320 C13 to BS 1363 – 10A/250V 2.5M Black, RoHS:Y
    X320A Localized Power Cord Kit – North America/Asia, RoHS:Y
    180-2164 IEC 320 C13 to NEMA 6-15P – 10A/250V 2.0M Black, RoHS:Y
    X332T International Power Cord Kit, RoHS:Y
    180-2071 Blue 16A IEC 309 to IEC 320 C13 International 4.0M, RoHS:Y
    X333A-25-10-IL Localized Power Cord Kit Israel, RoHS:Y
    180-2130 IEC 320 C13 to SI-32, 10A/250V, 2.5M, Black, RoHS:Y
    X333A-25-15-JP Localized Power Cord Kit Japan, RoHS:Y
    180-2243 IEC 320 C13 to PSE 5-15P, 15A/125V, 2.5M, Black, RoHS:Y
    X333A-25-15-TW Localized Power Cord Kit – Taiwan, RoHS:Y
    180-2333 IEC 320 C13 to CNS 690 – 15A/125V 2.5M Black, RoHS:Y
    X333F-25-15-JP Localized Power Cord Kit Japan, RoHS:Y
    180-2244 IEC 320 C13 to PSE 6-15P, 15A/250V, 2.5M, Black, RoHS:Y
    X340L Power Kit for North America, L6-20 20A Twist Lock Plug, RoHS:Y
    180-2070 NEMA L6-20P to IEC 320 C13 – 4.0M, RoHS:Y
    X383L Localized Power Cord Kit – Danish, RoHS:Y
    180-1995 IEC 320 C13 to Asfnit 107 – 10A/250V 2.5M Black, RoHS:Y
    X384L Localized Power Cord Kit – Italian, RoHS:Y
    180-1996 IEC 320 C13 to CEI 23-16/VII – 10A/250V 2.5M Black, RoHS:Y
    X386L Localized Power Cord Kit – Australian, RoHS:Y
    180-1998 IEC 320 C13 to AS 3112 – 10A/250V 2.5M Black, RoHS:Y
    X9237-1-A Power Cord Jumper X-Option 1.0M, RoHS:Y
    180-2082 IEC 320 Sheet E to IEC 320 C13 Power Jumper Cord 13A 90° 1.0M, RoHS:Y
    X9238-1-A Power Cord Jumper X-Option 2.5M, RoHS:Y
    180-2085 IEC 320 Sheet E to IEC 320 C13 Power Jumper Cord 13A 90° 2.5M, RoHS:Y
    Communication
    Option # Manufacturing
    Part #
    Description
    X4237A 375-3606 Sun Dual Port 40Gb/sec 4x Infiniband QDR Host Channel Adapter PCI Express, RoHS:Y
    X6000A 375-3424 PCI Express Sun Crypto Accelerator 6000, RoHS:Y
    X1236A-Z 375-3382 Dual Port 10Gb/sec 4x PCI Express Infiniband Host Channel Adapter – Low Profile, RoHS:Y
    Disk Backplane
    Option # Manufacturing
    Part #
    Description
    n/a 501-7049 4-Slot Disk Backplane, RoHS:YL
    Disks
    Option # Manufacturing
    Part #
    Description
    SEVX3C11Z 540-7151 146GB – 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks and brackets, RoHS:Y
    • 390-0324
    • Seagate ST9146802SS [ST914602SSUN146G]
      (146GB – 10000 RPM – SAS Disk), RoHS:Y
    • 390-0375
    • Fujitsu MBB2147RC [MBB2147RCSUN146G]
      (146GB – 10000 RPM – SAS Disk), RoHS:Y
    • 390-0377
    • Hitachi HUC101414CSS300 [H101414SCSUN146G]
      (146GB – 10000 RPM – SAS Disk), RoHS:Y
    • 541-0239
    • Nemo Bracket, RoHS:Y
    • 541-3004
    • Nemo Bracket with Insulator, RoHS:Y
    540-7864 146GB – 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks, RoHS:Y
    • 390-0377
    • Hitachi HUC101414CSS300 [H101414SCSUN146G]
      (146GB – 10000 RPM – SAS Disk), RoHS:Y
    • 390-0448
    • Seagate ST9146803SS [ST914603SSUN146G]
      (146GB – 10000 RPM – SAS Disk), RoHS:Y
    • 390-0450
    • Hitachi HUC103014CSS600 [H103014SCSUN146G]
      (146GB – 10000 RPM – SAS Disk), RoHS:Y
    • 541-3004
    • Nemo Bracket with Insulator, RoHS:Y
    SEVX3G11Z 540-7865 300GB – 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks, RoHS:Y
    • 390-0449
    • Seagate ST93000SSUNG [ST930003SSUN300G]
      (300GB – 10000 RPM – SAS Disk), RoHS:Y
    • 541-3004
    • Nemo Bracket with Insulator, RoHS:Y
    SEVX3Y11Z 540-7843 32GB Solid State Drive Assembly, SATA Interface, RoHS:Y
    • 371-4196
    • 32GB Solid State Drive, SATA Interface, RoHS:Y
    • 541-0239
    • Nemo Bracket, RoHS:Y
    SEVX3A11Z 540-6611 73GB 10000 RPM SAS, Disk Assembly with 1 of the following disks and brackets, RoHS:Y
    • 390-0213
    • Seagate ST973401SS [ST973401SSUN72G]
      (73GB – 10000 RPM – SAS Disk), RoHS:Y
    • 390-0285
    • Fujitsu MAY2073RC [MAY2073RCSUN72]
      (73GB – 10000 RPM – SAS Disk), RoHS:Y
    • 390-0323
    • Seagate ST973402SS [ST973402SSUN72G]
      (73GB – 10000 RPM – SAS Disk), RoHS:Y
    • 390-0374
    • Fujitsu MBB2073RC [MBB2073RCSUN72G]
      (73.4GB – 10000 RPM – SAS Disk), RoHS:Y
    • 390-0376
    • Hitachi HUC101473CSS300 [H101473SCSUN72G]
      (73.4GB – 10000 RPM – SAS Disk), RoHS:Y
    • 541-0239
    • Nemo Bracket, RoHS:Y
    • 541-3004
    • Nemo Bracket with Insulator, RoHS:Y
    SEVX3A21Z 540-7360 73GB – 15000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks, RoHS:Y
    • 390-0382
    • Seagate ST973451SS [ST973451SSUN72G]
      (73GB – 15000 RPM – SAS Disk), RoHS:Y
    • 541-0239
    • Nemo Bracket, RoHS:Y
    Ethernet
    Option # Manufacturing
    Part #
    Description
    SESX7XA1Z 501-7489 10GbE XAUI Card, RoHS:Y
    SESX7XT1Z 375-3301 10Gb/sec XFP Optical Transceiver Short Range (SR), RoHS:YL
    SESX7XT2Z 375-3495 10Gb/sec XFP Optical Transceiver Long Range (LR), RoHS:Y
    SG-XPCIEFCOE2-Q-SR 375-3681 Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA – SR, RoHS:Y
    SG-XPCIEFCOE2-Q-TA 375-3682 Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA – Direct Attach, RoHS:Y
    X1027A-Z 501-7283 PCI Express Dual 10-Gigabit Ethernet Fiber, RoHS:Y
    X1106A-Z 375-3585 Intel PRO/10GbE-SR x8 PCI Express Low Profile Bracket, RoHS:Y
    X1107A-Z 375-3586 Intel PRO/10GbE-SR x8 PCI Express Low Profile Bracket, RoHS:Y
    X4447A-Z 511-1422 PCI Express Quad Gigabit Ethernet UTP, RoHS:Y
    • 371-2207
    • Bracket Low-Profile, RoHS:Y
    560-2884 Ship Kit for Gigabit Ethernet options
    • 371-2348
    • Bracket Standard, RoHS:Y
    X5558A 375-3301 10Gb/sec XFP Optical Transceiver Short Range (SR), RoHS:YL
    X5560A-Z 375-3495 10Gb/sec XFP Optical Transceiver Long Range (LR), RoHS:Y
    X7280A-2 371-0905 PCI Express Dual Gigabit Ethernet UTP, RoHS:Y
    X7281A-2 371-0904 PCI Express Dual Gigabit Ethernet MMF, RoHS:Y
    n/a 501-7606 PCI Express Quad Gigabit Ethernet UTP, RoHS:Y
    • 371-2207
    • Bracket Low-Profile, RoHS:Y
    • 371-2348
    • Bracket Standard, RoHS:Y
    Fan
    Option # Manufacturing
    Part #
    Description
    n/a 541-2945 Fan Assembly w/ Metal Fingerguards, RoHS:Y
    Fibre Channel
    Option # Manufacturing
    Part #
    Description
    SG-XPCIE1FC-EM4 375-3396 4Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y
    SG-XPCIE1FC-EM8-Z 371-4295 8Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y
    SG-XPCIE1FC-QF4 375-3355 4Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y
    SG-XPCIE1FC-QF8-Z 371-4324 8Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y
    SG-XPCIE2FC-EM4 375-3397 4Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y
    SG-XPCIE2FC-EM8-Z 371-4306 8Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y
    SG-XPCIE2FC-QF4 375-3356 4Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y
    SG-XPCIE2FC-QF8-Z 371-4325 8Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y
    Graphics
    Option # Manufacturing
    Part #
    Description
    X3000A 375-3545 XVR-300 x8 Graphics Accelerator, RoHS:Y
    530-3474 DVI-A(M) to HD15F Adapter, 49mm, RoHS:Y
    530-3998 DMS-59 to Dual DVI-I Cable, 215mm, RoHS:Y
    Memory
    Option # Manufacturing
    Part #
    Description
    SESX2B2Z 4GB Memory Expansion (2 × 2GB) X-Option, RoHS:Y
    511-1161 2GB DDR2-667/PC2-5300 1.8V FBDIMM, RoHS:Y
    SESX2C1Z 8GB Memory Expansion (2 × 4GB) X-Option, RoHS:Y
    501-7954 4GB DDR2-667/PC2-5300 1.8V FBDIMM, RoHS:Y
    SESX2C4Z 8GB Memory Expansion (2 × 4GB) X-Option, RoHS:Y
    511-1408 4GB DDR2-800/PC2-6400 1.8V FBDIMM, RoHS:Y
    SESX2D1Z 16GB Memory Expansion (2 × 8GB) X-Option, RoHS:Y
    511-1262 8GB DDR-667/PC2-5300 1.8V FBDIMM, RoHS:Y
    n/a 541-2551 12-Slot FBDIMM Memory Module, 667MHz
    n/a 541-3791 12-Slot FBDIMM Memory Module, 800MHz, RoHS:Y
    Miscellaneous
    Option # Manufacturing
    Part #
    Description
    n/a 501-7057 USB Board, RoHS:YL
    Power
    Option # Manufacturing
    Part #
    Description
    n/a 300-2158 1133 Watt Power Supply (Type A238), RoHS:Y
    n/a 371-4650 Energy Storage Module (ESM), RoHS:Y
    n/a 511-1044 Power Distribution Board
    Rack
    Option # Manufacturing
    Part #
    Description
    SEVX9CA1Z 350-1250 Cable Management Arm, RoHS:Y
    SEVX9RK1Z 350-1251 Screw-Mount Slide Rail Rackmount Kit, RoHS:Y
    Removable Media
    Option # Manufacturing
    Part #
    Description
    SEVX9DV1Z 390-0403 8x PATA DVD-Writer / 24x CD-Writer, RoHS:Y
    SCSI
    Option # Manufacturing
    Part #
    Description
    SG-XPCIE2SCSIU320Z 375-3357 Dual-Channel Ultra320 LVD SCSI PCI Express Adapter, RoHS:Y
    SG-XPCIE8SAS-E-Z 375-3487 PCI Express 8-Port Host Adapter, RoHS:Y
    XTA-FAS-S3IE96GB 541-3731 96GB PCI Express Flash Accelerator F20 SAS HBA, RoHS:Y
    • 371-4415
    • 24GB Solid State Flash Memory Module, RoHS:Y
    • 371-4650
    • Energy Storage Module (ESM), RoHS:Y
    • 511-1500
    • PCI Express Flash Board, RoHS:Y
    System Board
    Option # Manufacturing
    Part #
    Description
    n/a 541-2749 Motherboard, RoHS:YL
    System Service Processor
    Option # Manufacturing
    Part #
    Description
    n/a 541-2751 Service Processor Assembly, RoHS:Y
    • 150-4277
    • 3V Lithium coin battery, RoHS:Y
    • 501-7786
    • Service Processor, RoHS:Y
    • 525-2146
    • SSCC NVRAM, RoHS:Y
    n/a 541-3908 Service Processor Assembly, RoHS:Y
    • 150-4277
    • 3V Lithium coin battery, RoHS:Y
    • 511-1425
    • Service Processor, RoHS:Y
    • 525-2146
    • SSCC NVRAM, RoHS:Y

    Industry Leading Quality, Support and Integrity

    Quality Inspection Checklist
    Before it leaves our facility, every used and refurbished item is thoroughly inspected by our certified technicians and undergoes our exclusive Quality Inspection Checklist to ensure 100% satisfaction guarantee.

    Greentec Systems is a leading provider
    For server, networking and storage equipment. We have an extensive array of inventory of IBM Servers & Storage, Sun Servers & Storage, Cisco Networking (Switches, Routers, Security), and NetApp Storage (disk shelves, disk drives, Filers, NearStore, NetCache). If you don’t see the item or product you require please contact us.

    Have this equipment to sell?
    Depending on the age and condition of the equipment, there is a very good likelihood that we will be able to offer you cash or trade-in credit for other IT hardware. If the equipment is very old we can also assist you with properly decommissioning that gear in the most environmentally friendly way possible.

    Questions?
    For more information please contact 888.333.7388, or fill out the quote from above. We’d love to hear from you.

    Request Quote
    Greentec Systems We geek out helping you with your IT infrastructure.
    Request a quote or product information
    Send
