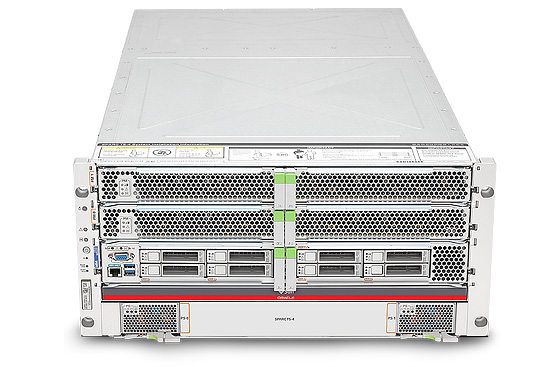

Oracle Sun SPARC T5-4 Server SPECS & APPLICATIONS
REQUEST A PRICE QUOTE:
The SPARC T5-4 server is a high-performing four-socket server based on the SPARC T5 processor and optimized for data-intensive and enterprise workloads. The SPARC T5-4 delivers unsurpassed single-thread and multithread throughput performance, built-in no-cost encryption, and enterprise availability features, all in a modular and compact 5U design. It is an optimal server platform for demanding enterprise applications, server and application consolidation, and Oracle Database applications requiring the highest availability and performance.
Utilizing modular design architecture, the SPARC T5-4 is powered by four SPARC T5 CPUs—Oracle’s fastest SPARC chip ever—delivering a 1.2x improvement in single-thread performance and a 2x improvement in throughput performance over the previous generation. With 16 cores and 16 memory slots per SPARC T5 processor, the SPARC T5-4 provides extreme compute density with up to 64 cores and 2 TB of system memory, all within a 5U enclosure. Oracle’s SPARC T5-4 server combines high single-thread performance with massive system throughput and I/O capacity, making it uniquely qualified for demanding applications and large-scale server consolidation.
- 2x throughput performance and 1.2x single-thread performance increase over previous generation accelerates application performance and improves scalability
- Enterprise-class availability in a compact design
- Built-in, no-cost virtualization technology with Oracle VM Server for SPARC and Oracle Solaris Zones simplifies server consolidation, improves utilization, and reduces operational overhead
- Runs Oracle Solaris 11 and Oracle Solaris 10 with guaranteed binary compatibility and support for legacy applications
- Massive I/O performance supports up to 16 hot-pluggable low-profile PCIe 3.0 slots
SPARC T5-4 Server: Hardware Specifications
|
| Sun T5-4 Processor | |
| Number | Two or Four SPARC T5 16-Core 3.6GHz processors |
| Architecture | SPARC V9 architecture, ECC protected |
| CPUs |
|
| Cache memory | 4MB integrated L3 with a private L2 128K cache |
| Main Memory | |
| Capacities |
|
| Standard Integrated Interfaces | |
| Network | 4 × 100Mbps/1Gbps/10Gbps ports (rear) |
| Network Management | One dedicated 10/100Base-T NET MGT port (rear) Note: This port does not support connections to Gigabit networks. |
| Serial Management | Two RJ-45 SER MGT ports (1 front, 1 rear) An additional serial management port is located on the main module and is accessible from the front panel. |
| Remote Management | Onboard system processor, running Integrated Lights Out Manager (ILOM) 3.21 |
| Graphics | Two high-density DB-15 video ports (1 front, 1 rear) |
| USB |
Front: 2 USB 3.0 Ports Rear: 2 USB 3.0 Ports Internal: 1 USB 2.0 Ports |
| PCI Expansion Slots | 16 low-profile PCI-Express 3.0 slots (x8 wired) accessed via a PCIe hot-plug carrier |
| Internal Mass Storage | |
| Disks |
|
| Power Supplies | |
| 2 × 3,000 Watt, hot-swappable, 1+1 redundant power supply units (PSU) | |
| Environment | |
| Power Consumption | Online power calculator |
| Voltage | 200 to 240 VAC |
| Frequency | 50 to 60 Hz |
| Maximum operating input current at 200 VAC | 16A (16A per cord) (Actual amperage draw may exceed rating by no more than 10%) |
| Maximum operating input power at 200 VAC | 3000W (Actual power draw may exceed rating by no more than 10%) |
| Maximum standby power | 140W |
| Maximum heat dissipation | 10,717 BTU/hr, 11,306 KJ/hr |
| Temperature |
Operating: 5° C to 35° C (41° F to 95° F) Nonoperating: -40° C to 65° C (-40° F to 149° F) Note: Decrease in maximum temperature: above 900 m (2,952 ft.) 1° C/300 m (1.8° F/984 ft.) |
| Humidity |
Operating: 10% to 90% relative humidity noncondensing, 27° C (81° F) wet bulb Nonoperating: 93% relative humidity, noncondensing, 38° C (100° F) wet bulb |
| Altitude |
Operating: 0m to 3000m (9,840 ft.) except in China markets where regulations may limit installations to a maximum altitude of 2,000 m Nonoperating: 0m to 12000m (39,370 ft.) |
| Vibration |
Vertical: 0.15G , 5-500Hz swept sine Horizontal: 0.10G |
| Shock | 3Gs, 11ms half-sine |
| Acoustic Noise |
Operating at peak power: 9.4 B (LwAd, 1B = 10dB) Operating/Idling: 79.7dB (LpAm, bystander positions) |
|
Regulations Meets or exceeds the following requirements: |
|
| Safety | UL/CSA 60950-1 (2nd Ed), EN 60950-1(2nd Ed), IEC 60950-1(2nd Ed) CB Scheme with all country deviations, CNS 14336-1 |
| EMI/EMC | EN 55022 Class A, 47 CFR 15B Class A, ICES-003 Class A, VCCI Class A, CISPR22 Class A, CNS 13438 Class A, KN22 Class A, EN 61000-3-2, EN 61000-3-3 |
| Immunity | EN 55024 and KN24 |
| Regulatory Markings | CE, FCC, ICES-003, C-Tick, VCCI, GOST-R, BSMI, KC, cULus, S-Mark |
| European Union Directives | 2006/95/EC (73/23/EEC) Low Voltage Directive, 2004/108/EC (89/336/EEC) EMC Directive, 2002/96/EC Waste Electrical and Electronic Equipment (WEEE) Directive, 2002/95/EC Restriction of Hazardous Substances (RoHS) Directive |
| Dimensions and Weight | |
| Height | 215 mm (8.5 in.) |
| Width | 445 mm (17.5 in.) |
| Depth | 800 mm (31.5 in.) |
| Weight | Appx 75.4 kg (166 lbs) (without rackmount kit) |
| Clearance and Service Access | |
| Front | 914.4 mm (36 in.) |
| Rear | 914.4 mm (36 in.) |
