Oracle Sun Netra T6340 Server

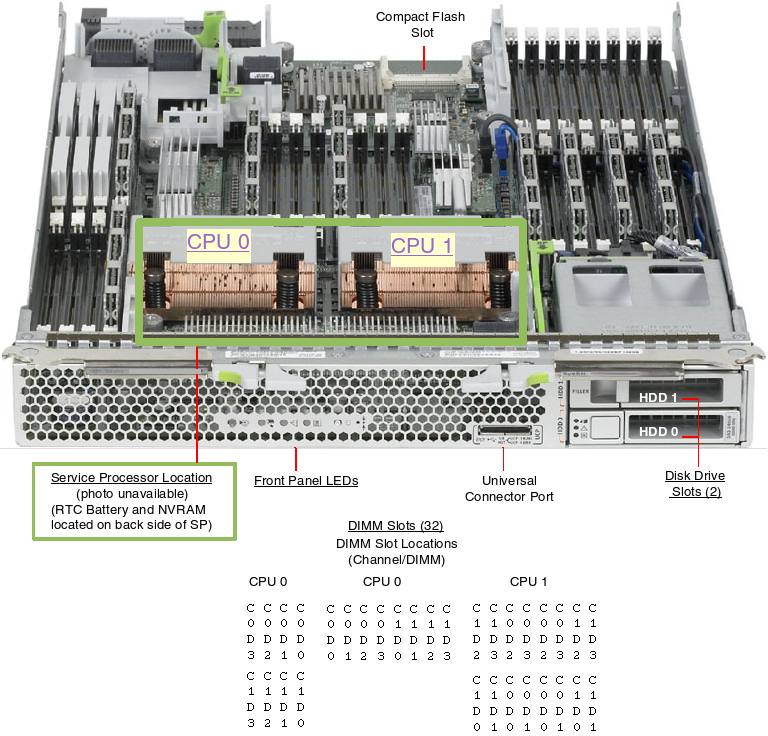

Oracle Sun Netra T6340 Server Oracle Sun Netra T6340 Server Netra T6340 top callout

REQUEST A PRICE QUOTE:

    Name*

    Phone

    Details*


    Brand: Oracle / Sun Microsystems
    Condition: Refurbished and new (limited availability)
    Availability: Contact
    Shipping Area: Worldwide to most countries
    Shipping Method: Fedex (most orders), UPS, DHL, Freight Courier
    Price: Please use the quote form above for quick pricing
    Payment: Credit Card, Check, Net Terms (oac), Wire Transfer (required for international orders)
    Guarantee: All items are tested by Oracle trained technicians & backed by a 100% warranty
    Questions? Don’t hesitate to contact us with any questions regarding compatibility or other product info and requests. Our website represents only a fraction of our full inventory. Please reach out with your full requirements



    Specs and Information:

    Processor
    Number Two.
    Architecture Type:UltraSPARC T2 Plus processor.
    • Model/Speed:8-Core, 1.4 GHz
    Cache Memory 4 MB L2 Cache.
    Main Memory
    Memory Type 1.5V fully buffered ECC Registered DIMMs.
    Capacities
    • Maximum memory: 256GB.
    • Total DIMM slots:32.
    • DIMM sizes: 4GB and 8GB.
    Optional Storage
    Internal Disk
    • Up to two optional, hot swappable, hot pluggable, small form factor (SFF) drive bays per blade.
    Drive Type Density Speed Form Factor
    SAS 300 GB 10,000 RPM SFF 2.5″
    Management Environment
    Service Processor (SP)
    • The SP card is installed with Integrated Lights-Out Manager (ILOM) software.
    • ILOM can be accessed via a Dongle cable assembly connection to the Universal Connector Port (UCP) on the front of the Sun Netra T6340.
    • To connect to ILOM using the three connector dongle cable, use the RJ-45 serial connector.
    • The Dongle cable assembly is provided with the Sun Netra 6000.
    • The SP delivers:
        • Direct manageability – same as Oracle rack-mounted servers.
        • Full monitoring of blade by SNMP.
        • Graphical user interface (GUI) and comprehensive command-line interface (CLI) emulating Advanced Lights Out Manager (ALOM)

      Secure access and control.

        • Full-featured virtual console through remote KVMS feature.

      (Optional Oracle Enterprise Manager, an advanced hardware management enabling discovery, grouping, bare metal provisioning, hardware and OS monitoring, and integrated Oracle VM Server for SPARC management.

    Standard Integrated Interfaces
    Universal Connector Port (UCP)
    • Front accessible UCP provides Serial Management connection to ILOM via Dongle cable.
      • Three-Connector Cable Dongle (UCP-3)
      • Dual USB 2.0 ports for keyboard, mouse or storage.
      • 15-pin VGA Female connector
      • RJ-45 serial connector used to connect to ILOM
    Network management Two 10/100Base-T Ethernet port connections via midplane to the Chassis Monitoring Module (CMM). Only one connection (NET 0) is used.
    Ethernet Two 10/100/1000Base-T Ethernet ports routed through midplane to 2 NEM slots.
    PCI Interfaces with the Sun Netra Modular System (chassis)
    • I/O is offered in two form factors:
      • PCI Express ExpressModules (EM)
        and
      • PCI Express Network Express Modules (NEM).
    • Each Sun Netra T6340 has four, x8 lane PCI Express links allocated to:
      • Two EMs
        and
      • Two NEMs.
    • Each NEM has one link assigned to each server module. All server modules share the NEM. For example, Blade 0 has access to NEM 0/slot 0, and NEM 1/slot 0. Blade 1 to NEM 0/slot 1 and NEM 1/slot 1, etc.
    • EM slots are not shared between server modules. Each EM slot is specific to one server module.
    Regulations
    NEBS Compliance Level NEBS Level 3 Certification
    Dimensions and Weights
    Height 44.5mm (1.75 in).
    Width 327.15mm (12.88 in).
    Depth 496.82 (19.56 in).
    Weight (fully configured) 9.1 kg (20.0 lbs).
    Batteries
    Option # Manufacturing
    Part #
    Description Previous
    Part #
    n/a 150-1204 3V Lithium Coin Cell Battery n/a
    Blade
    Option # Manufacturing
    Part #
    Description Previous
    Part #
    n/a 594-6439 Sun Netra T6340 Server Module with 2 CPUs (1.4GHz, 8-core UltraSPARC T2+) n/a
    • 511-1519 [C]
    • Service Processor Assembly
    n/a
      • 150-1204
      • 3V Lithium Coin Cell Battery
    n/a
      • 525-2588
      • IDPROM
    n/a
    • 541-4290 [C]
    • Sun Netra T6340 Motherboard/CPU (1.4GHz, 8-core, UltraSPARC T2+) Assembly
    n/a
    Cables
    Option # Manufacturing
    Part #
    Description Previous
    Part #
    X4622A 3 [S] Dongle II Cable Assembly for Universal Connector Port (UCP) with three connectors: 1 VGA HD15, 1 RJ45, 2×USB, and 1 DB9 to RJ45 Adapter
    530-3100 RJ45F to DB9F Adapter n/a
    7046680 [C] USB/VGA/RJ45 Dongle Cable Adapter 530-3936 [C]
    n/a 530-3888 Hard Disk Drive Power Cable n/a
    n/a 530-3936 [C] USB/VGA/RJ45 Dongle Cable Adapter n/a
    n/a 530-3995 Blue SAS Cable n/a
    n/a 530-4038 Black SAS Cable n/a
    3 X4622A is not a NEBS qualified product. The dongle cable is for debug purposes.
    Disks
    Option # Manufacturing
    Part #
    Description Previous
    Part #
    n/a 540-7869 [C] 300GB – 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
    • 390-0449
    • Seagate ST9300603SS [ST930003SSUN300G]
      (300GB – 10000 RPM – SAS Disk)
    n/a
    • 390-0451
    • Hitachi HUC103030CSS600 [H103030SCSUN300G]
      (300GB – 10000 RPM – SAS Disk)
    n/a
    • 541-2123
    • Marlin 2.5″ Bracket
    n/a
    Memory
    Option # Manufacturing
    Part #
    Description Previous
    Part #
    T6340-X-24 [S] 8 GB (2 × 4GB 1.55V FBDIMM) Memory Kit
    511-1152 [C] 4GB DDR2-667/PC2-5300 1.5V DIMM n/a
    T6340-X-28 [S] 16GB (2 × 8GB 1.55V FBDIMM) Memory Kit
    511-1228 [C] 8GB DDR2-667/PC2-5300 1.5V DIMM n/a
    SCSI
    Option # Manufacturing
    Part #
    Description Previous
    Part #
    X4607A [S] 511-1098 [C] RAID 0/1 Expansion Module n/a
    System Service Processor
    Option # Manufacturing
    Part #
    Description Previous
    Part #
    n/a 511-1519 [C] Service Processor Assembly n/a
    • 150-1204
    • 3V Lithium Coin Cell Battery
    n/a
    • 525-2588
    • IDPROM
    n/a
