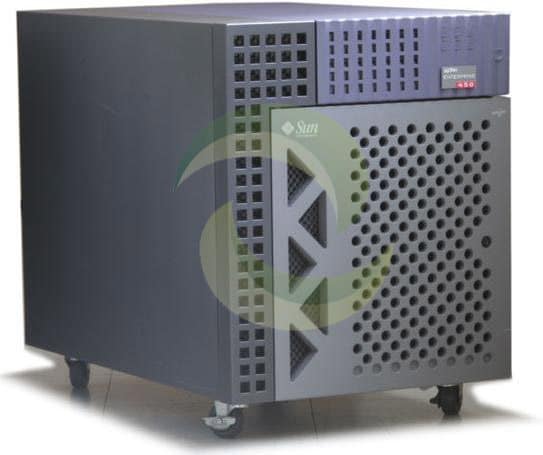

Oracle Sun 450 Server

Oracle Sun 450 Server Oracle Sun 450 Server Sun Servers SUN ENTERPRISE E450 copy

REQUEST A PRICE QUOTE:

    Name*

    Phone

    Details*




    Processor
    Number From one to four processor modules
    Architecture 250-, 300-, 400- or 480-MHz UltraSPARC[tm]-II modules with onboard E-cache
    Cache memory 16-KB I-cache, 16-KB D-cache per processor1-MB external cache per processor with 250-MHz CPU

    2-MB external cache per processor with 300-MHz CPU

    4-MB external cache per processor with 400-MHz CPU

    Datapath Two independent, buffered 144-bit UPA buses; 128 bits data, 16 bits ECC; two processors per busUPA operates at 100-MHz with 300-MHz or 400-MHz processors
    Main Memory
    Capacities 16 DIMM module slots; four banks of four slotsAccepts 32-, 64-, 128-MB or 256-MB DIMMs

    128 MB to 4 GB total memory capacity

    Memory type 144-pin 5V 60-ns memory modules
    Datapath 576 bits wide; 512 bits data, 64 bits ECCUp to 1.78-GB/sec throughput
    Standard Interfaces
    Ethernet One ethernet/fast ethernet (10BASE-T/100BASE-T) twisted-pair standard connector (RJ-45) or one MII for external transceiver connection, autoselect port
    Keyboard and mouse One standard keyboard/mouse port (mini DIN-8)
    Parallel One Centronics compatible, bidirectional, EPP port (DB25)
    PCI Ten slots compliant with PCI specification version 2.1:
    • Three slot operating at 33- or 66-MHz, 32- or 64-bit data bus width, 3.3 volt
    • Four slots operating at 33-MHz, 32- or 64-bit data bus width, 5 volt
    • Three slots operating at 33-MHz, 32-bit data bus width, 3.3 volt
    SCSI One 20MB/sec, 68-pin, Fast/Wide SCSI-2
    One, three, or five 40-MB/sec, UltraSCSI-3 buses for internal disks
    Serial Two RS-232D/RS423 serial ports (DB25 , requires a Y-type splitter cable)
    Internal Mass Storage
    Disks Up to twenty 4.2-GB, 9.1-GB, 18.2-GB, or 36.4-GB (3.5- x 1-in.) hot-swap UltraSCSI-3 drives

    Disk bays: Four, twelve, or twenty hot-swap disk bays
    Disk controllers: One, three, or five 40-MB/sec UltraSCSI-3 channels; maximum four drives per channel

    CD-ROM SunCD[tm] 12x or 32x 644-MB SCSI CD-ROM (standard)
    Floppy 1.44-MB 3.5-in. floppy drive (standard)
    Tape One bay available for optional 5.25- x 1.6-in. SCSI tape drive; 8-mm or 4-mm DDS-3, or SLR
    Power Supplies
    Type One, two, or three modular, N+1 redundant, hot swap, universal input (two supplies standard)
    Output 1210W maximum, 605W maximum each supply
    1120W maximum, 560W maximum each supply (before October 1997)
    Power bus Common, load-sharing
    Environment
    AC Input 100 – 240 VAC, 47 – 63 Hz, 13.8 A(max)
    Input Power 1664 W
    Heat Output 5680 BTU/hr
    Temperature1 Operating: 5° C to 35° C (41° F to 95° F)
    Nonoperating: -20° C to 60° C (-4° F to 140° F)
    Humidity Operating: 20% to 80% relative humidity, noncondensing
    Nonoperating: 5% to 93% relative humidity, noncondensing
    Altitude Operating: 3000 m (10,000 ft.)
    Nonoperating: 12,000 m (40,000 ft.)
    Acoustic noise Operating: 6.9 bels
    Idling: 6.3 bels
    Vibration Operating: 0.2G peak, 5 – 500 Hz, 3 perpendicular axes
    Nonoperating: 1G peak, 5 – 500 Hz, 3 perpendicular axes
    Shock Operating: 4G peak, 11 milliseconds half-sine pulse
    Nonoperating: 30G peak, 11 milliseconds half-sine pulse
    Number of cords 1
    1 The front and rear doors of the cabinet must be 63% open for adequate airflow.
    Regulations
    Meets or exceeds the following requirements:
    Safety UL 1950 and CB-scheme EN60950 with Nordic Deviations, CUL C22.2 No. 950, TUV EN60950
    RFI/EMI FCC Class B, Industry Canada Class B, EN55022/CISPR22 Class B, VCCI Class B
    Immunity EN50082-1/IEC1000-4-2, IEC1000-4-3, IEC1000-4-4, IEC1000-4-5
    Harmonics EN61000-3-2/IEC1000-3-2
    X-ray DHHS 21 Subchapter J, PTB German X-ray Decree
    Dimensions and Weights
    Height 58.1 cm (22.87 in.)
    Width 44.8 cm (17.64 in.)
    Depth 69.6 cm (27.40 in.)
    Weight 94.0 kg (205 lb.)
    Power Cord 2.5 m (8.2 ft.)
    Boot PROM
    Socket Manufacturing
    Part #
    Patch
    U3101 525-1776 106122
    CPU Module
    Option # Manufacturing
    Part #
    Description
    X2230A 501-4857 250MHz UltraSPARC II Module
    X2240A 501-4849 300MHz UltraSPARC II Module
    X2244A 501-5446 400MHz UltraSPARC II Module
    X2248A 501-5729 480MHz UltraSPARC II Module
    n/a 501-6069 480MHz UltraSPARC II Module
    n/a 501-6070 400MHz UltraSPARC II Module
    Cables
    Option # Manufacturing
    Part #
    Description
    X985A 530-1869 Serial Port Adapter (Y-Splitter) Cable, 50 cm
    Communication
    Option # Manufacturing
    Part #
    Description
    X1035A 370-2811 FDDI/P SAS 1.0
    X1036A 370-2812 FDDI/P DAS 1.0
    X1039A 375-0001 Token Ring Interface PCI (TRI/P) 1.0
    X1040A 370-2728 High Speed Serial Interface PCI (HSI/P) 1.0
    X1041A 370-2810 Serial Asynchronous Interface PCI (SAI/P) 1.0
    X1066A 501-3028 SunATM-155/MFiber PCI 3.0
    X1067A 501-3027 SunATM-155/UTP PCI 3.0
    X1068A 501-3029 SunATM-622/MFiber PCI 3.0
    X1133A 375-0130 Crypto Accelerator I
    X1152A 370-2811 FDDI/P SAS 2.0
    X1153A 370-2812 FDDI/P DAS 2.0
    X1154A 375-0001 Token Ring Interface PCI (TRI/P) 4.0
    X1155A 370-2728 High Speed Serial Interface PCI (HSI/P) 2.0
    X1156A 370-2810 Serial Asynchronous Interface PCI (SAI/P) 2.0
    X1157A 501-3028 SunATM-155/MFiber PCI 4.0
    X1158A 501-3027 SunATM-155/UTP PCI 4.0
    X1159A 501-3029 SunATM-622/MFiber PCI 4.0
    X2154A 375-0073 Token Ring Interface (TRI/P) 5.0
    X2156A 375-0100 Serial Asynchronous Interface PCI (SAI/P) 3.0
    X6762A 375-3089 Crypto Accelerator 1000
    Disks
    Option # Manufacturing
    Part #
    Description
    X5214A 540-2938 4.2GB – 7200 RPM, Disk Assembly with 1 bracket, and 1 of the following disks:
    • 370-2367
    • Seagate ST34371WC
      (4.2GB – 7200 RPM – SCSI Disk)
    • 370-2809
    • Quantum VK45J05
      (4.2GB – 7200 RPM – SCSI Disk)
    • 370-3403
    • IBM DDRS-34560
      (4.2GB – 7200 RPM – SCSI Disk)
    • 370-3412
    • Fujitsu MAB3045SC [MAB3045S SUN4.2G]
      (4.2GB – 7200 RPM – SCSI Disk)
    • 540-3024
    • 1″ SPUD Bracket, RoHS:Y
    X5229A 540-3704 9.1GB – 7200 RPM, Disk Assembly with 1 bracket, and 1 of the following disks:
    • 370-3404
    • IBM DDRS-39130
      (9.1GB – 7200 RPM – SCSI Disk)
    • 370-3413
    • Fujitsu MAB3091SC [MAB3091S SUN9.0G]
      (9.1GB – 7200 RPM – SCSI Disk)
    • 370-3595
    • Seagate ST39173WC
      (9.1GB – 7200 RPM – SCSI Disk)
    • 390-0004
    • Fujitsu MAE3091LC [MAE3091L SUN9.1GB]
      (9.1GB – 7200 RPM – SCSI Disk)
    • 390-0007
    • IBM DNES-309170 [DNES30917SUN9.0G]
      (9.1GB – 7200 RPM – SCSI Disk)
    • 540-3024
    • 1″ SPUD Bracket, RoHS:Y
    X5234A 540-3881 9.1GB – 10000 RPM, Disk Assembly with 1 bracket, and 1 of the following disks:
    • 370-3649
    • Seagate ST39102LC [ST39102LCSUN9.0G]
      (9.1GB – 10000 RPM – SCSI Disk)
    • 390-0005
    • Fujitsu MAG3091LC [MAG3091L SUN9.0G]
      (9.1GB – 10000 RPM – SCSI Disk)
    • 390-0009
    • Seagate ST39103LC [ST39103LCSUN9.0G]
      (9.1GB – 10000 RPM – SCSI Disk)
    • 390-0037
    • Seagate ST39204LC [ST39204LCSUN9.0G]
      (9.1GB – 10000 RPM – SCSI Disk)
    • 540-3024
    • 1″ SPUD Bracket, RoHS:Y
    X5237A 540-4177 18.2GB – 10000 RPM, Disk Assembly with 1 bracket, and 1 of the following disks:
    • 390-0002
    • Seagate ST318203LC [ST318203LSUN18G]
      (18.2GB – 10000 RPM – SCSI Disk)
    • 390-0006
    • Fujitsu MAG3182LC [MAG3182L SUN18G]
      (18.2GB – 10000 RPM – SCSI-Disk)
    • 390-0038
    • Seagate ST318404LC [ST318404LCSUN18G]
      (18.2GB – 10000 RPM – SCSI Disk)
    • 390-0043
    • Fujitsu MAJ3182MC [MAJ3182M SUN18G]
      (18.2GB – 10000 RPM – SCSI Disk)
    • 390-0048
    • IBM DDYS-T18350 [DDYST1835SUN18G]
      (18.2GB – 10000 RPM – SCSI Disk)
    • 390-0066
    • Fujitsu MAN3184MC [MAN3184M SUN18G]
      (18.2GB – 10000 RPM – SCSI Disk)
    • 390-0085
    • Seagate ST318305LC [ST318305LSUN18G]
      (18.2GB – 10000 RPM – SCSI Disk)
    • 540-3024
    • 1″ SPUD Bracket, RoHS:Y
    X5242A 540-4521 36.4GB – 10000 RPM, Disk Assembly with 1 bracket, and 1 of the following disks:
    • 390-0050
    • Seagate ST336704LC [ST336704LSUN36G]
      (36.4GB – 10000 RPM – SCSI Disk)
    • 390-0051
    • Fujitsu MAJ3364MC [MAJ3364M SUN36G]
      (36.4GB – 10000 RPM – SCSI Disk)
    • 390-0065
    • Fujitsu MAN3367MC [MAN3367M SUN36G]
      (36.4GB – 10000 RPM – SCSI Disk)
    • 390-0069
    • Seagate ST336605LC [ST336605LSUN36G]
      (36.4GB – 10000 RPM – SCSI Disk)
    • 390-0109
    • Seagate ST336607LC [ST336607LSUN36G]
      (36.4GB – 10000 RPM – SCSI Disk)
    • 390-0110
    • Fujitsu MAP3367NC [MAP3367N SUN36G]
      (36.4GB – 10000 RPM – SCSI Disk)
    • 390-0111
    • Hitachi DK32EJ-36NC [DK32EJ36NFSUN36G]
      (36.4GB – 10000 RPM – SCSI Disk)
    • 540-3024
    • 1″ SPUD Bracket, RoHS:Y
    Ethernet
    Option # Manufacturing
    Part #
    Description
    X4445A 501-6738 Quad GigaSwift PCI-X Ethernet (QGE-X), RoHS:Y
    X1033A 501-5019 Sun FastEthernet PCI Adapter (FE/P) 2.0
    X1034A 501-5406 Quad FastEthernet PCI (QFE/P)
    X1044A 375-0002 Gigabit Ethernet PCI (GBE/P) 1.0
    X1141A 501-4373 Gigabit Ethernet PCI (GBE/P) 2.0
    X1150A 501-5902 Sun GigaSwift Ethernet UTP (Copper)
    X1151A 501-5524 Sun GigaSwift Ethernet MMF (Fiber)
    X2069A 501-5426 Gigabit Ethernet FC-AL/P
    X3150A 501-5902 Sun GigaSwift Ethernet UTP (Copper)
    X3151A 501-5524 Sun GigaSwift Ethernet MMF (Fiber)
    X4444A 501-6522 Quad GigaSwift Ethernet UTP (QGE)
    X467A 595-3780 MII to AUI Converter
    Fibre Channel
    Option # Manufacturing
    Part #
    Description
    SG-XPCI1FC-JF2 375-3156 JNI 2Gb PCI Single FC Host Adapter
    SG-XPCI1FC-QF2 375-3102 2Gb PCI Single FC Host Adapter
    SG-XPCI1FC-QL2 375-3383 2Gb PCI-X Single FC Host Adapter, RoHS:Y
    SG-XPCI2FC-JF2 375-3157 JNI 2Gb PCI Dual FC Host Adapter
    SG-XPCI2FC-QF2 375-3108 2Gb PCI Dual FC Host Adapter
    • 240-4839
    • Low Profile Bracket, RoHS:Y
    X6727A 375-3030 PCI Dual FC Host Adapter+, RoHS:YL
    X6729A 375-0040 Single Loop PCI FC-AL Host Adapter (FC100/P)
    X6767A 375-3102 2Gb PCI Single FC Host Adapter
    X6768A 375-3108 2Gb PCI Dual FC Host Adapter
    • 240-4839
    • Low Profile Bracket, RoHS:Y
    X6799A 375-3019 PCI Single FC Host Adapter
    Graphics
    Option # Manufacturing
    Part #
    Description
    X3660A 370-2256 PGX 8-Bit Color Frame Buffer
    X3668A 370-3753 PGX32 8/24-Bit Color Frame Buffer
    X3678A 370-3987 Expert3D 24-Bit Color Frame Buffer
    X3768A 370-4362 PGX64 8/24-Bit Color Frame Buffer
    n/a 370-4272 Fan Board
    IDPROM
    Socket Manufacturing
    Part #
    Component Type Host ID
    U3104 525-1673 48T59 NVRAM 80xxxxxx
    Input Device
    Option # Manufacturing
    Part #
    Description
    X180A 595-1865 SunButtons 32-key function I/O device
    Memory
    Option # Manufacturing
    Part #
    Description
    X6739A 375-0086 64MB PCI Fast Write Cache
    X7002A 501-2622 32MB DIMM
    X7003A 501-2480 64MB DIMM
    X7004A 501-3136 128MB DIMM
    X7005A 501-6005 256 MB DIMM
    n/a 501-5896 256 MB DIMM w/ GAL
    n/a 501-6056 256MB DIMM w/ GAL
    Miscellaneous
    Option # Manufacturing
    Part #
    Description
    X2132A 375-3051 SunPCi IIpro 733MHz coprocessor card
    X2134A 370-6200 Rear Guide Kit
    375-3116 SunPCi III 1.4GHz Co-Processor Card, 256MB memory
    X2136A 370-6200 Rear Guide Kit
    375-3203 SunPCi IIIpro 1.6GHz Co-Processor Card, 256MB memory
    X496A 501-2592 Audio Module
    X7042A 370-4294 SunPCi II 128MB memory expansion
    X7044A 370-4295 SunPCi II 256MB memory expansion
    X7045A 370-4430 SunPCi IIpro 512MB memory expansion
    X7066A 370-5463 SunPCi III 256MB SODIMM memory expansion
    X7067A 370-5967 SunPCi III 512MB SODIMM memory expansion
    X9690A 595-4428 Ultra Enterprise 450 Rack Mount Kit
    Power
    Option # Manufacturing
    Part #
    Description
    X3870A 300-1322 45 Watt DC-DC Converter
    X9682A 300-1359 Zytec 605 Watt Power Supply
    n/a 370-2160 AC Line Filter
    n/a 501-3100 DC Power Distribution Board
    Rack
    Option # Manufacturing
    Part #
    Description
    SG-XARY030A 595-4706 72 inch Sun StorEdge Expansion Cabinet
    Removable Media
    Option # Manufacturing
    Part #
    Description
    X6005A 370-2730 Manual Eject Triple Density Floppy
    X6107A 370-3280 4-8 GB 1/4″ SLR Tape Drive
    X6168A 390-0025 10X DVD-ROM Drive
    X6213A 370-2882 7-14GB 8 mm Tape Drive (Medium Grey Bezel)
    X6286A 370-2376 12-24GB 4 mm DDS-3 Tape Drive (Medium Grey Bezel)
    X6295A 390-0028 20-40GB 4 mm DDS-4 Tape Drive (Medium Grey Bezel)
    n/a 370-2817 SunCD 12 CD-ROM
    n/a 370-3416 SunCD 32 CD-ROM
    SCSI
    Option # Manufacturing
    Part #
    Description
    SG-XPCI2SCSI-LM320 375-3191 PCI/PCI-X Dual Ultra320 SCSI Adapter
    X1032A 501-5656 Single-Ended Ultra/Wide SCSI/FastEthernet (SunSwift PCI)
    X2222A 501-5727 Dual FastEthernet / Dual SCSI PCI Adapter
    X4422A 501-6635 Dual GigabitEthernet / Dual SCSI PCI Adapter
    X6540A 375-0005 Dual Single-Ended Ultra/Wide SCSI (PCI)
    X6541A 375-0006 Dual Differential Ultra/Wide SCSI (UDWIS/P)(HVD)
    X6542A 375-0078 SCSI RAID Controller (SRC/P)
    X6600A 375-0005 Dual Single-Ended Ultra/Wide SCSI (PCI)
    501-4189 8-Slot SCSI Disk Backplane
    X6601A 375-0005 Dual Single-Ended Ultra/Wide SCSI (PCI)
    501-5274 8-Slot SCSI Disk Backplane
    X6602A 375-0078 SCSI RAID Controller (SRC/P)
    501-5274 8-Slot SCSI Disk Backplane
    X6758A 375-3057 PCI Dual Ultra3 SCSI Host Adapter (LVD)
    n/a 501-3128 Removable Media Backplane
    n/a 501-4148 4-Slot SCSI Disk Backplane
    Switch/Hub
    Option # Manufacturing
    Part #
    Description
    X6746A Redundant FC 8-port Switch Option (two 8-port switches)
    540-4372 StorEdge Network FC Switch-8
    System Board
    Option # Manufacturing
    Part #
    Description
    n/a 501-2996 0MB FRU with 2MB Cache (250/300MHz)
    n/a 501-5270 0MB FRU with 4MB Cache (250/300/400MHz)
    n/a 501-5672 0MB FRU with 8MB Cache (250/300/400MHz)
    n/a 501-5673 0MB FRU with 8MB Cache (250/300/400/480MHz)

    Industry Leading Quality, Support and Integrity

    Quality Inspection Checklist
    Before it leaves our facility, every used and refurbished item is thoroughly inspected by our certified technicians and undergoes our exclusive Quality Inspection Checklist to ensure 100% satisfaction guarantee.

    Greentec Systems is a leading provider
    For server, networking and storage equipment. We have an extensive array of inventory of IBM Servers & Storage, Sun Servers & Storage, Cisco Networking (Switches, Routers, Security), and NetApp Storage (disk shelves, disk drives, Filers, NearStore, NetCache). If you don’t see the item or product you require please contact us.

    Have this equipment to sell?
    Depending on the age and condition of the equipment, there is a very good likelihood that we will be able to offer you cash or trade-in credit for other IT hardware. If the equipment is very old we can also assist you with properly decommissioning that gear in the most environmentally friendly way possible.

    Questions?
    For more information please contact 888.333.7388, or fill out the quote from above. We’d love to hear from you.

    Request Quote
    Greentec Systems We geek out helping you with your IT infrastructure.
    Request a quote or product information
    Send
