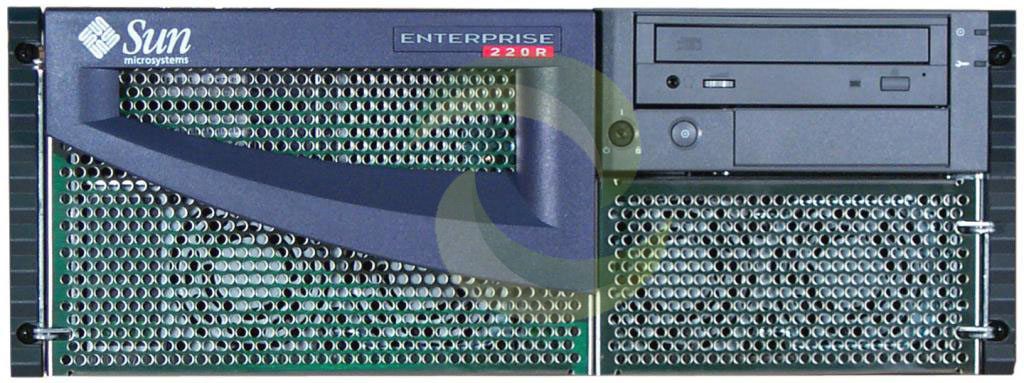

Oracle Sun 220R Server

Oracle Sun 220R Server Oracle Sun 220R Server Sun Servers SUN ENTERPRISE 220R copy 1024x383

REQUEST A PRICE QUOTE:

Name*

Phone

Details*





Processor



Number Up to two
Architecture 360- or 450-MHz UltraSPARC[tm]-II
Memory management MMU with 64 I-TLB entries and 64 D-TLB entries, 8192 hardware-supported contexts
Cache memory 16-KB data and 16-KB instruction on chip per processor4-MB external per processor
UPA Speed 112.5 MHz
Main Memory



Capacities 16 DIMM module slotsInstall SIMMs in sets of four. 64-, and 128-MB DIMM expansion

128 MB to 2 GB total memory capacity (with 128-MB DIMMs, in pairs)

Memory type 60-ns memory modules
Datapath 576 bits wide
Standard Interfaces



Ethernet One ethernet/fast ethernet (10BASE-T/100BASE-T) twisted-pair standard connector (RJ-45) or one MII for external transceiver connection
Keyboard and mouse One standard keyboard/mouse port (mini DIN-8)
Parallel One Centronics compatible parallel port (DB25); ECP mode capable
PCI Four full-size slots compliant with PCI specification version 2.1:
  • One slot operating at 33- or 66-MHz, 32- or 64-bit data bus width, 3.3 volt
  • Three slots operating at 33 MHz, 32- or 64-bit data bus width, 5 volt
SCSI One 40MB/sec, 68-pin ,Ultra SCSI (SCSI-3), 2 channels (synchronous)
Serial Two RS-232C/RS423 serial ports (DB25)
Internal Mass Storage



Disks Up to two 3.5-x 1-in or x 1.6-in. hot-pluggable disks; 9.1-GB, 18.2-GB, or 36.4-GB
CD-ROM/DVD-ROM 32x 644-MB SCSI CD-ROM10X DVD-ROM
Tape Optional 12-to 24-GB DDS-3 4mm; 20-to 40-GB 8-mm
Environment



AC input 100 – 240 VAC, 47 – 63 Hz, 6.3 A(max)
Input power 610 W
Heat output 2080 BTU/hr
Temperature1 Operating: 5° C to 35deg; C (41deg; F to 95deg; F)
Nonoperating: -20deg; C to 60deg; C (-4deg; F to 140deg; F)
Humidity Operating: 20% to 80% relative humidity, noncondensing
Nonoperating: 5% to 93% relative humidity, noncondensing
Altitude Operating: 3000 m (10,000 ft.)
Nonoperating: 12,000 m (40,000 ft.)
Vibration Operating: 0.2G peak, 5 – 500 Hz (swept sine)
0.0002 G2/Hz, 5 – 500 Hz (random)
vertical axis only (castered configuration), vertical and horizontal axes (foot glide configuration)
Nonoperating: 1G peak, 5 – 500 Hz (swept sine)
0.002 G2/Hz, 5 – 500 Hz (random)
3 perpendicular axes
Shock Operating: 4G peak, 11 milliseconds half-sine pulse
Nonoperating: 15G peak, 11 milliseconds half-sine pulse
Number of Cords 1 per power supply; 2 (max)
1 The front and rear doors of the cabinet must be 63% open for adequate air flow.
Regulations
Meets or exceeds the following requirements:



Safety UL 1950, UL Canada C22.2 No. 950, TUV EN 60950, UL CB Scheme to IEC 950 with full deviations
RFI/EMI FCC Class A, DOC Class B, VCCI Class A, EN 55022 Class B
Immunity EN 50082-1
X-ray DHHS 21 Subchapter J; PTB German X-ray Decree
Dimensions and Weights



Height 17.8 cm (7.0 in.)
43.8 cm (17.25 in.) shipping
Width 43.8 cm (17.25 in.)
60.02 cm (23.63 in.) shipping
Depth 69.2 cm (27.25 in.)
93.98 cm (37.0 in.) shipping
Weight 29.5 kg (65 lb.)
38.6 kg (85 lb.) shipping
Power cord 1.99 m (6.56 ft.)
Boot PROM
Socket Manufacturing
Part #
Patch
U2703 525-1701 106455
CPU Module
Option # Manufacturing
Part #
Description
X1192A 501-5552 360MHz UltraSPARC II Module
4MB Cache Sapphire-Black
X1195A 501-6071 450MHz UltraSPARC II Module
n/a 501-5344 450MHz UltraSPARC II Module
4MB Cache Sapphire-Black
n/a 501-5539 450MHz UltraSPARC II Module
n/a 501-5687 450MHz UltraSPARC II Module
n/a 501-5999 450MHz UltraSPARC II Module
n/a 501-6058 450MHz UltraSPARC II Module
4MB Cache Blaze
n/a 501-6865 450MHz UltraSPARC II Module
4MB Cache Sapphire-Black
Communication
Option # Manufacturing
Part #
Description
X1066A 501-3028 SunATM-155/MFiber PCI 3.0
X1067A 501-3027 SunATM-155/UTP PCI 3.0
X1068A 501-3029 SunATM-622/MFiber PCI 3.0
X1133A 375-0130 Crypto Accelerator I
X1152A 370-2811 FDDI/P SAS 2.0
X1153A 370-2812 FDDI/P DAS 2.0
X1154A 375-0001 Token Ring Interface PCI (TRI/P) 4.0
X1155A 370-2728 High Speed Serial Interface PCI (HSI/P) 2.0
X1156A 370-2810 Serial Asynchronous Interface PCI (SAI/P) 2.0
X1157A 501-3028 SunATM-155/MFiber PCI 4.0
X1158A 501-3027 SunATM-155/UTP PCI 4.0
X1159A 501-3029 SunATM-622/MFiber PCI 4.0
X2154A 375-0073 Token Ring Interface (TRI/P) 5.0
X2156A 375-0100 Serial Asynchronous Interface PCI (SAI/P) 3.0
X6762A 375-3089 Crypto Accelerator 1000
Disks
Option # Manufacturing
Part #
Description
X5229A 540-3704 9.1GB – 7200 RPM, Disk Assembly with 1 bracket, and 1 of the following disks:
  • 370-3404
  • IBM DDRS-39130
    (9.1GB – 7200 RPM – SCSI Disk)
  • 370-3413
  • Fujitsu MAB3091SC [MAB3091S SUN9.0G]
    (9.1GB – 7200 RPM – SCSI Disk)
  • 370-3595
  • Seagate ST39173WC
    (9.1GB – 7200 RPM – SCSI Disk)
  • 390-0004
  • Fujitsu MAE3091LC [MAE3091L SUN9.1GB]
    (9.1GB – 7200 RPM – SCSI Disk)
  • 390-0007
  • IBM DNES-309170 [DNES30917SUN9.0G]
    (9.1GB – 7200 RPM – SCSI Disk)
  • 540-3024
  • 1″ SPUD Bracket, RoHS:Y
X5234A 540-3881 9.1GB – 10000 RPM, Disk Assembly with 1 bracket, and 1 of the following disks:
  • 370-3649
  • Seagate ST39102LC [ST39102LCSUN9.0G]
    (9.1GB – 10000 RPM – SCSI Disk)
  • 390-0005
  • Fujitsu MAG3091LC [MAG3091L SUN9.0G]
    (9.1GB – 10000 RPM – SCSI Disk)
  • 390-0009
  • Seagate ST39103LC [ST39103LCSUN9.0G]
    (9.1GB – 10000 RPM – SCSI Disk)
  • 390-0037
  • Seagate ST39204LC [ST39204LCSUN9.0G]
    (9.1GB – 10000 RPM – SCSI Disk)
  • 540-3024
  • 1″ SPUD Bracket, RoHS:Y
X5237A 540-4177 18.2GB – 10000 RPM, Disk Assembly with 1 bracket, and 1 of the following disks:
  • 390-0002
  • Seagate ST318203LC [ST318203LSUN18G]
    (18.2GB – 10000 RPM – SCSI Disk)
  • 390-0006
  • Fujitsu MAG3182LC [MAG3182L SUN18G]
    (18.2GB – 10000 RPM – SCSI-Disk)
  • 390-0038
  • Seagate ST318404LC [ST318404LCSUN18G]
    (18.2GB – 10000 RPM – SCSI Disk)
  • 390-0043
  • Fujitsu MAJ3182MC [MAJ3182M SUN18G]
    (18.2GB – 10000 RPM – SCSI Disk)
  • 390-0048
  • IBM DDYS-T18350 [DDYST1835SUN18G]
    (18.2GB – 10000 RPM – SCSI Disk)
  • 390-0066
  • Fujitsu MAN3184MC [MAN3184M SUN18G]
    (18.2GB – 10000 RPM – SCSI Disk)
  • 390-0085
  • Seagate ST318305LC [ST318305LSUN18G]
    (18.2GB – 10000 RPM – SCSI Disk)
  • 540-3024
  • 1″ SPUD Bracket, RoHS:Y
X5242A 540-4521 36.4GB – 10000 RPM, Disk Assembly with 1 bracket, and 1 of the following disks:
  • 390-0050
  • Seagate ST336704LC [ST336704LSUN36G]
    (36.4GB – 10000 RPM – SCSI Disk)
  • 390-0051
  • Fujitsu MAJ3364MC [MAJ3364M SUN36G]
    (36.4GB – 10000 RPM – SCSI Disk)
  • 390-0065
  • Fujitsu MAN3367MC [MAN3367M SUN36G]
    (36.4GB – 10000 RPM – SCSI Disk)
  • 390-0069
  • Seagate ST336605LC [ST336605LSUN36G]
    (36.4GB – 10000 RPM – SCSI Disk)
  • 390-0109
  • Seagate ST336607LC [ST336607LSUN36G]
    (36.4GB – 10000 RPM – SCSI Disk)
  • 390-0110
  • Fujitsu MAP3367NC [MAP3367N SUN36G]
    (36.4GB – 10000 RPM – SCSI Disk)
  • 390-0111
  • Hitachi DK32EJ-36NC [DK32EJ36NFSUN36G]
    (36.4GB – 10000 RPM – SCSI Disk)
  • 390-0156
  • Fujitsu MAP3367NC [MAP3367N SUN36G]
    (36.4GB – 10000 RPM – SCSI Disk)
  • 540-3024
  • 1″ SPUD Bracket, RoHS:Y
Ethernet
Option # Manufacturing
Part #
Description
X4445A 501-6738 Quad GigaSwift PCI-X Ethernet (QGE-X), RoHS:Y
X1033A 501-5019 Sun FastEthernet PCI Adapter (FE/P) 2.0
X1034A 501-5406 Quad FastEthernet PCI (QFE/P)
X1141A 501-4373 Gigabit Ethernet PCI (GBE/P) 2.0
X1150A 501-5902 Sun GigaSwift Ethernet UTP (Copper)
X1151A 501-5524 Sun GigaSwift Ethernet MMF (Fiber)
X2069A 501-5426 Gigabit Ethernet FC-AL/P
X3150A 501-5902 Sun GigaSwift Ethernet UTP (Copper)
X3151A 501-5524 Sun GigaSwift Ethernet MMF (Fiber)
X4444A 501-6522 Quad GigaSwift Ethernet UTP (QGE)
X467A 595-3780 MII to AUI Converter
Fan
Option # Manufacturing
Part #
Description
X9820A 540-5088 Fan Tray Assembly with 3× 120mm Fans
n/a 540-4169 Fan Tray Assembly with 3× 120mm Fans (obsolete)
n/a 540-4434 Fan Tray Assembly with 3× 120mm Fans
Fibre Channel
Option # Manufacturing
Part #
Description
SG-XPCI1FC-JF2 375-3156 JNI 2Gb PCI Single FC Host Adapter
SG-XPCI1FC-QF2 375-3102 2Gb PCI Single FC Host Adapter
SG-XPCI1FC-QL2 375-3383 2Gb PCI-X Single FC Host Adapter, RoHS:Y
SG-XPCI2FC-JF2 375-3157 JNI 2Gb PCI Dual FC Host Adapter
SG-XPCI2FC-QF2 375-3108 2Gb PCI Dual FC Host Adapter
  • 240-4839
  • Low Profile Bracket, RoHS:Y
X6727A 375-3030 PCI Dual FC Host Adapter+, RoHS:YL
X6729A 375-0040 Single Loop PCI FC-AL Host Adapter (FC100/P)
X6767A 375-3102 2Gb PCI Single FC Host Adapter
X6768A 375-3108 2Gb PCI Dual FC Host Adapter
  • 240-4839
  • Low Profile Bracket, RoHS:Y
X6799A 375-3019 PCI Single FC Host Adapter
Graphics
Option # Manufacturing
Part #
Description
X3668A 370-3753 PGX32 8/24-Bit Color Frame Buffer
X3768A 370-4362 PGX64 8/24-Bit Color Frame Buffer
IDPROM
Socket Manufacturing
Part #
Component Type Host ID
U2706 525-1430 48T59 NVRAM 80xxxxxx
Memory
Option # Manufacturing
Part #
Description
X7002A 501-2622 32MB DIMM
X7003A 501-2480 64MB DIMM
X7004A 501-3136 128MB DIMM
Miscellaneous
Option # Manufacturing
Part #
Description
X2132A 375-3051 SunPCi IIpro 733MHz coprocessor card
X2134A 370-6200 Rear Guide Kit
375-3116 SunPCi III 1.4GHz Co-Processor Card, 256MB memory
X2136A 370-6200 Rear Guide Kit
375-3203 SunPCi IIIpro 1.6GHz Co-Processor Card, 256MB memory
X7042A 370-4294 SunPCi II 128MB memory expansion
X7044A 370-4295 SunPCi II 256MB memory expansion
X7045A 370-4430 SunPCi IIpro 512MB memory expansion
X7066A 370-5463 SunPCi III 256MB SODIMM memory expansion
X7067A 370-5967 SunPCi III 512MB SODIMM memory expansion
Power
Option # Manufacturing
Part #
Description
X9684A 300-1449 Lucent 380 Watt Power Supply
n/a 300-1455 VRM DC-DC Converter (E220R)
n/a 375-0094 VRM Interposer Board (E220R)
n/a 501-5506 DC Power Distribution Board
Rack
Option # Manufacturing
Part #
Description
SG-XARY030A 595-4706 72 inch Sun StorEdge Expansion Cabinet
Removable Media
Option # Manufacturing
Part #
Description
X6168A 390-0025 10X DVD-ROM Drive
X6234A 370-2184 20-40GB 8 mm Tape Drive (Medium Grey Bezel)
X6286A 370-2376 12-24GB 4 mm DDS-3 Tape Drive (Medium Grey Bezel)
X6295A 390-0028 20-40GB 4 mm DDS-4 Tape Drive (Medium Grey Bezel)
n/a 370-3416 SunCD 32 CD-ROM
SCSI
Option # Manufacturing
Part #
Description
SG-XPCI2SCSI-LM320 375-3191 PCI/PCI-X Dual Ultra320 SCSI Adapter
X1032A 501-5656 Single-Ended Ultra/Wide SCSI/FastEthernet (SunSwift PCI)
X2222A 501-5727 Dual FastEthernet / Dual SCSI PCI Adapter
X4422A 501-6635 Dual GigabitEthernet / Dual SCSI PCI Adapter
X6540A 375-0005 Dual Single-Ended Ultra/Wide SCSI (PCI)
X6541A 375-0006 Dual Differential Ultra/Wide SCSI (UDWIS/P)(HVD)
X6542A 375-0078 SCSI RAID Controller (SRC/P)
X6758A 375-3057 PCI Dual Ultra3 SCSI Host Adapter (LVD)
n/a 501-5505 2-Slot SCSI Disk Backplane
Switch/Hub
Option # Manufacturing
Part #
Description
X6746A Redundant FC 8-port Switch Option (two 8-port switches)
540-4372 StorEdge Network FC Switch-8
System Board
Option # Manufacturing
Part #
Description
n/a 501-5606 0MB FRU

Industry Leading Quality, Support and Integrity

Quality Inspection Checklist
Before it leaves our facility, every used and refurbished item is thoroughly inspected by our certified technicians and undergoes our exclusive Quality Inspection Checklist to ensure 100% satisfaction guarantee.

Greentec Systems is a leading provider
For server, networking and storage equipment. We have an extensive array of inventory of IBM Servers & Storage, Sun Servers & Storage, Cisco Networking (Switches, Routers, Security), and NetApp Storage (disk shelves, disk drives, Filers, NearStore, NetCache). If you don’t see the item or product you require please contact us.

Have this equipment to sell?
Depending on the age and condition of the equipment, there is a very good likelihood that we will be able to offer you cash or trade-in credit for other IT hardware. If the equipment is very old we can also assist you with properly decommissioning that gear in the most environmentally friendly way possible.

Questions?
For more information please contact 888.333.7388, or fill out the quote from above. We’d love to hear from you.

Request Quote
Greentec Systems We geek out helping you with your IT infrastructure.
Request a quote or product information
Send
