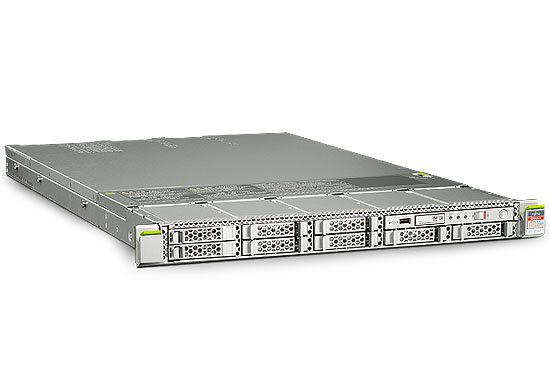

The Fujitsu M10-1 server is a space saving, entry-level server with high performance, high reliability, and no-cost virtualization ideal for data center integration and virtualization
|Number||One 16-Core (one socket) or One 8-Core (one socket)|
|Architecture||Type: SPARC64 16-Core Processor or SPARC64 X+ 8-Core Processor|
|CPUs original M10-1||SPARC 2.8GHz 16-Core (22MB L2 – 22way)|
|CPUs M10-1+||SPARC 3.2GHz 16-Core (22MB L2 – 22way)|
|CPUs M10-1+||SPARC 3.7GHz 8-Core (24MB L2)|
|Note:||There is no upgrade path from the original M10-1 to the M10-1+ or M10-1+ (3.7GHz 8-Core)|
Total DIMM slots: 16
DIMM type: DDR3 1066MHz or 1333MHz Registered DIMMs
DIMM size: 32GB 1333MHz or 8GB, 16GB 1066MHz
Maximum capacity: 512GB (when configured with 32GB DIMMs)
|Standard Integrated Interfaces|
|Network||Four 1GbE Ethernet Ports|
|Service Processor||One dedicated TIA/EIA-232-F asynchronous RJ45 port
One USB Maintenance port
Two 1GbE Ethernet Ports
|SAS||One 6Gbps channel SAS interface|
Front: One USB 2.0 ports
Rear: One USB 2.0 ports
|PCI Expansion Slots||Three low profile PCI Express 3.0 slots (3 x8 electrical/mechanical)|
|Internal Mass Storage|
|Disks||Up to eight front accessible disk bays with 2.5″ SAS disks or eight solid-state drives (SSDs)
|Dual redundant, hot swappable power supplies
Maximum AC input = Max 763W (at 100-120VAC), Max 740W (at 200-240VAC)
|AC power||100-120 / 200-240 VAC (1-phase)|
|Temperature||Single, non-rack system:
Operating: 5° C to 35° C (41° F to 95° F)
Nonoperating: -25° C to 60° C (-13° F to 140° F)(unpacked)
|Humidity||Single, non-rack system:
Operating: 20% to 80% relative humidity noncondensing
Nonoperating: 20% to 80% relative humidity noncondensing (unpacked)
|Altitude||Single, non-rack system:
Operating: up to 3000 m (9,843 ft.), maximum ambient temperature is derated by 1° C per 300 m above 900 m
Nonoperating: up to 12,000 m (40,000 ft.)
|Dimensions and Weight|
|Height||42.5 mm (1.67 in.)|
|Width||431 mm (16.97 in.)|
|Depth||721 mm (28.39 in.)|
|Weight||18 kg (39.68 lb.) maximum assuming PCI-Express card weighs 0.12 kg
(0.25 lb) each, and without the rack mounting slide rail kit installed.
